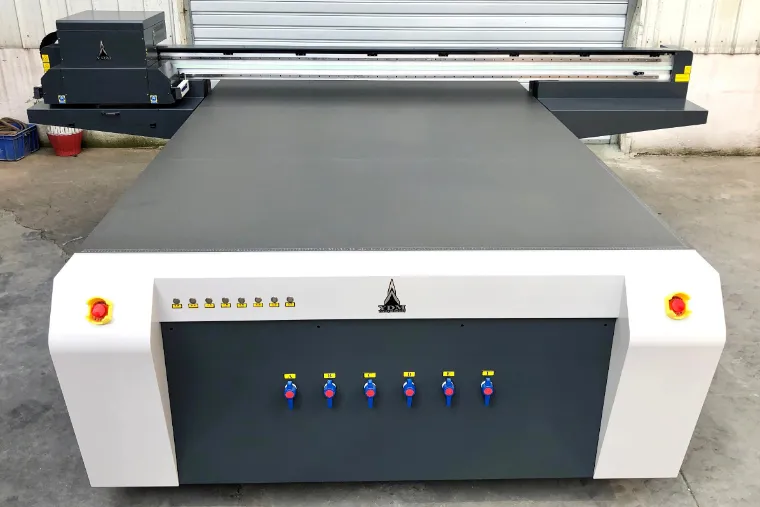

2m*3m Large Format Digital Glass Printing Machine UV Flatbed Printer

Product Description

**2m*3m Large Format Digital Glass Printing Machine UV Flatbed Printer**

2m*3m Large Format Digital Glass Printing Machine UV Flatbed Printer
Product Description

Technical Data	UV2030 Industrial series
Print Technology
Print Format	200 x 300 cm
Print Height	10 cm / 4 in ( Max. 40 cm / 16 in )
Head Model	Toshiba CE4, Auto Heating, 4~16 ph;Ricoh G5/G6,2-8ph
Color Set	CMYK+LM+LC+W+V; CMYK+W+V, CMYK+2W+2V; CMYK+W+CMYK
Control System	KNFUN, Toshiba Official Partner
RIP Software	UnitedFancy, Developed by Holland Aurelon
Print Direction	Uni / Bi-directional , Front / Rear Alternative
Resolution	4 PASS : 600 x 600 dpi 6 PASS : 600 x 900 dpi 8 PASS : 600 x 1200 dpi
Print Speed	Production mode: 15-18 sqm/h Quality mode: 12-15 sqm/h High resolution mode: 10-12 sqm/h
Machine Highlight
Heavy Duty Frame	Strengthened aluminum beam + Thicken steel base
Driving Mode	HIWIN linear rail + Servo motor + Lead screw + IGUS Drag chain
Protective Device	Anti-collision + Static eliminator
Work Table	Anodized aluminum table + Independent vacuum control
Ink System	Negative pressure Ink supply + White Ink stirring and circulation
Curing System	Imported UV lamp, 30000 Hours Lifespan + Water cooling Chiller
Height Detection	Automatic sensor
Others
Print Media	Glass, Ceramic, Acrylic, Metal, Leather, Plastic, Wood, PVC .. etc
PC configuration	Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G
Signal Transmission	Optical Fiber + USB 3.0
Color Control	Comply with ICC standards, With curve and density Adjustment function
File Format	TIFF/ JPEG/ POSTSCRIPT3/ PDF
Power Supply	AC220V,50/60HZ
Working Power	3.5 KW
Noise	Standby < 32 dB ; Working < 65 dB
Machine Size	4.6 m x 2 m x 1.45 m
Net Weight	1600 KG

2m*3m Large Format Digital Glass Printing Machine UV Flatbed Printer

YDM 2030 UV Printer with newest configuration
2030 uv printer equipped with 3500ml ink carriage with low ink warning system and white ink circuration&stiring system
2030 uv printer equipped with negative ink supply system,save your ink,and make printing work more frequently

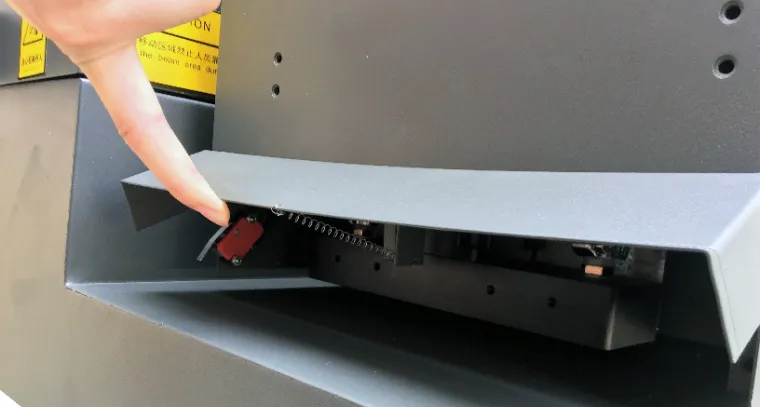

2030 uv printer equipped with anti-collision device for printhead

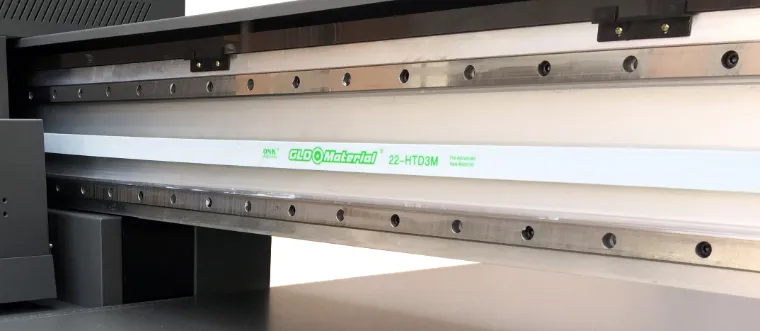

THKGuide Rail&ONK Belt for YDM 2030 UV Printer
Higher printing accuracy
Printing more stability

YDM 2030 UV Printer equipped with double static eliminators and anti-collision device
Printing on plastic material more frequency,avoid inks splashing when printing
printing work more safe and easier

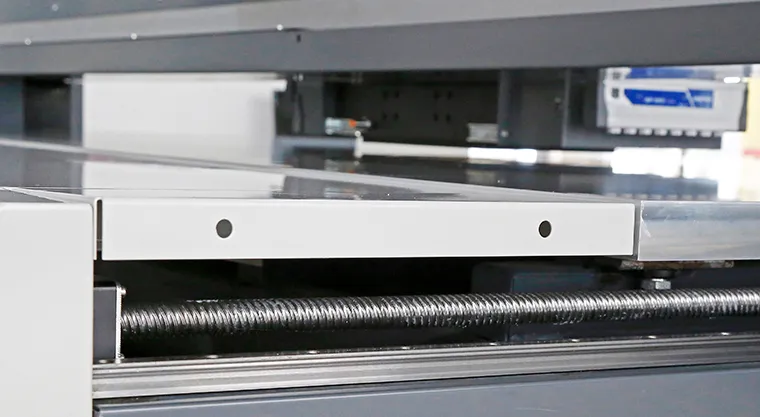

YDM 2030 UV Printer equipped with double lead ball screw instead of belt
Higher printing accuracy
Printing more stability

Printer Applications

2030 UV Printer is usually used in Advertising,decoration and other industry
2030 printing machine equipped with Ricoh G5/G6,or Toshiba CE4M printhead,12-15sqm/h,it can reach your mass production demand.
2030 inkjet printers is used to print on advertising signs,bill board,shoes,leather,acrylic,metal,glass,aluminum sheet,ceramic tiles,plywood,furniture and other materials.

2m*3m Large Format Digital Glass Printing Machine UV Flatbed Printer

Team&Certifications

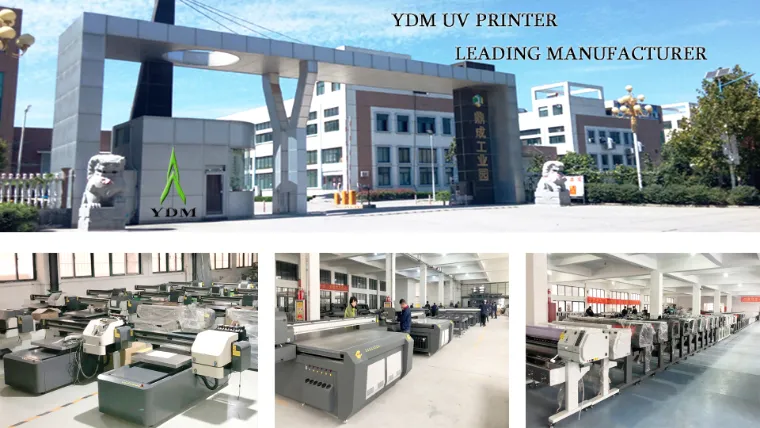

YDM as the leading manufacturer of Inkjet printers and uv printers with around 20's experience in China,we have a professional service team to fix the problem on time for our customers from all over the world.
YDM uv printers and inkjet printers already were certificated by CE,SGS,TUV officially
24 hours*7,professional service
