3.2m Eco Solvent Printer to Print on Sublimation Paper, Film
3.20m Eco Solvent Printer-Model: Eco 3201l Printing Width 3.2ml Double Heads Configuration. with one head or two heads are availablel Max. Resolution: 1440DPIl Speed: up to 32m2 per hourl MainTop Softwarel Intelligent Fan for Heating and Cooling fun.TWO 1.8M ROLLS Materials can be printed at s......
Send Inquiry
Product Description

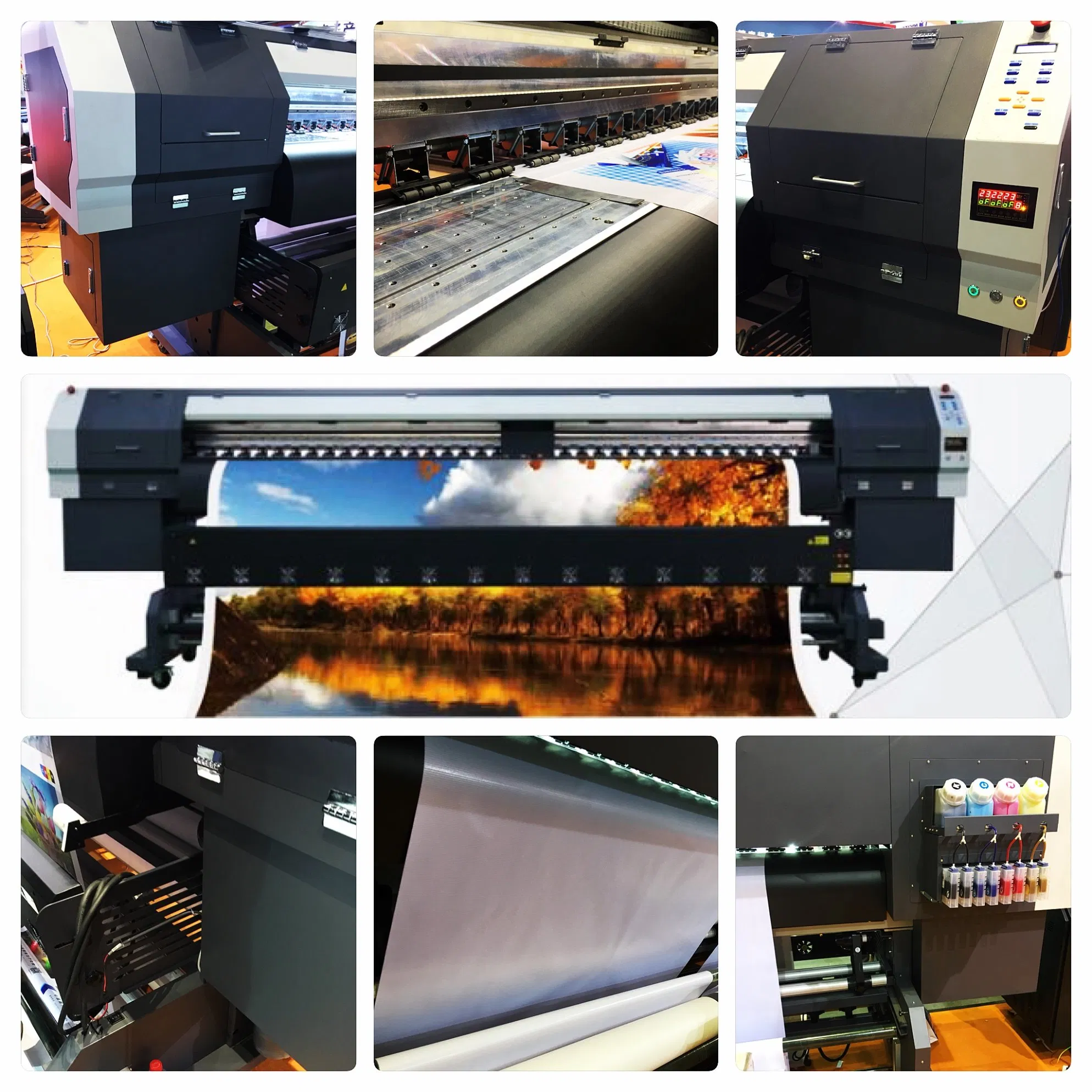

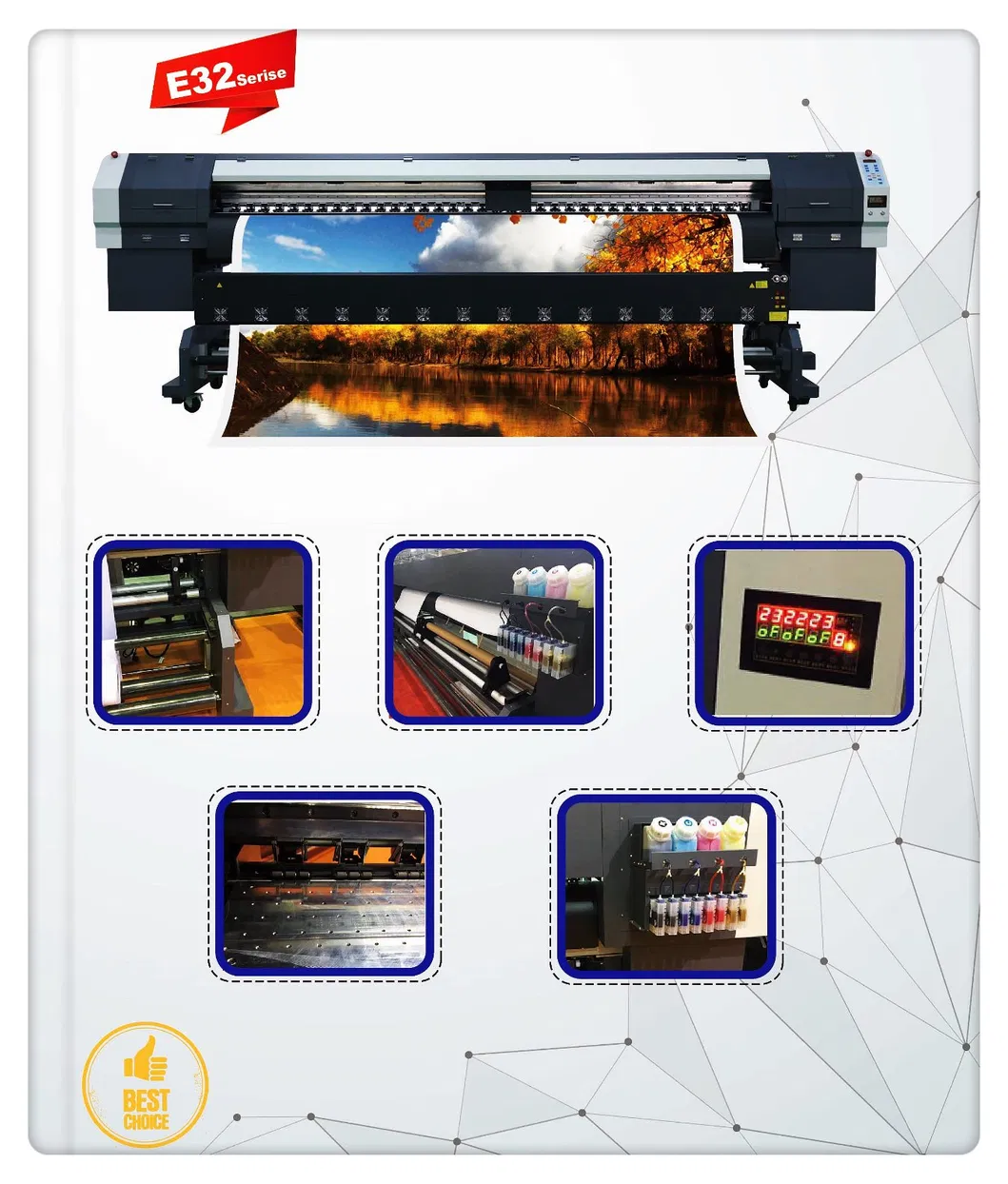

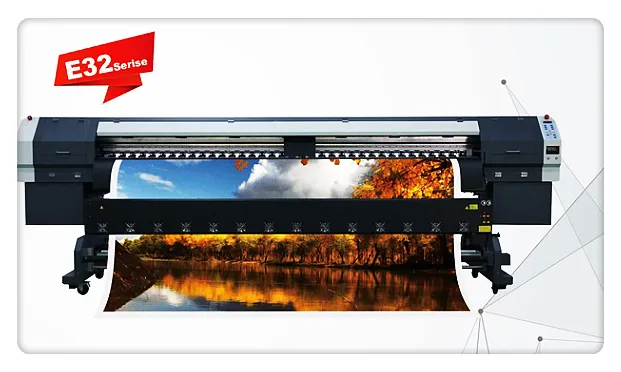

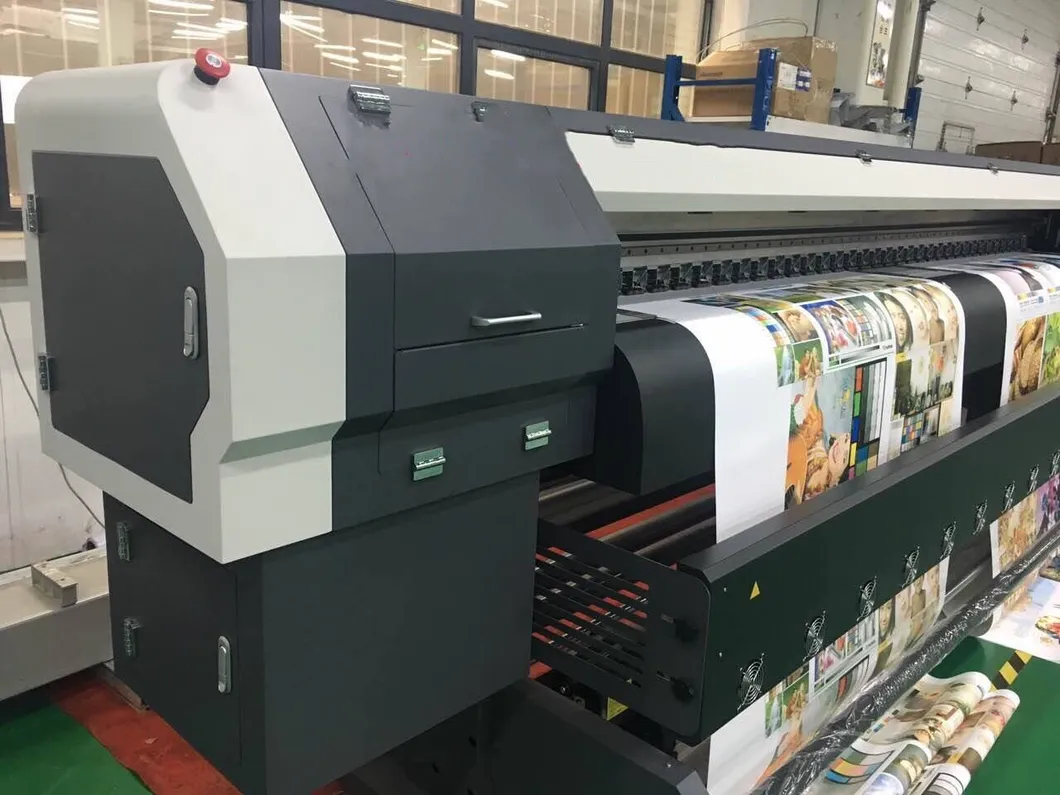

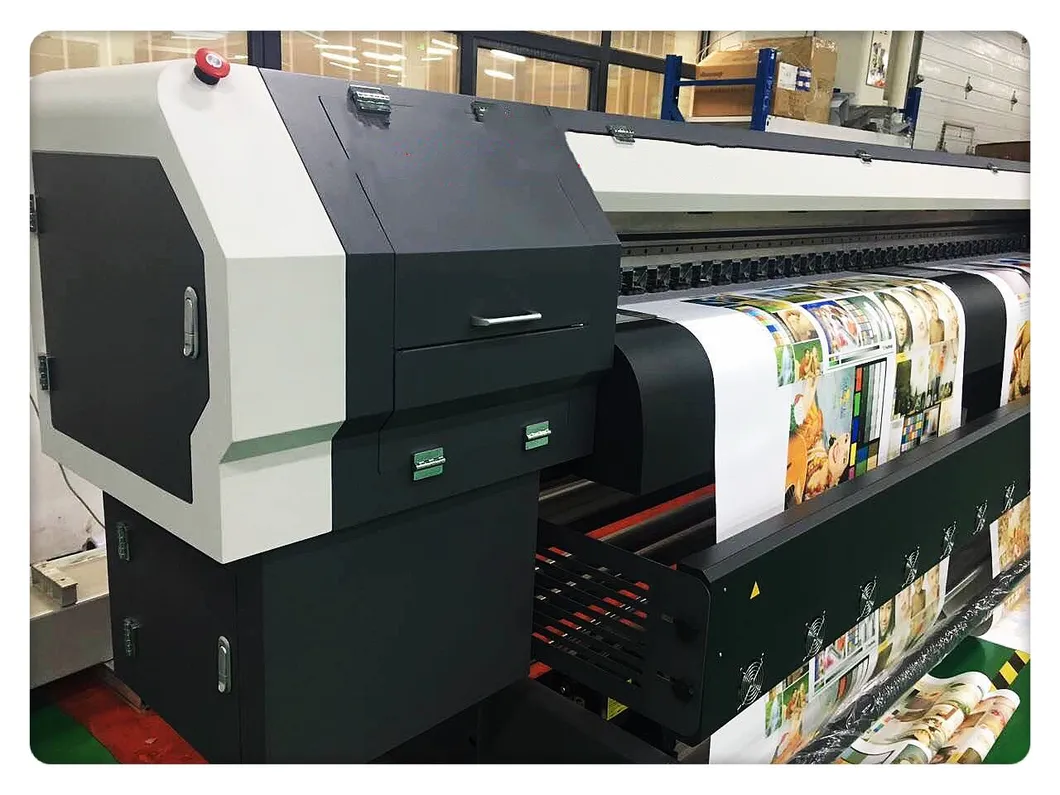

3.20m Eco Solvent Printer-Model: Eco 3201
l Printing Width 3.2m
l Double Heads Configuration. with one head or two heads are available
l Max. Resolution: 1440DPI
l Speed: up to 32m2 per hour
l MainTop Software
l Intelligent Fan for Heating and Cooling fun.

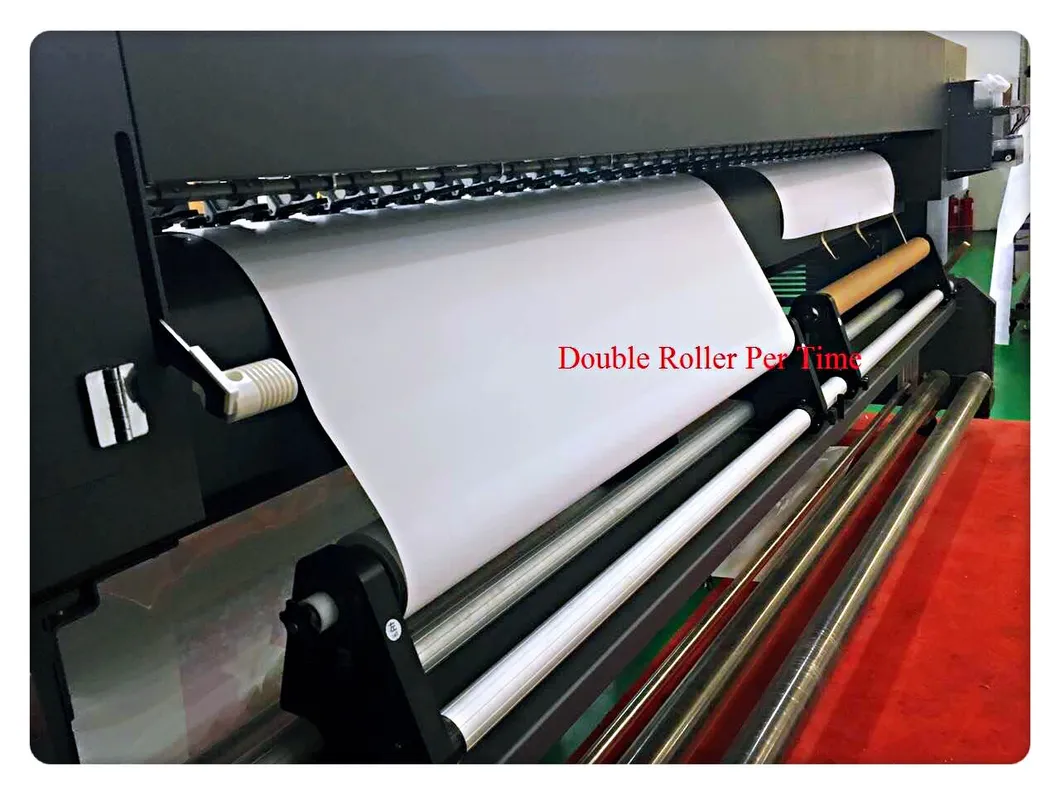

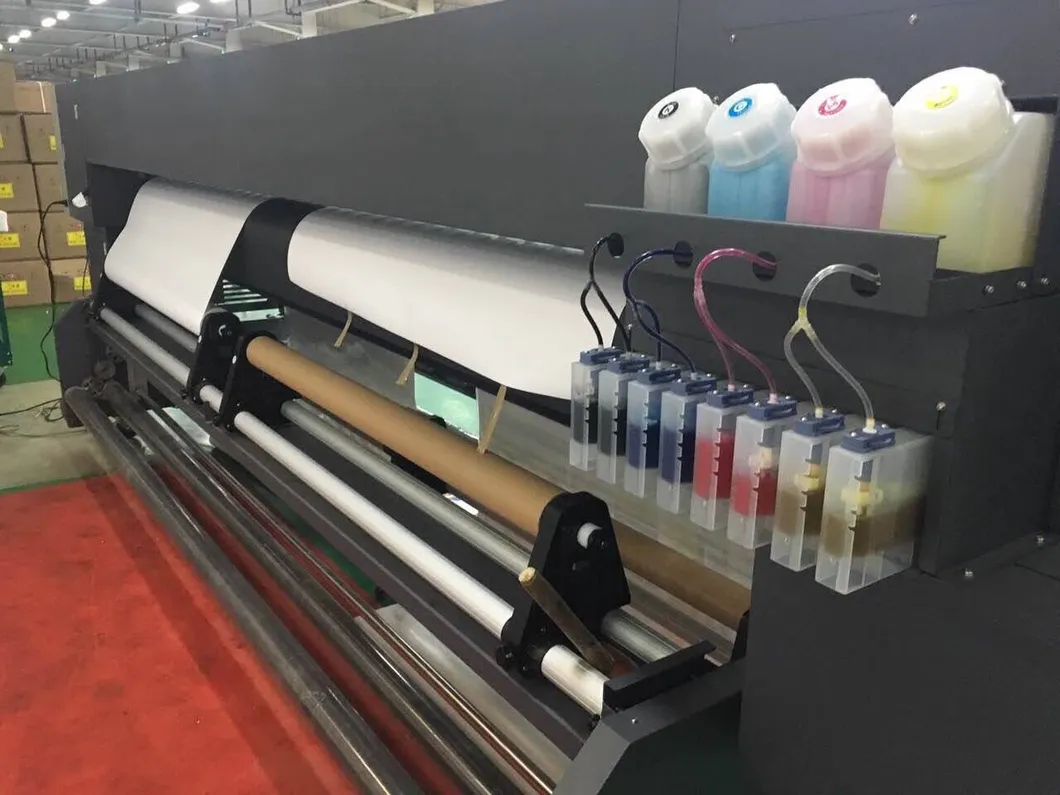

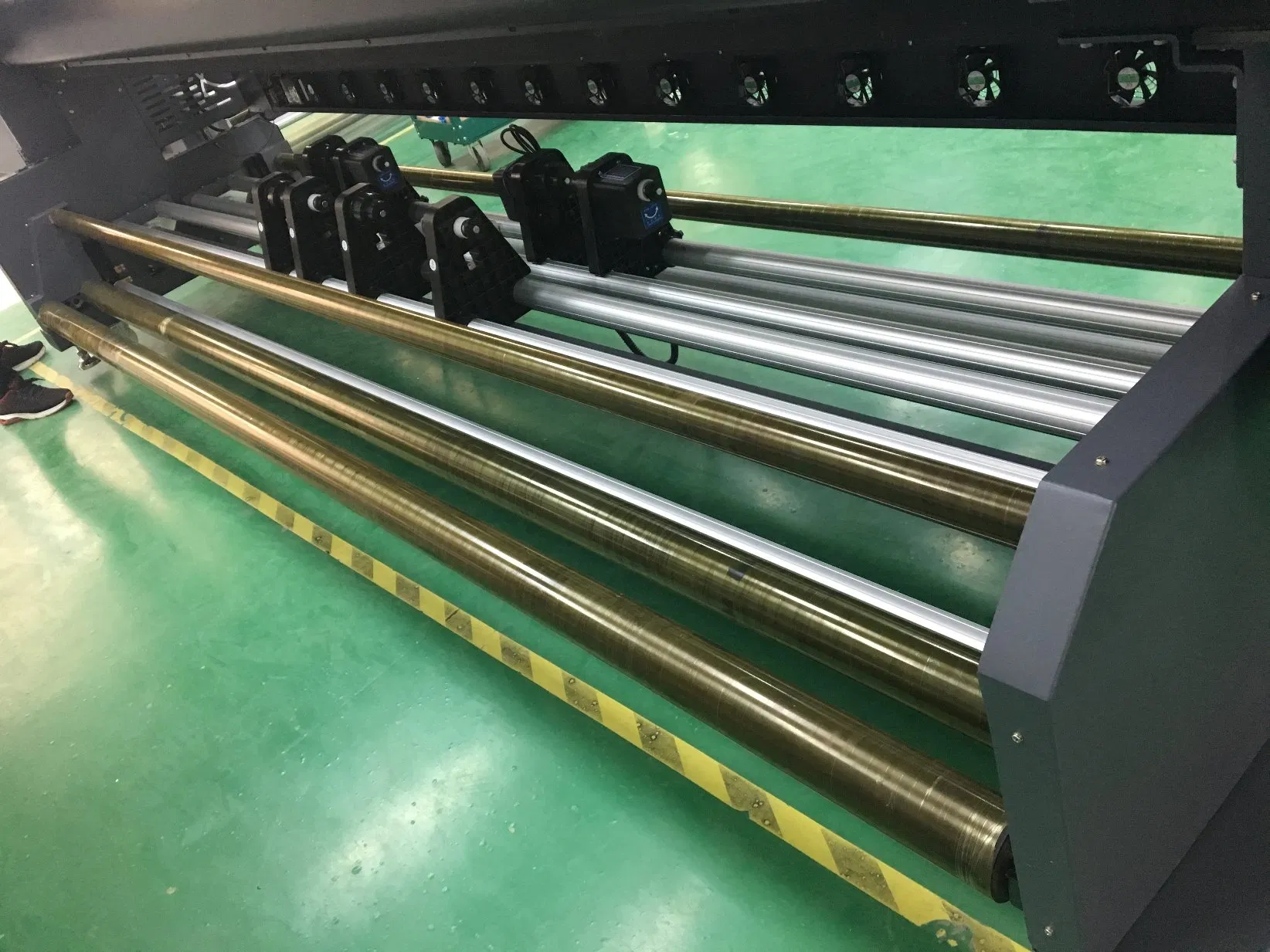

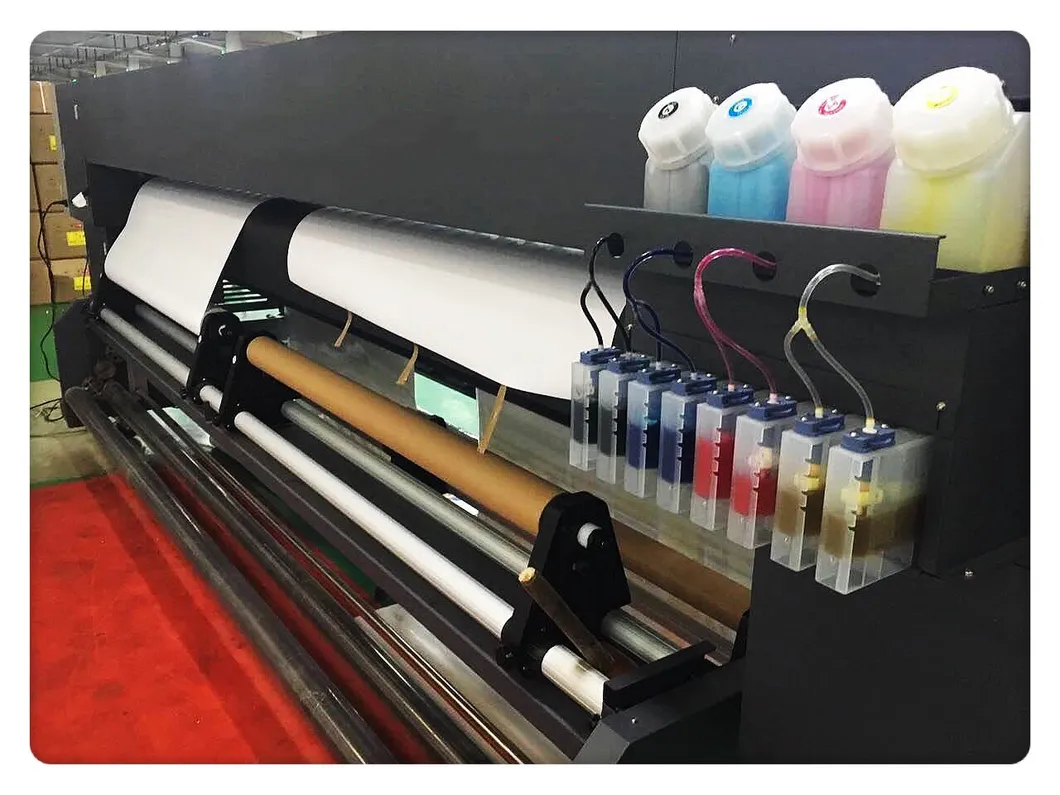

TWO 1.8M ROLLS Materials can be printed at same time. Save time, Save cost, Earn More Money.

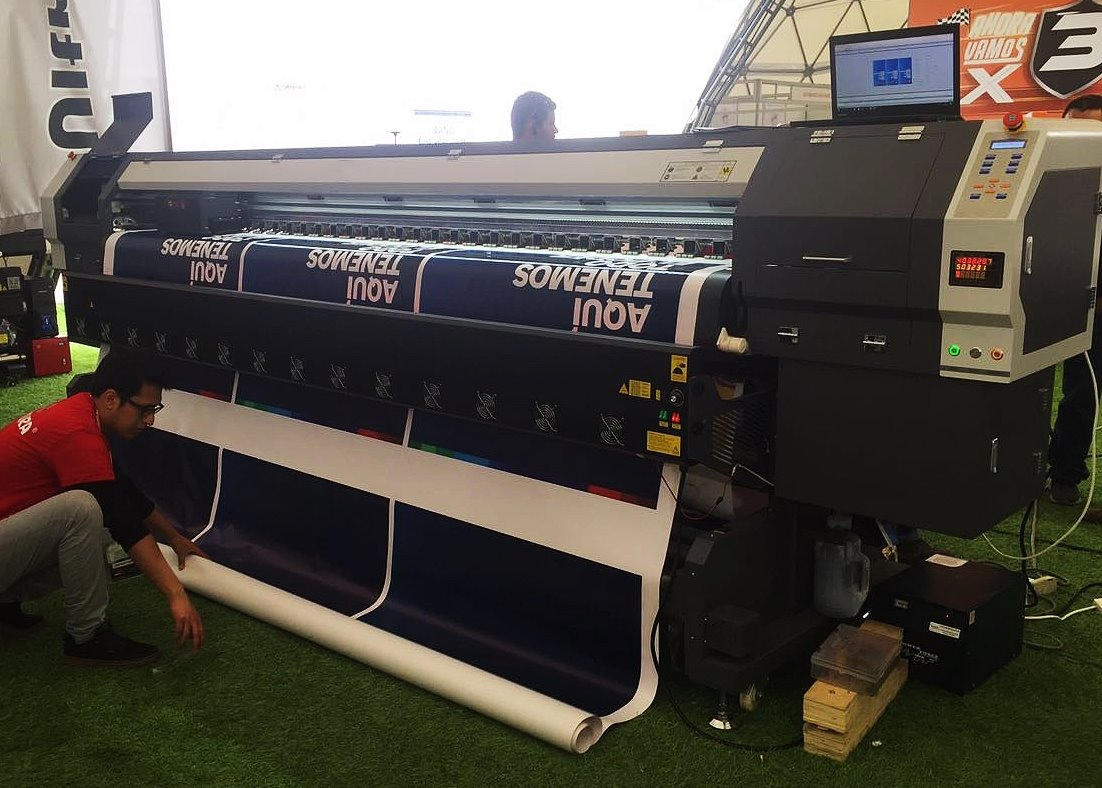

l For Advertising roll material printing, such as print image on flex, banner, sticker, vinyl, PP, film, wall paper, etc.
l You can put Double original Epson dx5 heads on printer for high production speed, also you can use one unit printhead on machine for print at beginning as to save cost(with two heads configuration with printer).
Main Products and Technical Support:
1) UV flatbed Printer ( to print images on metal, glass, aluminum, ceramic, wood board, wave board, etc);
2) Textile Printer ( to print on fabric) ;
3) Sublimation Printer ( on curtain, flag, umbrella, sport clothes material, etc);
4) UV roll to roll Printer ( with flatbed type is optional)
5) Eco solvent Printer (to print images on flex, banner, sticker, PP, film, etc);
6) Printing Ink, Spare Parts, Printheads, etc.;
7) Technical Support by E-mail, online(24/7/365), on-site, etc.
| Main Technical Specification | |
| Item | Model |
| E3202 | |
| Printhead | Epson Printhead |
| Printhead No. | 1 / 2 units |
| Print Size | 3200mm |
| Ink Type | Water based; Eco solvent |

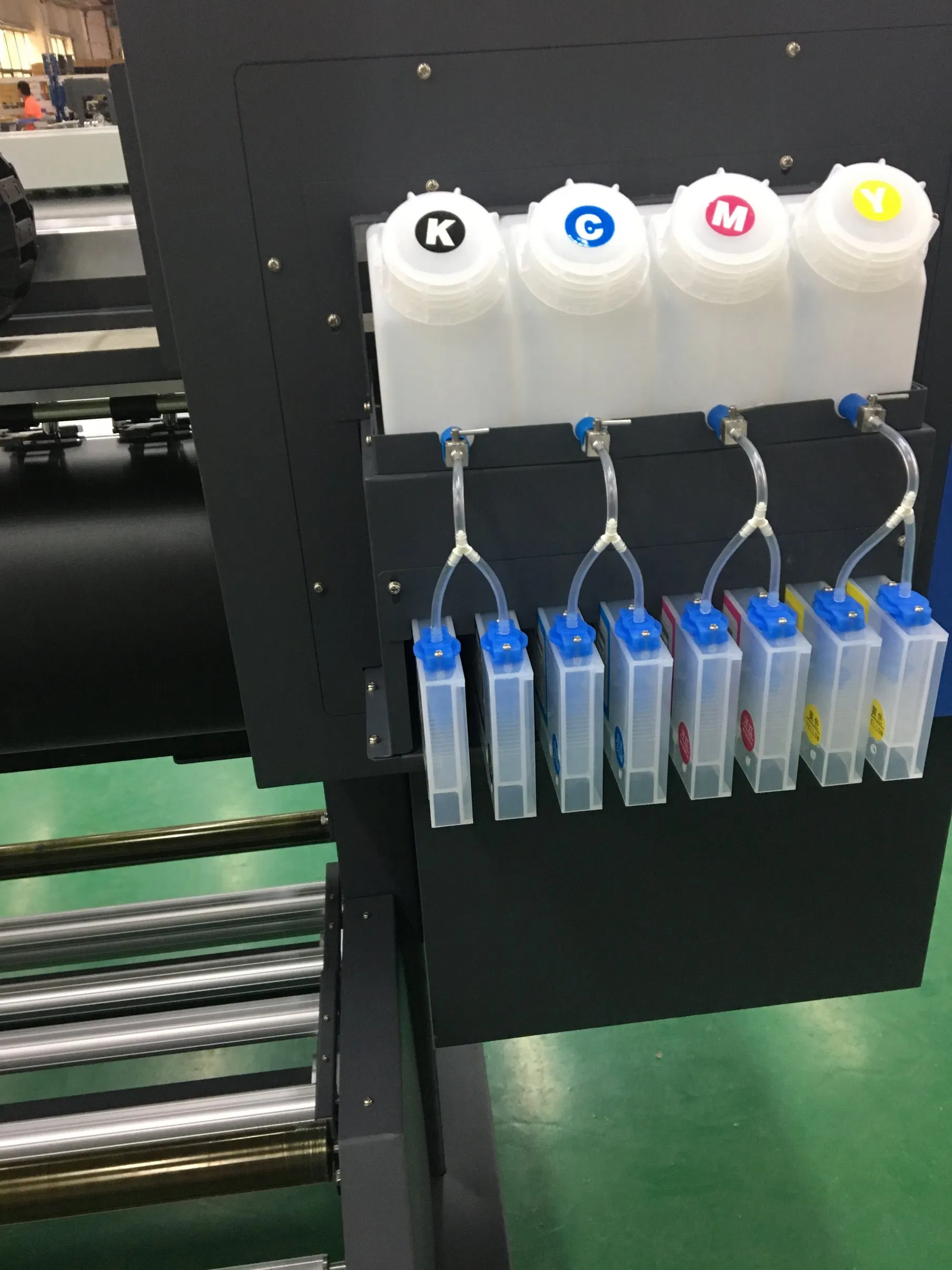

| Ink Color | C M Y K |
| Rip Software | Standard: MainTop. Optional: PhotoPrint. |
| Print File Forms | JPG, TIFF, PDF, JPEG, AI, etc. |
| Heating System | 3 Sections Heating |
| Media Type | Photo, Paper, Vinyl, PVC Film, Inkjet Fabric, etc. |
| Interface | USB 2.0 / Internet Cable |
| Power/Power Rating | 220V 50HZ/60HZ/ 6KW |
| Computer Configuration | Computer System: Win10, 64 bit; Port USB 2.0 |
| Working Environment | Independent, Clean, Low Dust, Well Ventilated Workshop, |
| Temperature: 15ºC-28ºC,Humidity: 40%-70% | |
| Printer/Packing | 4.67*1.0*1.53m / 4.82*1.1*1.65m |
| Weight | 730 / 780 KG |
| Print Speed: | 4pass 1H 18 m2/h 2H 36m2/h |
| 6pass 1H 12m2/h 2H 24m2/h | |
| 8pass 1H 9m2/h 2H 18m2/h | |
