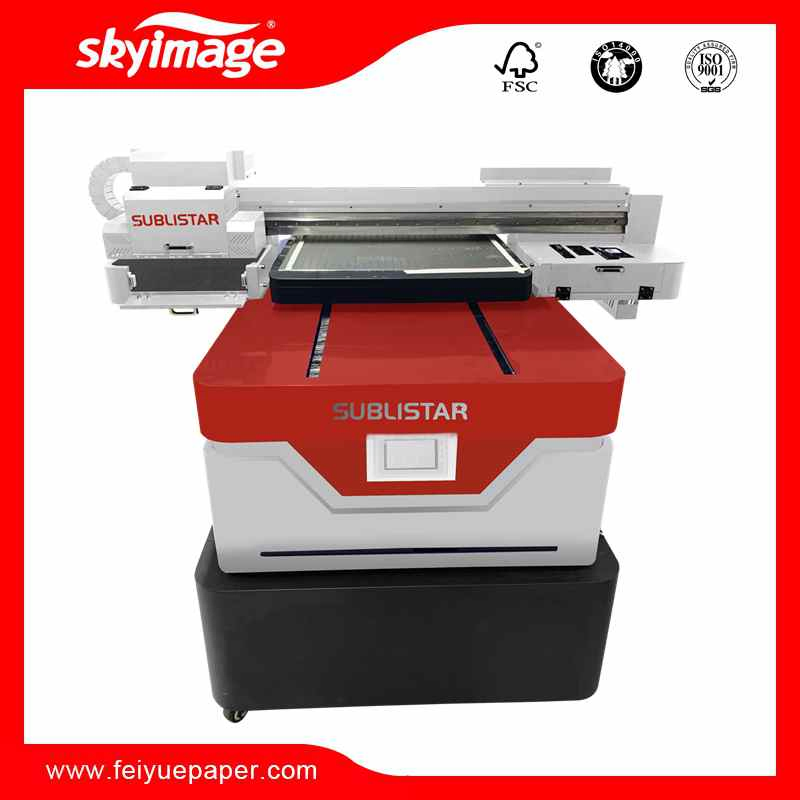

60* 90cm Dtf UV Flatbed Digital Printer

Product Description

Parameter

Print Head: Four Epson PrecisionCore™ print heads.
Max Print Width: 60*90cm

Feature

DTF-6090UV is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.

60*90cm Dtf UV Flatbed Digital Printer

Feature of Sublistar DTF 6090 UV Flatbed Printer

Reliable boards system work on stable.high precision machine body it can work on any line.
Automatic stirring system for white ink and lacking ink alarming system. Making sure non-stop working. Together with alarm function for ink shortage.
White ink channel on or off optional and output percentage adjustable, make printing more vividly and saturation.
Carriage height could reach to 24cm; And it can work on 3 heads by varnish+white+ color, Print speed faster, and control easier.
Highly integration control software with non-stop working function, easy to read and add print file during printing.
Support for multiple printing on same picture by one time, fit for most special produciton request

Technical Parameter

Product	DTF 6090 UV Flatbed Printer
Brand	Sublistar
Model	DTF-6090UV(F1080)	DTF-6090UV(I3200)	DTF-6090UV(4720)
Printhead	1080 head	3200 head	4720 head
Print width	Max 60*90cm	Max 60*90cm	Max 60*90cm
Heads number	3 or 4	3 or 4	3 or 4
Speed	W+C+V+G	W+C+V+G	W+C+V+G
Production mode	2m2/ h	3 m2/ h	3 m2/ h
Precision mode	1.5m2/ h	2.5m2/ h	2.5m2/ h
High precision	1m2/ h	2m2/ h	2m2/ h
Maximum Resolution	720 x 4320 dpi	720 x 4320 dpi	720 x 4320 dpi
Print height	3mm to 240mm adjustable
Ink	4/6 color+white+varnish(K C M Y Lc Lm + white+varnish)
Printing types	Glass,Acrylic board,Wood,board ,Metal,Leather and so on
Data Interface	USB 3.0 high speed interface transfer system
Working Environment	Temperature:25ºC-30ºC Humidity:40%-60%
Power	50-60 Hz 1000W-1600W AC220V(±10%) / AC110V(±10%)
Operating Systems	Windows 7 Professional,Windows 8, Windows 10
Printer Dimension	With table:1530mmX1600mmX1380mm Without table: 1440mmX1600mmX870mm

UV DTF VS. DTF

Sublistar recently launched a new technology - UV DTF printing. The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.

Compared with DTF printing, UV DTF requires a UV flatbed printer and a laminating machine. DTF requires a DTF printer, a shake powder machine and a heat press.
New technology UV DTF printers is mainly used for the transfer of hard materials, DTF is mainly used for the transfer of fabrics, Jeans, bag.
Sublistar UV DTF printers are currently available in A3 size with 4 print heads. Mainly divided into economical, basic or high-end machines. Corresponding to use is TX800/4720/I3200 print head. You can choose according to your needs.

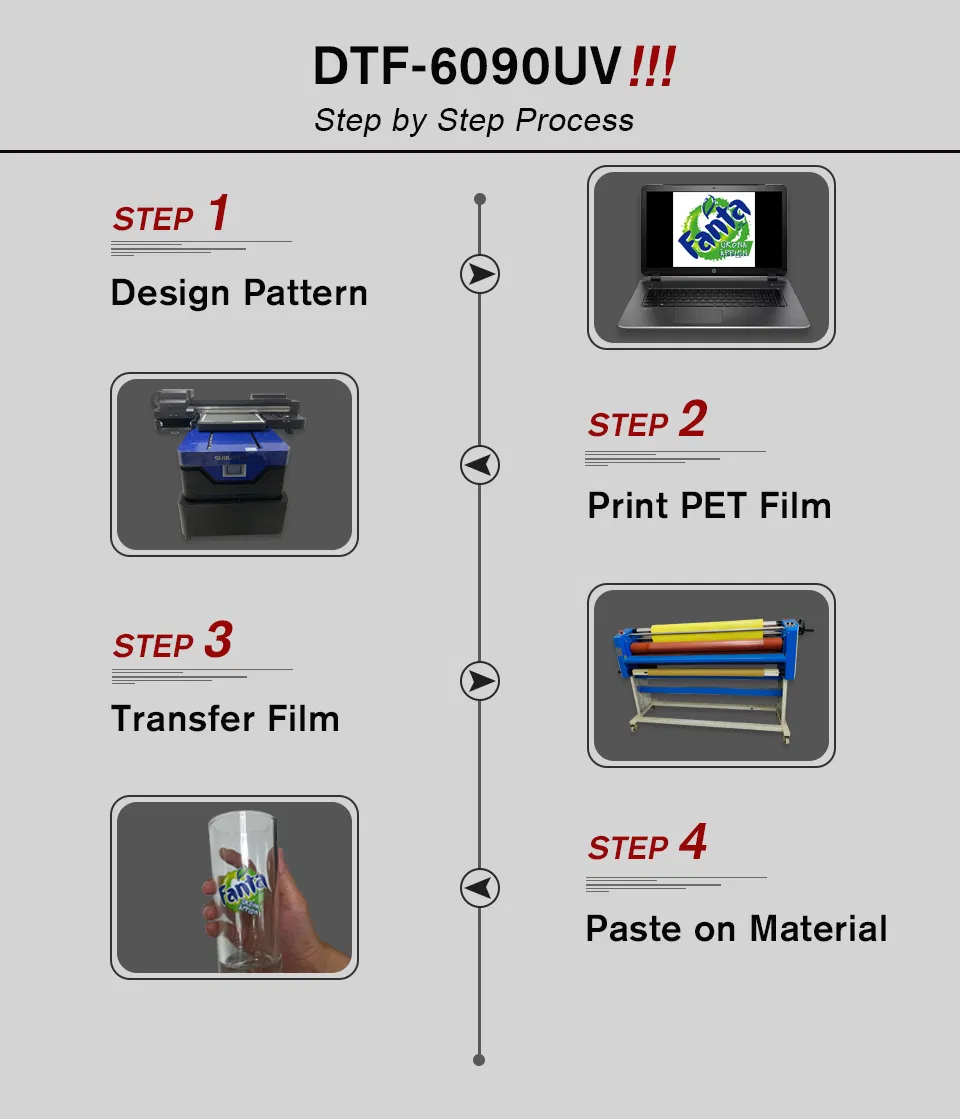

Working Process

1.Design Pattern

Use photoshop, illustrator or other software to design your pattern.

2.Print PET Film

Print the pattern on the direct transfer film first, and print in the order of white ink, color ink, and varnish.

3.Transfer Film

After printing, put the PET film on the direct transfer film. It is recommended to use a laminating machine to press it. Of course, it can also be operated manually.
