Product Description
Glass Acrylic Large Printing Machine UV 2030 Printer
Product Description
| Technical Data | UV2030 FLAGSHIP series |
| Print Technology | |
| Print Format | 200 x 300 cm/ 6.5 x 10 ft |
| Print Height | 10 cm/ 4 in ( Max. 40 cm/ 16 in ) |
| Head Model | Toshiba CE4, 4~16 ph/ Ricoh G5, 2-8 ph, Auto Heating |
| Color Set | CMYK+LM+LC+W+V, CMYK+W+V, CMYK+2W+2V, CMYK+W+CMYK |
| Control System | KNFUN / ROYAL |
| RIP Software | Holland Aurelon |
| Print Direction | Uni/ Bi-directional ; Front/ Rear Alternative |
| Application | Sign & Graphics Decoration & Construction Materials Industrial flagship Model, Designed or Batch production |
| Print Speed | Production mode: 18-25 sqm/h Quality mode: 15-18 sqm/h High resolution mode: 12-15 sqm/h |
| Machine Highlight | |
| Heavy Duty Frame | Strengthened aluminum beam + Thicken steel base |
| Driving Mode | HIWIN linear rail + Servo motor + Lead screw + IGUS drag chain |
| Protective Device | Anti-collision + Static eliminator |
| Work Table | Anodized aluminum table + Independent vacuum control |
| Ink System | Negative pressure Ink supply + White Ink stirring and circulation |
| Curing System | Imported UV lamp, 30000 hours lifespan |
| Height Detection | Automatic sensor |
| Others | |
| Print Media | Glass, Ceramic, Acrylic, Metal, Leather, Plastic, Wood, PVC .. etc |
| PC Configuration | Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G |
| Signal Transmission | Optical Fiber + USB 3.0 |
| Color Control | Comply with ICC standards, with curve and density adjustment function |
| File Format | TIFF/ JPEG/ POSTSCRIPT3/ PDF |
| Power Supply | AC220V,50/ 60HZ |
| Working Power | 4.5 KW |
| Noise | Standby < 32 dB ; Working < 65 dB |
| Machine Size | 4.3 m x 3.9 m x 1.45 m |
| Net Weight | 1600 KG |

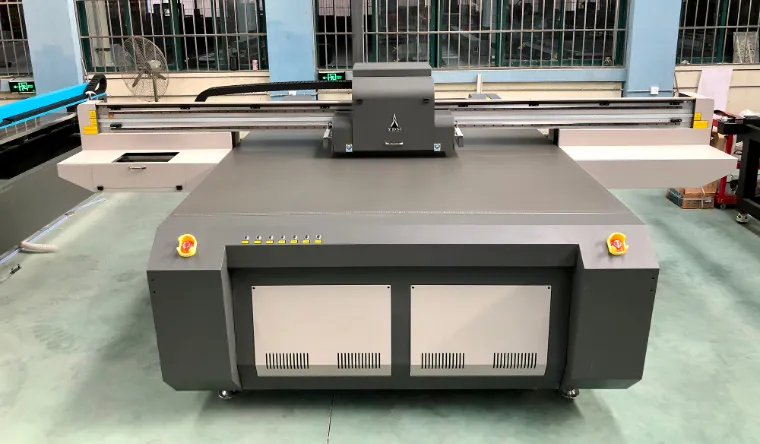

UV2030 Flatbed Printer is the most successful series printer designed by YDM.
Our UV2030 Flatbed Printer advantage:
1.More Stable working Condition
2.Less working Fault
3.More Amazing Printing effect,(more clear&real pictures printed)
4.New upgraded control system
5.New PIR software drives better performance
6.Easy to install and maintenance

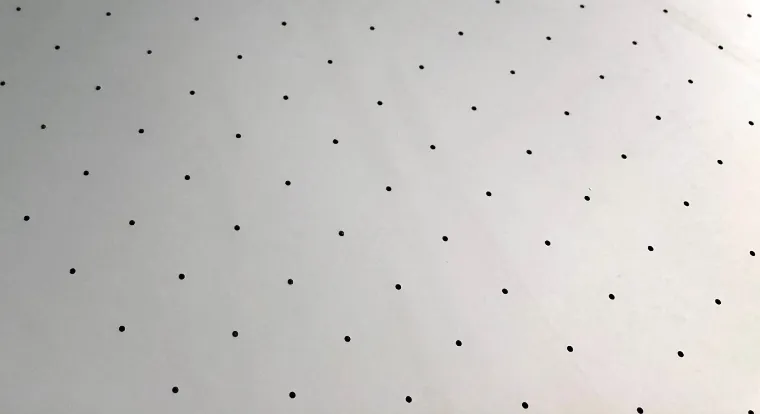

2030 UV Printer---Vaccum Suction Platform

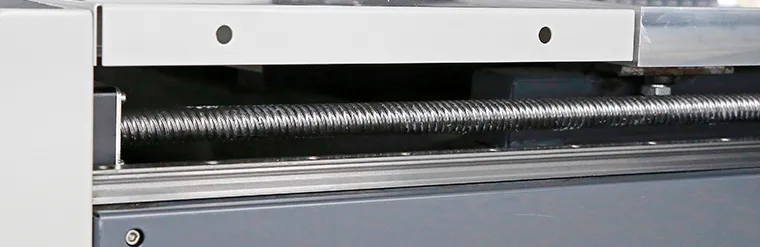

2030 UV Printer---Lead Screw Transmission
UV Flatbed Printer usually are used to the advertising&Signs Industry,Home Decoration Industry,Glass Printing Industry and so on,the Media material can be Glass,Metal,Acrylic,Wood,PVC,Plastic,Ceramic Tile and so on.
Company Information
Team&Certifications
We have about ten people after-sale service team to improve our customers' need,and fix any problem on time.

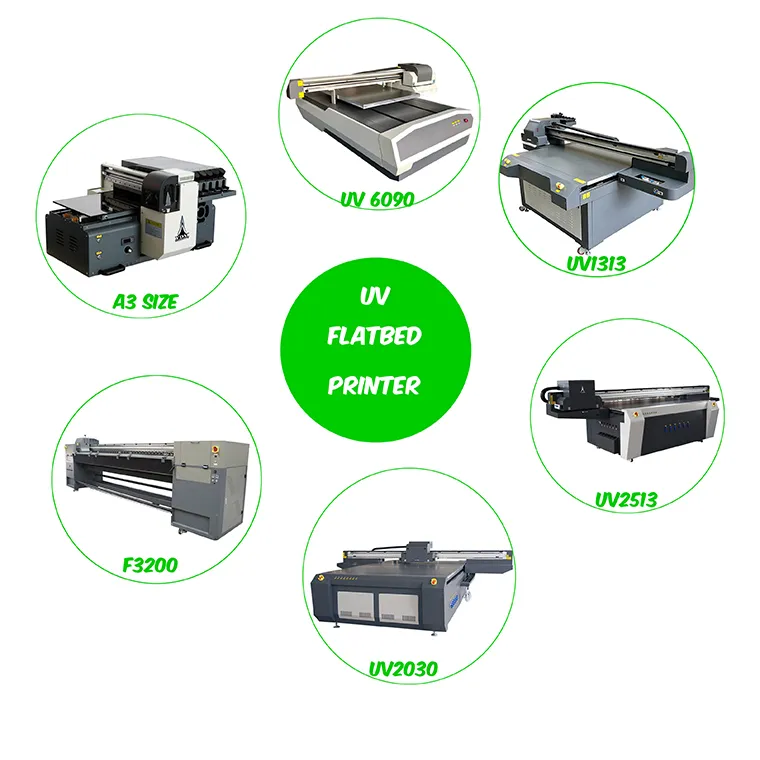

YDM is the Professional manufacturer of Printing Machine,like A3 Printer,UV6090 Flatbed Printer,UV1313 Printer,UV2513 Industry Printing machine,UV2030 Industry Printing Machine,UV4030 Industry Printing Machine,More information,Pls clik below items:
If you are interested in our Glass Acrylic Large Printing Machine UV 2030 Printer,Pls contact us freely!!!
