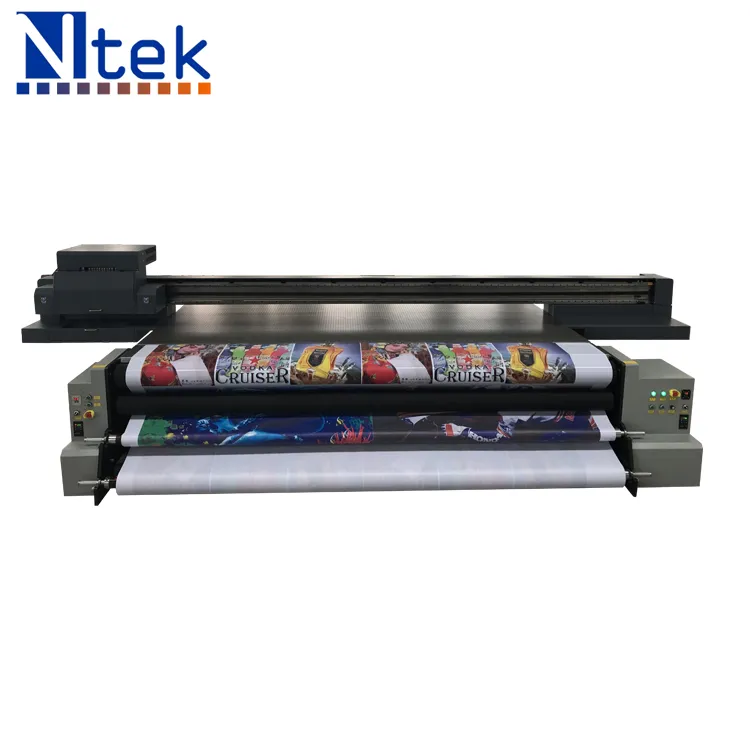

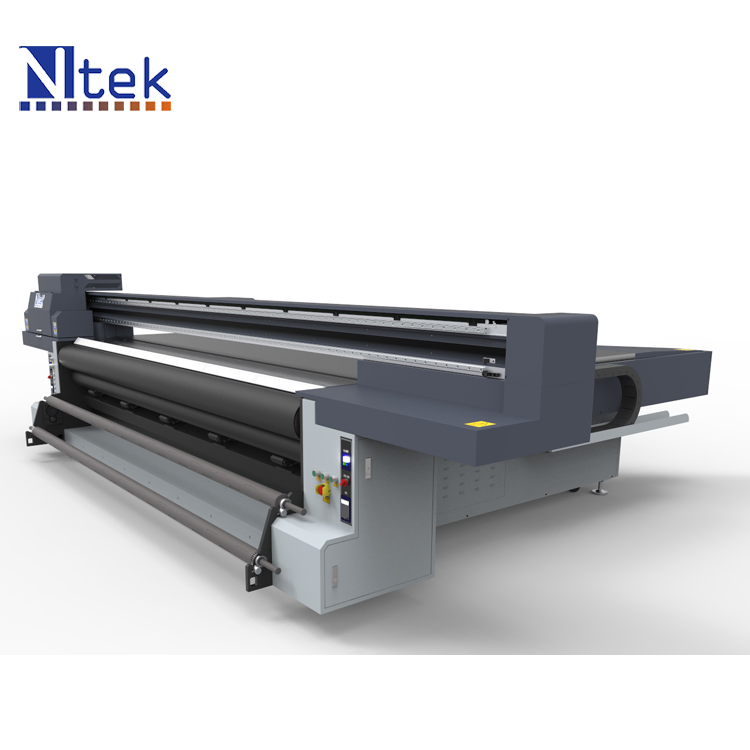

Leather Printing Machine UV Hybrid Printer Ricoh Gen5/ Gen6 Head
Main Features: Japanese imported Ricoh GEN5 head for industrial production CMYK W LC LM and varnish optional for glossy surface and high quality printing Hard anodized vacuuming platform to avoid damaging the platform by rigid materials Auto height detection technology to detect print media thic......
Send Inquiry
Product Description
Main Features:
Japanese imported Ricoh GEN5 head for industrial production
CMYK W LC LM and varnish optional for glossy surface and high quality printing
Hard anodized vacuuming platform to avoid damaging the platform by rigid materials
Auto height detection technology to detect print media thickness automatically
Automatic anti-static design to avoid dust ink drops flying
Advanced printhead anti-crash system to avoid the risk of a collision between printer carriage and material
Printing Materials:
UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal
panel, aluminium sheet, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated
cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.
Product Specification:
Product Model | YC3321R |
Printhead Technology | Drop-on demand piezo electric |
Printhead Control | Printhead voltage is software adjustable |
Printhead Type | RICOH GEN5/GEN6/KONICA 1024i/SPT1024GS |
Printhead Number | 2/3/4/5/6/8 |
Ink Characteristics | UV Curing Ink |
Ink reservoirs | Refillable on the fly while printing/1000ml per color |
Lamp | UV LED lamp |
Color Control | ICC based color, curves and density adjustment |
Printhead Arrangement | C M Y K LC LM W varnish optional |
Cleaning System | Positive Pressure Cleaning |
Guide Rail | Taiwan HIWIN |
Working Table | Vacuum Sucking |
Printing Size | 3300*2100mm |
Print width | 3300mm |
Roller Material Diameter | Within 200mm |
Print Interface | USB2.0 |
Media Thickness | 0-100mm, higher can be customized |
Print Resolution | 300*900dpi,600*600dpi,600*900dpi,600*1200dpi |
Printing Speed | 15sqm/h-60sqm/h |
Life of Printed Image | 3 years(outdoor),10years(indoor) |
File Format | TIFF,JPEG,Postscript3,EPS,PDF etc. |
RIP Software | UltraPrint/ Photoprint optional |
Power Supply | 220V 50/60Hz(10%) >15A |
Operation Environment | Temperature 20 to 28ºC, Humidity 40% to 60% |
Machine Dimension | 5.37*3.78*1.46m |
Weight | 3000kg |
Warranty | 12 months exclude the consumables |

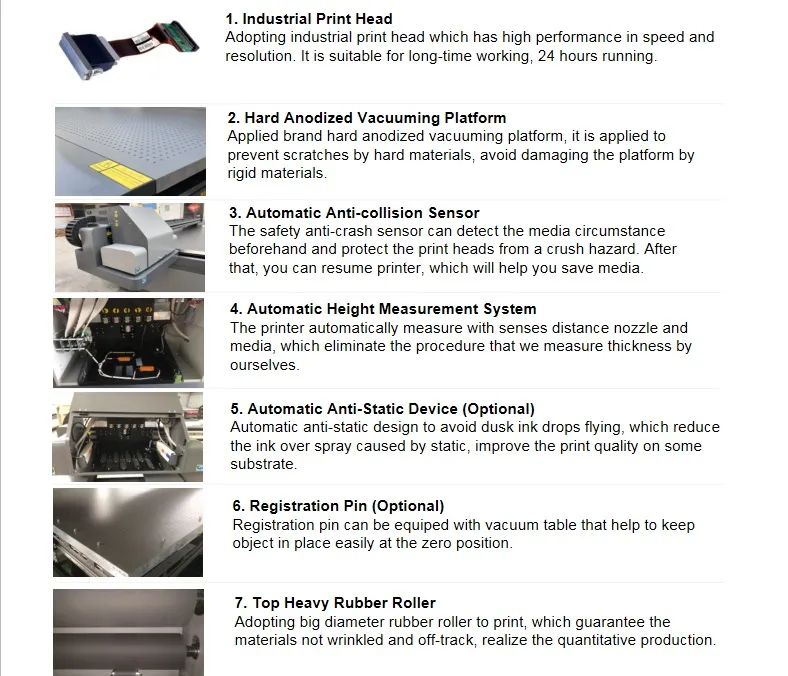

Product Details:
Company Information:

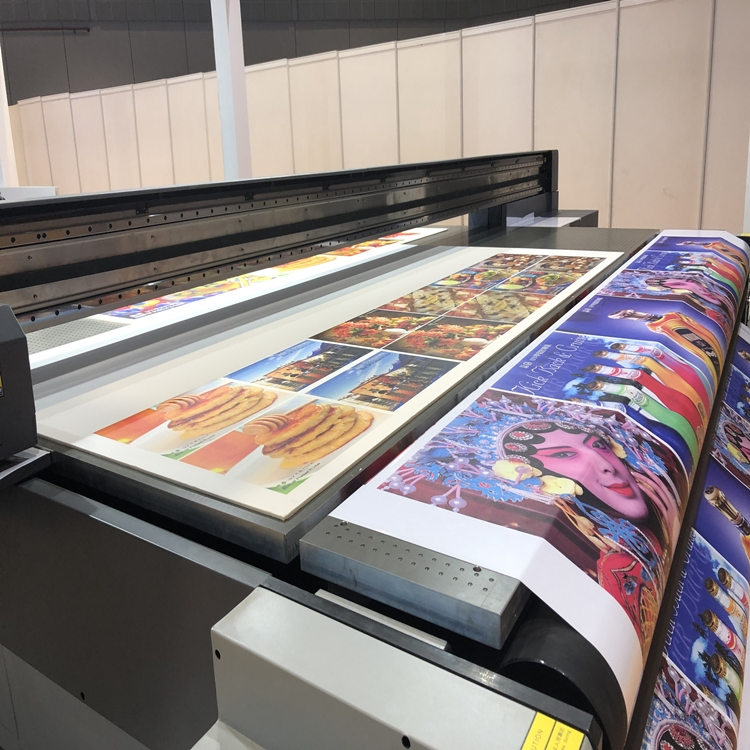

Printing Sample:
Our Team:

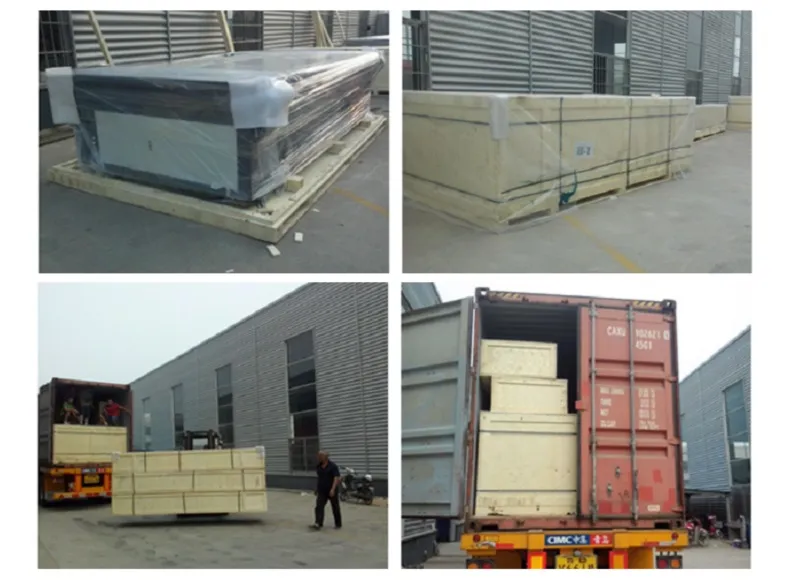

Packing&Shipping:
FAQ:
1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability,best result.
3. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers.
But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
4.Are you a manufacturer or trade agent?
We are the manufacturer of Uv flatbed printers.
5. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the
main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump,
printhead, ink filter, and slide block since they are consumables.
6. How can I install and start to use the printer?
At first, you should read the users' manual to understand the machine and watch the video. After you get the
machine, our technician will teach you how to install and use-machine by remote control via Teamviewer or Skype.
Whenever you have questions to the machine, you can contact our technician or me.
7.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
8. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send new part within 48hours by
express like TNT, DHL, FEDEX etc to the buyer. An shipping cost should be born by the buyer.
9. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc.
