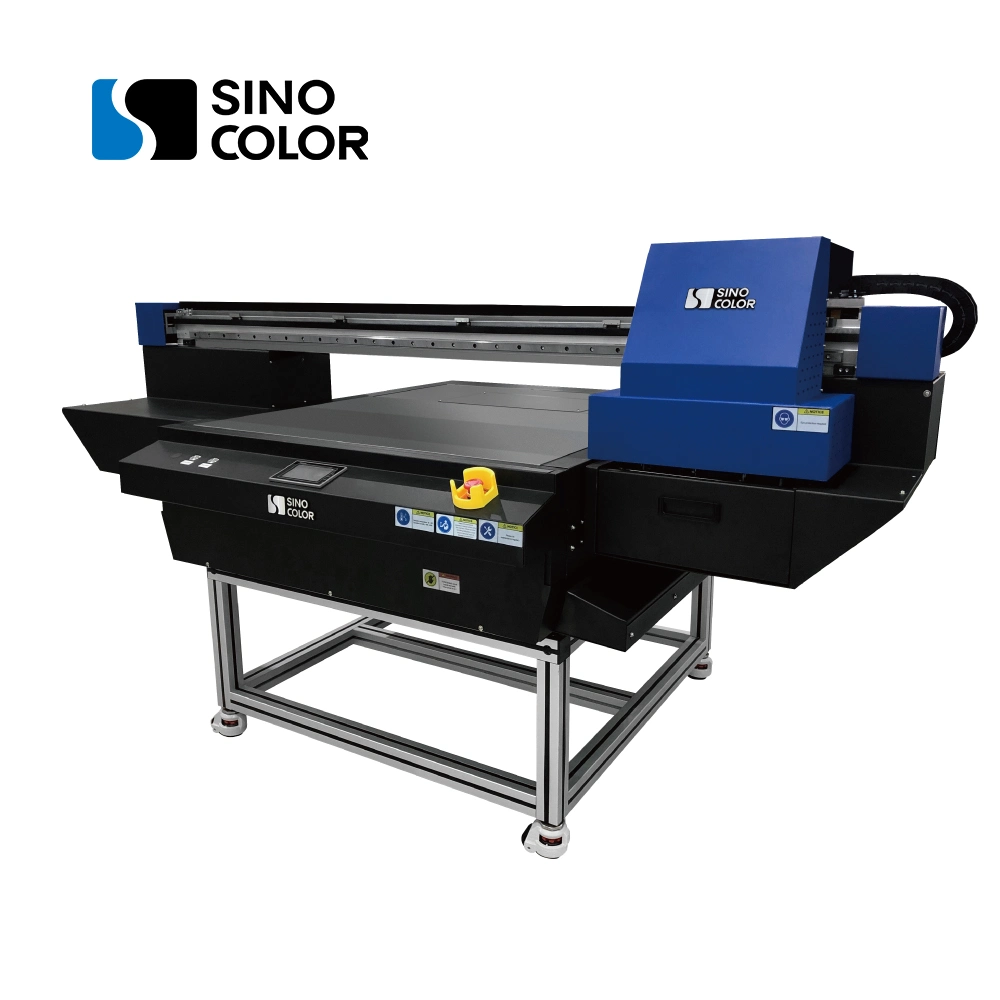

Muti-Function A1 UV Flatbed Printer Fb -0906 on Glass Wood Acrylic Ceramic
Muti-Function A1 UV Flatbed Printer Fb-0906 on Glass Wood Acrylic CeramicWith the capability to print onto rigid substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-0906 & FB-1313 & FB-2513 UV flatbed printers are ideal for applications ......
Send Inquiry
Product Description

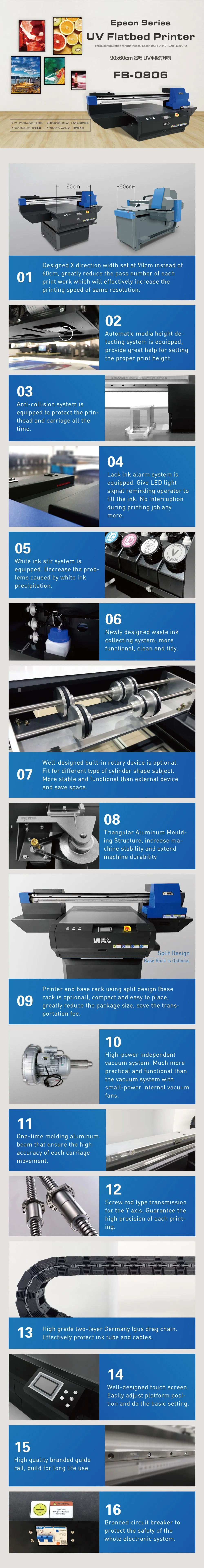

Muti-Function A1 UV Flatbed Printer Fb-0906 on Glass Wood Acrylic Ceramic
With the capability to print onto rigid substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. FB-0906 & FB-1313 & FB-2513 UV flatbed printers are ideal for applications such as backlit displays and signage,signs and posters, interior décor, glass and metal decorative panels,promotion products, gift products, and more.
| Model No. | FB-0906 | FB-1313 | FB-2513 | |
| Printhead | Piezoelectric Printhead DX5/8/L1440/i3200-U | |||
| Printhead Height | 12 cm MAX | |||
| Media | Size | 900 x 600 (mm) | 1300 x 1300 (mm) | 2500 x 1300 (mm) |
| Types | Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC, PP, PE, PTFE… | |||
| Speed | Nomal Quality | 11 sqm/h | 11 sqm/h | 15 sqm/h |
| Standard Quality | 9 sqm/h | 9 sqm/h | 11 sqm/h | |
| Photo Quality | 7 sqm/h | 7 sqm/h | 8 sqm/h | |
| Ink | Type | UV Ink | ||
| Color | CMYK / CMYKLcLm / White or Varnish | |||
| Capacity | 500 ML per main tank of each color, Automatic ink quantity monitoring, non-stop with ink | |||
| Dry System | UV_LED light system | |||
| Vacumm System | Independent Air Pump ( One Zone) | Independent Air Pump ( Four Zone) | ||
| Resolution | 1440, 2160, 2880 dpi | |||
| Rip Software | MainTop (Standard) / PhotoPrint (Optional) / Onyx(optional) | |||
| PC Operation System | Windows 7 32/64bit RAM≥8G | |||
| Operation environment | Temperature: 18°C - 28°C ; Humidity : 40% - 60% | |||
| Power Supply | Max 3.6KW, AC, 50/60Hz, 110V/220V(±10%)>12A | |||
| Image Format | TIFF, JPEG, EPS, PDF | |||
| Size | Machine | L2200 W1400 H750 (mm) | L2600 W2000 H1500 (mm) | L3700 W2300 H1550 (mm) |
| Packing | L2250 W1450 H880 (mm) | L2700 W2100 H1600 (mm) | L3800 W2400 H1650 (mm) | |
| Weight | Machine | 300 KG | 630 KG | 900 KG |
| Packing | 400 KG | 700 KG | 1000 KG | |
