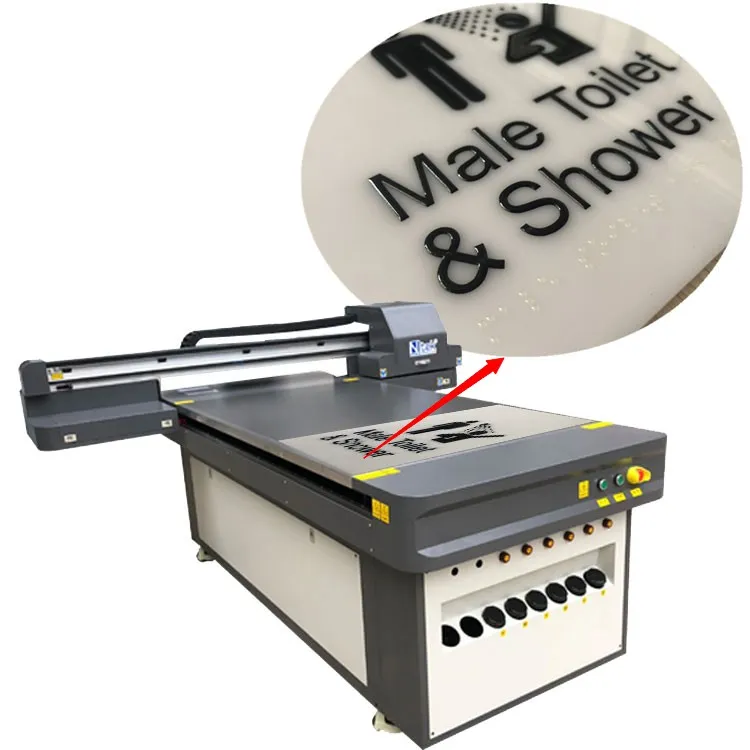

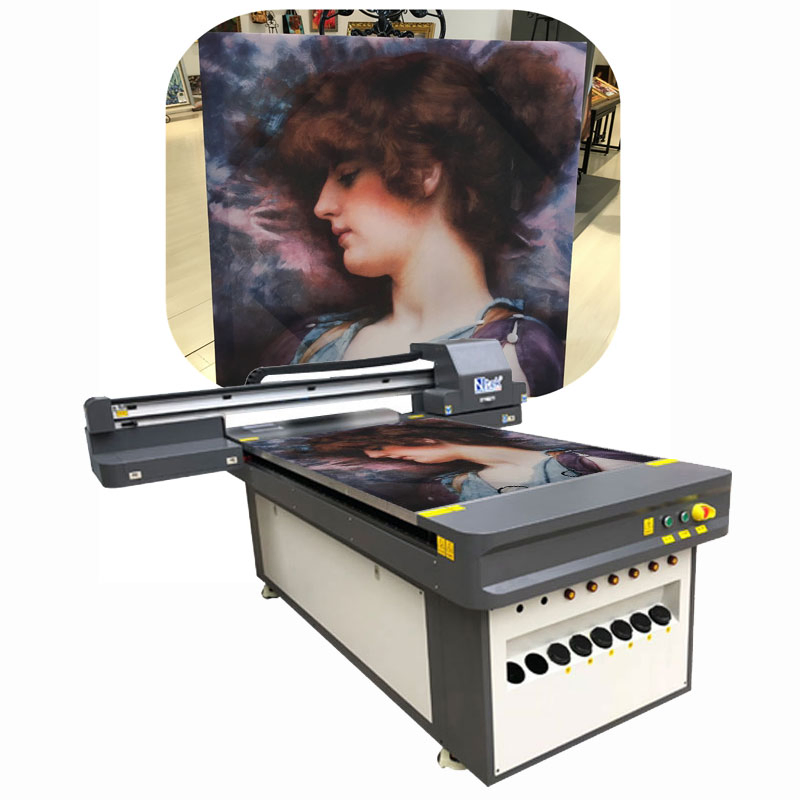

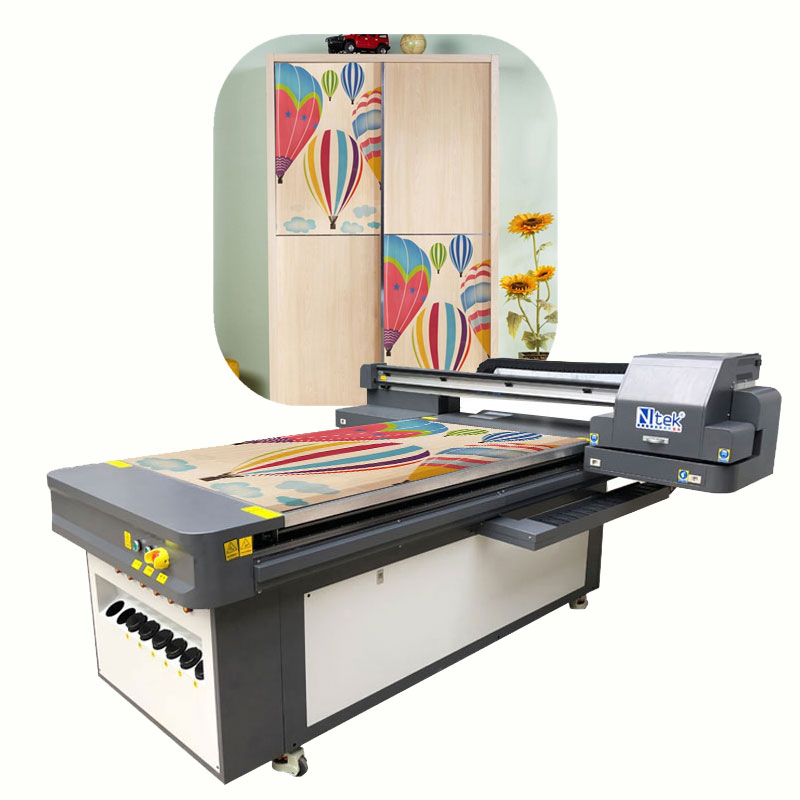

              Ntek 3D Digital Printer UV Flatbed Printer Acrylic
              • Ntek 3D Digital Printer UV Flatbed Printer AcrylicNtek 3D Digital Printer UV Flatbed Printer Acrylic
              • Ntek 3D Digital Printer UV Flatbed Printer AcrylicNtek 3D Digital Printer UV Flatbed Printer Acrylic
              • Ntek 3D Digital Printer UV Flatbed Printer AcrylicNtek 3D Digital Printer UV Flatbed Printer Acrylic
              • Ntek 3D Digital Printer UV Flatbed Printer AcrylicNtek 3D Digital Printer UV Flatbed Printer Acrylic

              Ntek 3D Digital Printer UV Flatbed Printer Acrylic

              Ntek 3D Digital Printer UV Flatbed Printer Acrylic Product ModelYC1016Printhead TypeRICOH GH2220/GEN5/GEN6 /EPSON DX5/DX7/TOSHIBA CE4Printhead Number2-8 unitsInk CharacteristicsUV Curing Ink (VOC Free)LampUV LED lampPrinthead ArrangementC M Y K W varnish optionalGuide RailTAIWAN HIW......

              Send Inquiry

              Product Description

              Ntek 3D Digital Printer UV Flatbed Printer Acrylic

              Ntek 3D Digital Printer UV Flatbed Printer Acrylic


              Product Model

              YC1016

              Printhead Type

              RICOH GH2220/GEN5/GEN6 /EPSON DX5/DX7/TOSHIBA CE4

              Printhead Number

              2-units

              Ink Characteristics

              UV Curing Ink   (VOC  Free)

              Lamp

              UV LED lamp

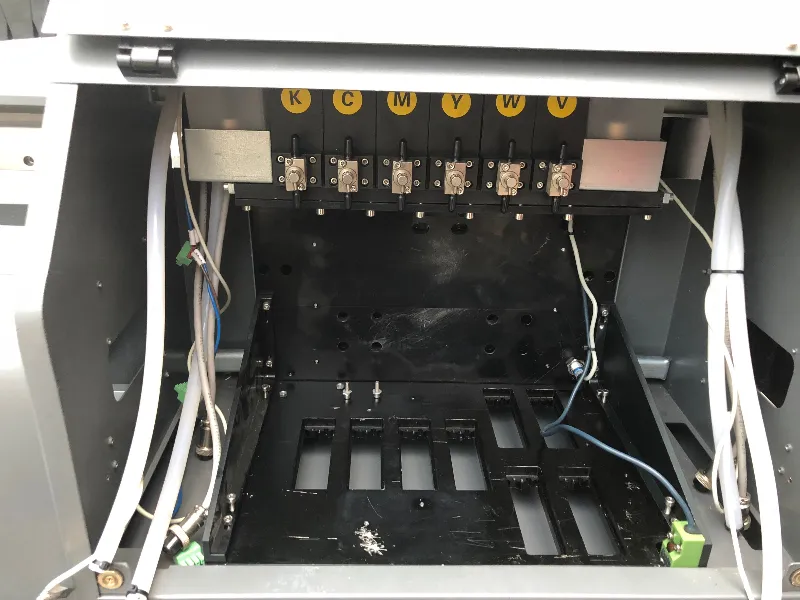

              Printhead Arrangement

              Y     K       varnish    optional

              Guide Rail

              TAIWAN HIWIN

              Working Table

              Aluminum Vacuum Sucking

                Printing Size

                 1000*1600mm

              Print Interface

              USB2.0

              Media Thickness

              0-100mm, higher can be customized

              Print Resolution & Speed

              720X720dpi

              4PASS

              4-16sqm/h

              720X1080dpi

              6PASS

              3-11sqm/h

              720X1440dpi

              8PASS

              2-8sqm/h

              RIP Software

              UltraPrint/ RIP Print/Photoprint/Union Fancy optional (Ntek Edition)

              Media

              Glass, Ceramic, Wood, Acrylic, Metal, Canvas, Leather, PP etc

              Machine Dimension

              2380*2100*1230mm

              Weight

              500kg

              Safety Certification

              CE Certificate



              Main Features:

              • Japanese imported head for industrial production
              • CMYK White and varnish optional for glossy surface and high quality printing
              • Upgraded negative pressure system to ensure high accuracy 0.01kp difference for high quality printing     performance
              • Fast fiber transmission technology
              • Aluminum vacuum suction platform for easy operation
              • Long-lasting UV LED lamps are safe, energy efficient



              Ntek 3D Digital Printer UV Flatbed Printer Acrylic

              Sampels
              Ntek 3D Digital Printer UV Flatbed Printer Acrylic

              Ntek 3D Digital Printer UV Flatbed Printer Acrylic

              Ntek 3D Digital Printer UV Flatbed Printer Acrylic

              Ntek 3D Digital Printer UV Flatbed Printer Acrylic
              Ntek 3D Digital Printer UV Flatbed Printer Acrylic

              UV printer Applications:

              A.Decoration industry
              B.Glass, Ceramic industry;
              C.Advertising&Sign industry;
              D.Furniture and personalized products etc.


              Ntek 3D Digital Printer UV Flatbed Printer Acrylic

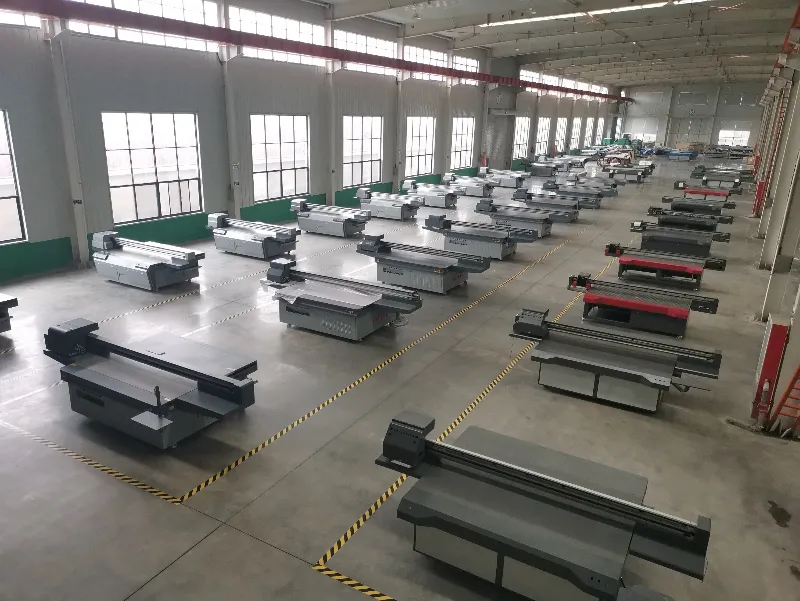

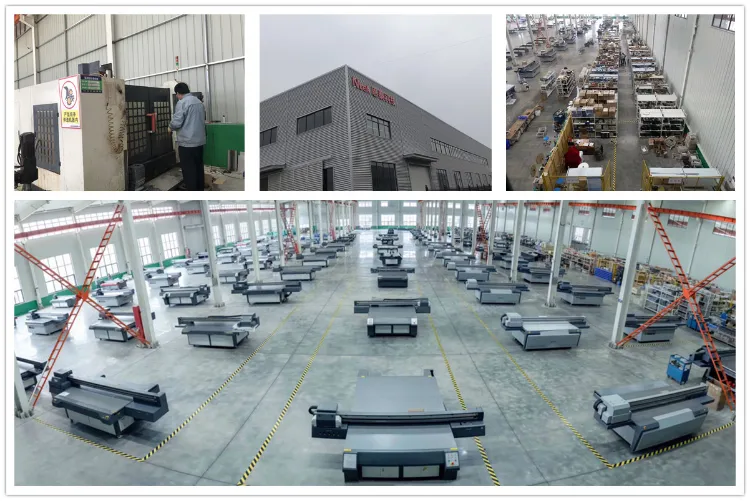

              Our Factory

              Ntek 3D Digital Printer UV Flatbed Printer Acrylic

              Ntek 3D Digital Printer UV Flatbed Printer AcrylicNtek 3D Digital Printer UV Flatbed Printer Acrylic
              Package


              Ntek 3D Digital Printer UV Flatbed Printer Acrylic



              FAQ:

               1.How long does the printing images will last outdoors and indoor?

                    The printing images can last at least 3 years outdoors, and more than 10 years indoor.


               2. How about the stability and quality of the printing images?

                    This UV flatbed printer can used to print on most of medias with best quality, durability,best result.


               3. How about the maintance and aftersales service?

                    Our engineer available service overseas, and we can provide remote control service and online service for customers.

                    But costomer has to be responsible for the accommodation and transportation costs of the technical staff.


               4.Are you a manufacturer or trade agent?

                    We are the manufacturer of Uv flatbed printers.


               5. Is there any guarantee for this printer?

                    Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the

                    main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump,

                    printhead, ink filter, and slide block since they are consumables.


               6. How can I install and start to use the printer?

                    At first, you should read the users' manual to understand the machine and watch the video. After you get the

                   machine, our technician will teach you how to install and use-machine by remote control via Teamviewer or Skype.

                   Whenever you have questions to the machine, you can contact our technician or me.



               7.Can I get supplies and wearing parts from you?

                    Yes, we provide all the wearing parts for our printers always and they are in stock.


               8. How will you achieve the warranty?

                    If any electronics or a mechanical part is confirmed to be broken, Ntek should send new part  within 48hours by

                   express like TNT, DHL, FEDEX etc to the buyer. An shipping cost should be  born by the buyer.


                9. What kinds of materials need premier before printing?

                   Glass, ceramic, metel, acrylic, marble etc.


              The UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.
