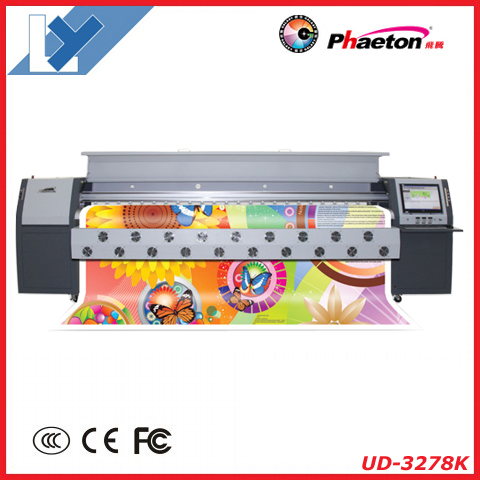

Phaeton Seiko Head Printer Ud-3278K
Phaeton Seiko Head Printer UD-3278K: Gold Supplier of Phaeton Seiko Solvent Printers1, Equipped with 8 Seiko SPT 510 50pl print heads.2, Double 4 color printing, the standard output achieves 157m2/hr.3, AC servo motor is used to run the carriage quicker and more stable.4, Individual color cleaning m......
Send Inquiry
Product Description
Phaeton Seiko Head Printer UD-3278K: Gold Supplier of Phaeton Seiko Solvent Printers
1, Equipped with 8 Seiko SPT 510 50pl print heads.
2, Double 4 color printing, the standard output achieves 157m2/hr.
3, AC servo motor is used to run the carriage quicker and more stable.
4, Individual color cleaning minimizes the waste of the ink;
5, 3 way intelligent heater (pre/print/post) helps bring more vivid output;
6, The entire printing platform and the girder are made of the alloy-aluminum which is more strong and flat.
1, Equipped with 8 Seiko SPT 510 50pl print heads.
2, Double 4 color printing, the standard output achieves 157m2/hr.
3, AC servo motor is used to run the carriage quicker and more stable.
4, Individual color cleaning minimizes the waste of the ink;
5, 3 way intelligent heater (pre/print/post) helps bring more vivid output;
6, The entire printing platform and the girder are made of the alloy-aluminum which is more strong and flat.
| Model | FY-3278K | |
| Print Head | Drop on demand Piezo Head (SPT510-50PL) | |
| Number of Print Head | 8 Heads | |
| Maximum Print Width | 3,200mm(125.98") | |
| Print Speed | Draft | 2 Pass 157m 2 / hr |
| Standard | 3 Pass 109m 2 / hr | |
| Quality | 3 Pass 91m 2 / hr | |
| High Quality | 4 Pass 70m 2 / hr | |
| Max. Media Width | 3,300mm(129.92') | |
| Max. Media Weight | 80kg | |
| Media Type | Frontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film, Blue Back Paper^ | |
| Media Thickness | 4mm(Max.) | |
| Heating System | 3 way intelligent heater | |
| Auto Media Feeding & Take-up System | Equipped | |
| Ink | Double 4 color, Solvent Ink (C\M\Y\K) | |
| Auto Cleaning System | Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System | |
| Print Interface | USB 2.0 | |
| Power Specification | AC 220V/230V 50Hz/60Hz; Printing: 660W Heater: 1900W | |
| Operational Environment | Temperature: 20°C-28°C Humidity: 40%-60% | |
| Compatible RIP Software | Photoprint, UltraPrint, Topaz, Wasatch, Caldera, Maintop | |
| Machine size | L4786mm X W1000mm X H1350mm 685kg | |
| Package size | L4980mm X W1400mm X H1640mm 968kg | |
