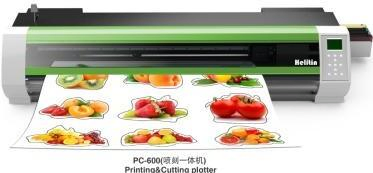

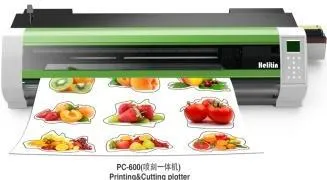

              Small Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpi
              • Small Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpiSmall Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpi
              • Small Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpiSmall Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpi
              • Small Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpiSmall Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpi
              • Small Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpiSmall Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpi

              Small Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpi

              1. New model Printing&Cutting PlotterThe newest model of Printing and Cutting plotter, used with Epson Dx5 / Dx7 printhead 2. Stable performance The highest speed for cutting can reach 0-400mm/s.The cutting force is 0-300g, the power of media adsorption can be adjusted which avoids print head s......

              Send Inquiry

              Product Description

              1. New model Printing&Cutting Plotter

              The newest model of Printing and Cutting plotter, used with Epson Dx5 / Dx7 printhead

              2. Stable performance The highest speed for cutting can reach 0-400mm/s.

              The cutting force is 0-300g, the power of media adsorption can be adjusted which avoids print head scratching with media.

              3. Humanized design Embedded intelligent sectional heating system, auto cleaning system with anti-clogged flash spray & mositurzing function.


              ModelCT-CP500CT-CP750CT-CP900CT-CP1600




              Small Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpi

              Small Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpi
              Small Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpi

              Small Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpi
              printheadPiezo Electric Printhead EPSON DX5/DX7
              Number of Printhead1 Head
              Max Print Width500mm730mm914mm1520mm



              Printing Resolution              		3Pass19m2/hr
              4Pass15m2/hr
              6Pass10m2/hr
              8Pass7.6m2/hr
              InkTypeWater-based dyes, water-based paint, Eco-solvent ink, sublimation ink
               ColorDual 4 colors (C.M.K.Y)
              Capacity220ml of each ink cartridge
              Ink Supply SystemCartridge Ink Supply System, continuous ink system for optional accessories

              Media
              Type              		PP synthetic paper,Gloss photo paper,PVC,Car Stickers,Label,Vinyl sticker,light sheet, Printable
              Flex, PU heat transfer vinyl etc.
              Max Weight of material
              Less than20kgs/roll
              Print Height1mm-6mm height of print head is adjustable
              Cutting speed0-400mm/s
              Repeat accuracy (cutting)
              ±0.1mm or less
              Cutting force0-300g
              Heating System3 section constant temperature heating system from front& back bedplates, temperature adjustable
              Drying systemStandard cold air configuration, PTC hot air (optional accessories)
              Feeding systemEquipped
              Auto Printhead Cleaning System
              Auto cleaning system with anti-clogged flash spray & auto moisturizing function
              ClampEquipped
              Auto take up systemSelectable
              Print InterfaceUSB2.0 interface (Windows 7, 2000,NT,XP etc)
              RIP softwareStandard Flexi SIGN-PRO 10.5.1 RIP / PHOTOPRINT
              Input PowerAC110 or 220V,50HZ/60HZ
              Operating EnvironmentTemperature:18ºC ~ 35ºC Humidity:35% ~ 70%
               78KGS/120KGS85KGS/138KGS125KGS/180KGS140KGS/225KGS
              Machine Dimension1450* 665* 354mm1690*665mm*354mm1970*700mm*1140mm2570*700mm*1140mm
              Packing Dimension1570* 740* 550mm1810* 740* 550mm2120* 770* 740mm2720* 770* 830mm
              Small Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpiSmall Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpiSmall Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpiSmall Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpiSmall Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpiSmall Size 70cm Print and Cut All in One Plotter Dx5 Printhead 1440dpi
