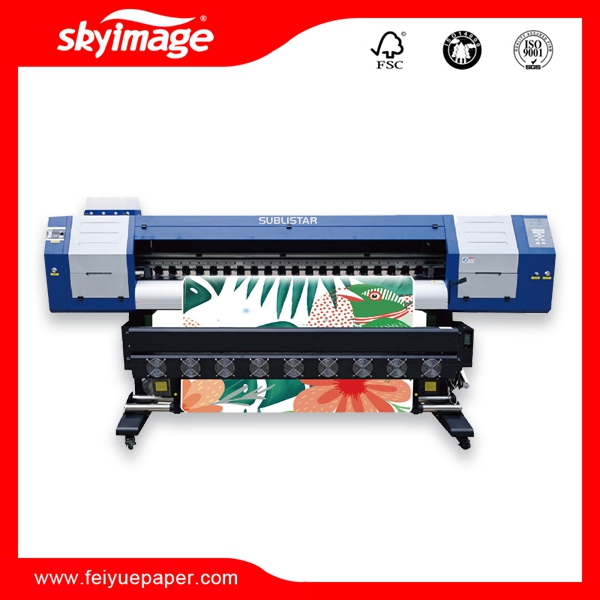

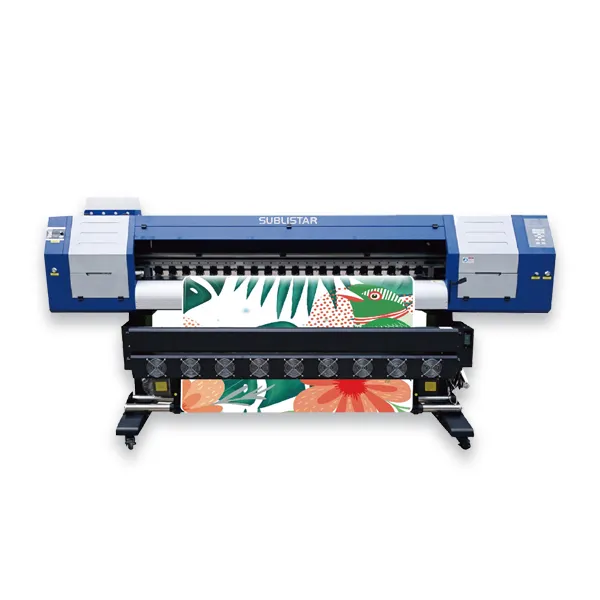

Sublistar 1.8m Large Format Dye Sublimation Printer

Product Description

1.8m Large Format Dye Sublimation Printer

Sublimation Comprehensive Solution
Model: SUB-1802/1803

Parameter

Print Head: 2/3 Epson 5113/4720/5210
Max Print Size: 1800mm Print Width.
Max Print Speed: 150sqm/h

Feature

SUBLISTAR^® high-performance printer delivers a cost-effective dye-sublimation solution that offers you unprecedented levels of quality and productivity.
2/ 3/ 4pcs Epson i3200 print heads optional
Magnetic Encoder strip instead of normal encoder strip.

The Specications about Sub-1802

PRINTHEAD		Epson 5113/4720/5210 4720
NO.OF PRINTHEAD		2
INK DROPLET SIZE		VARIABLE DROP 3-21PL
INK TYPE		WATER BASED DYE INK/SUBLIMATION INK
SUPPLY MODE		CONTINUOUS INK SUPPLY SYSTEM
COLORS		CYAN,MAGENTA,YELLOW AND BLACK 4/6COLORS OPTIONAL
AUTOMATIC NOZZLE CLEANING SYSTEM		ANTI-BLOCKAGE & MOISTURIZING FUNTION
PRODUCTIVITY	360*360dpi	1PASS:150m2/h
	360*1200dpi	2PASS:84m2/h 1PASS:80m2/h
	360*1800dpi	3PASS:60m2/h 1PASS:80m2/h
	360*2400dpi	4PASS:42m2/h 2PASS:40m2/h
	360*3600dpi	6PASS:30m2/h 2PASS:46m2/h
RIP Software		MAINTOP/WASATCH/NEOSTAMPER
MAXIMUM PRINT WIDTH		1800MM
MEDIA		HEAT TRANSFER PAPER

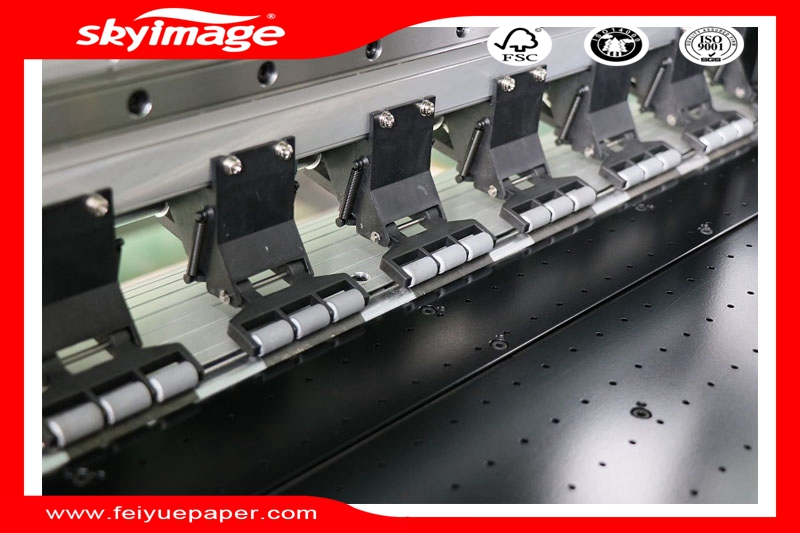

MEDIAADSORPTON SYSTEM		MULTI-AIR SUCTION SYSTEM WITH ADJUSTABLE STENGHT
HEATING SYSTEM		ADJUSTABLE EMBEDED HEATING SYSTEM
DRYING SYSTEM		EQUIPPED WITH COOLING FAN AND INFRARED HEATER WITH ADJUSTABLE TEMP
OPERATION SYSTEM		WIN7 64 BYTE
RIP SOFTWARE		MAINTOP/WASATCH/NEOSTAMPA
DATA TRANSMISSION INTERACE		HI-USB2.0/3.0 MBPS
POWER		AC 220V 50HZ/60HZ 1500W
ENVIRONMENT	TEMPERATURE	15-25ºC
ENVIRONMENT	HUMIDITY	45-65%
DIMENSION(MACHINE)		28209001550mm
DIMENSION(PACKING)		THE MAIN PART:2950760740mm THE BASE PART:2400500520mm
MACHIINE WEIGHT		250kg (MAIN 175kg/BASE 75kg)
PACKING WEIGHT		325kg (MAIN 215kg/BASE 110kg)
ACCESSORIES		Standard package: Including one set computer which installed Rip Software, Ink cartridges, USB Cables, Manual, Toolkit, Wearable spare parts, 1 set sublimation ink and 1 roll sublimation paper.

The application of this machine

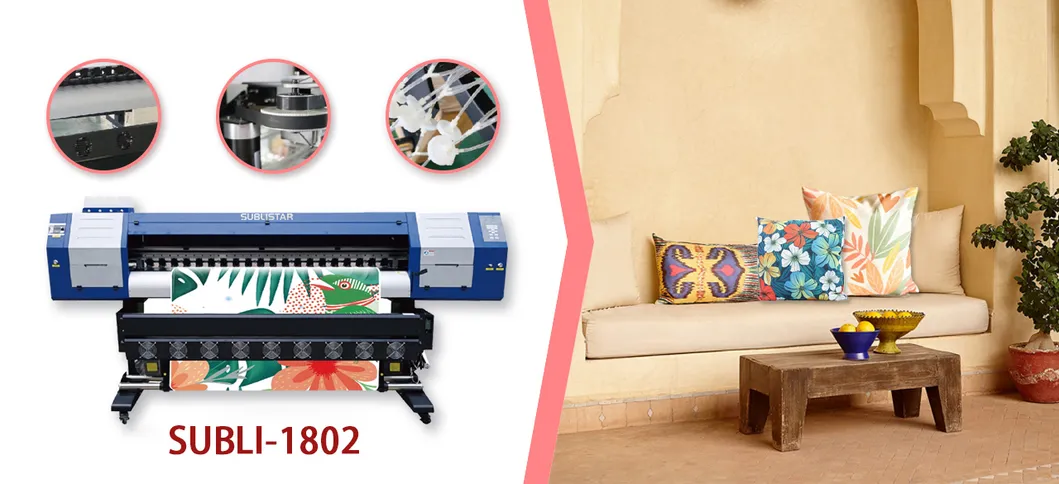

Sublistar 1.8m Large Format Dye Sublimation Printer

Integrated IR & Heating dryer system
Perfectly suitable for printing onto thin transfer media, you can easily produce fashion, apparel, sportswear, banner, flags, home decro and more.

Print speed up to150 square meters per hour. A high-performance printer delivers a cost-effective dye-sublimation solution that offers you unprecedented levels of quality and productivity.

Epson I3200 print head has 3200 nozzles, 4 pairs of 8 rows of nozzles, the unique VSDT (Variable Droplet Technology) can freely control the ejected droplet size to achieve high image quality Coexist with high-speed printing.

Sublistar sublimation printer can load 500m of printing materials at a time, saving time for changing printing paper, saving production costs and improving production efficiency.

High-quality belt chain, to make print head print carriage running more smoothly. 2/ 3/ 4pcs Epson i3200 print heads optional. Best optimized print heads arrangement
