China Tecjet Dx5, Dx7, XP600 Printhead 3350 UV Flatbed Printer Solid Surface Machine

Product Description

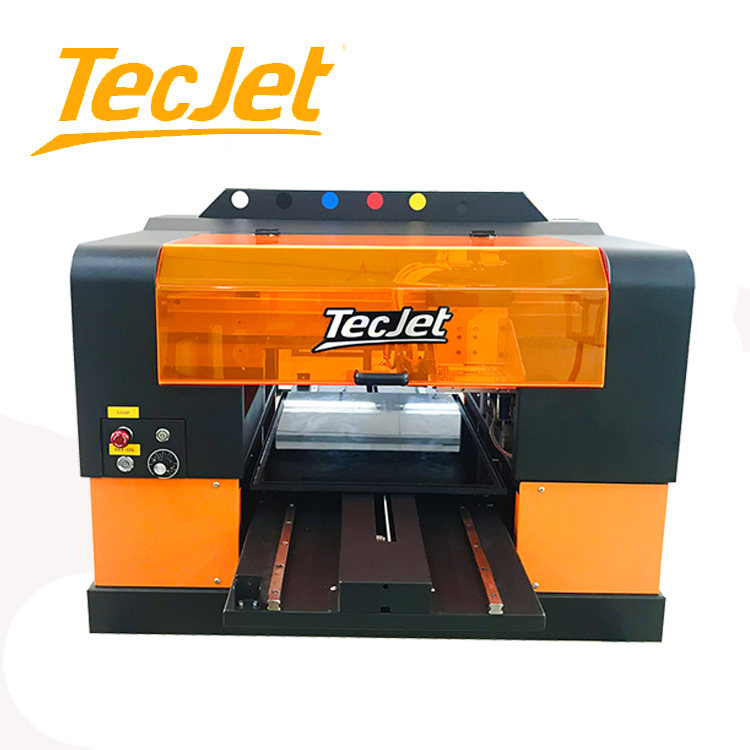

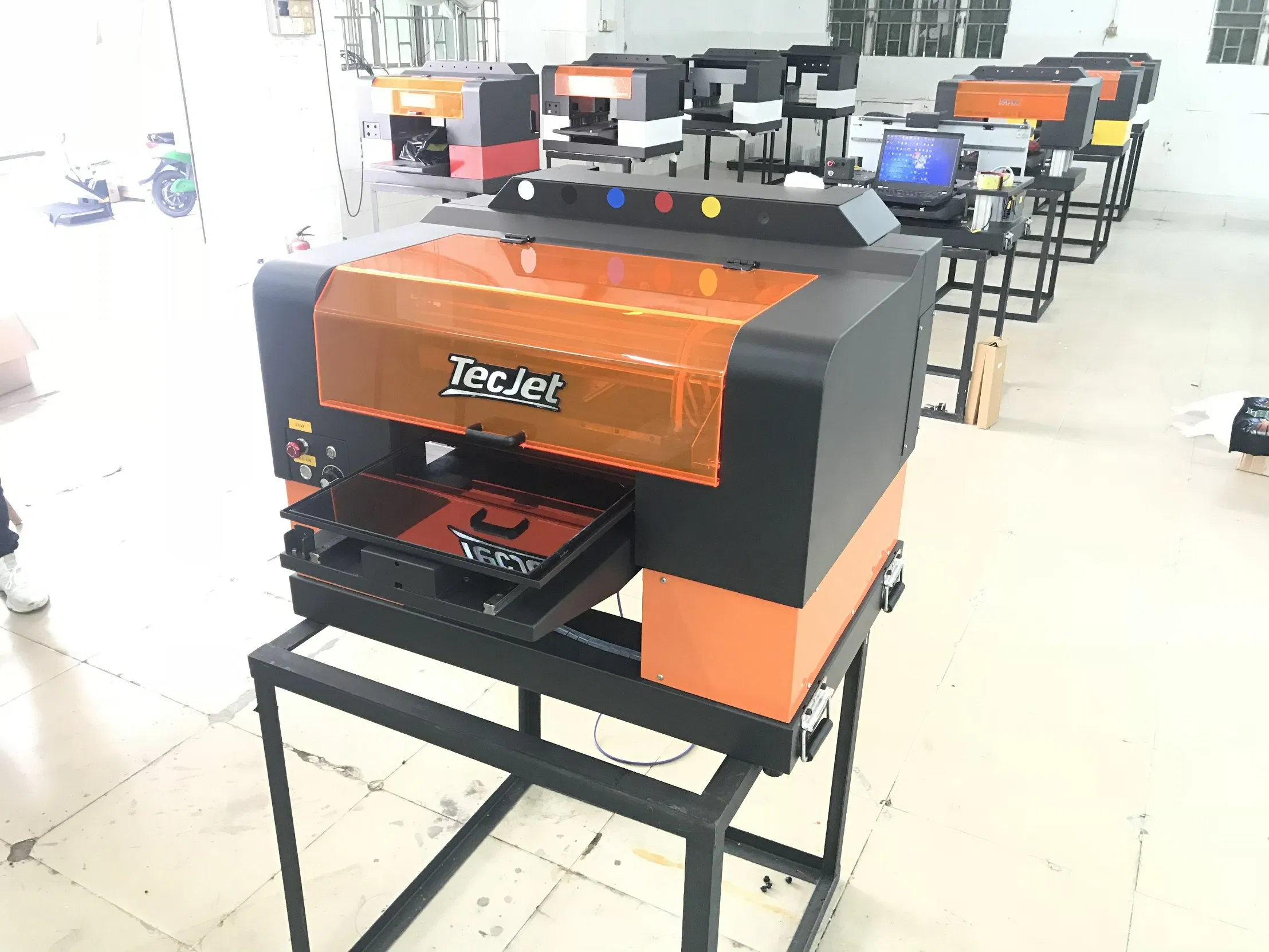

TECJET Dx5, DX7,XP600 printhead 3350 uv flatbed printer solid surface machine

Please visit our YOUTUBE site for video. Click the link :https://jimizhu.en.made-in-china.com (Copy this link to the youtube page)

Please visit our FACEBOOK site for customer feedback.Click the link : https://jimizhu.en.made-in-china.com

Transport simulation test link:https://videocdn.taobao.com/oss/taobao-ugc/19f70ac4816649b2b1d45523380c6dde/1508823698/video.mp4

Specification

Model		tecjet 3350uv
LED-UV Function	UV lamp system	6 Power degree adjustable system
	UV Power	100W
	UV lamp life time	50000hours
	UV light wavelength	390-400nm
	Light power	500mw/w
	Cooling type	Water circulation
	Cooling adjustment	Automatic on/off between 25-30c
	Control Software	wellprint
Repeat printing precision		Overlap small than 0.1mm
Head maintain		Head clean during/after printing, Keep-wet system when idle.
Ink system		Ink damper refill system

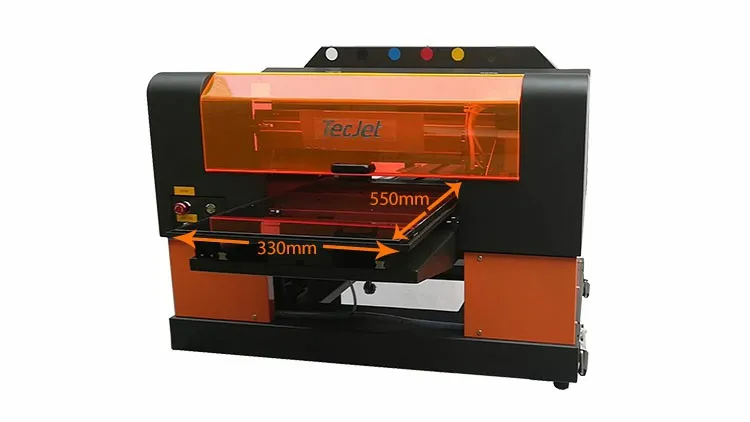

Max. printing size		A3+: 330mm*600mm

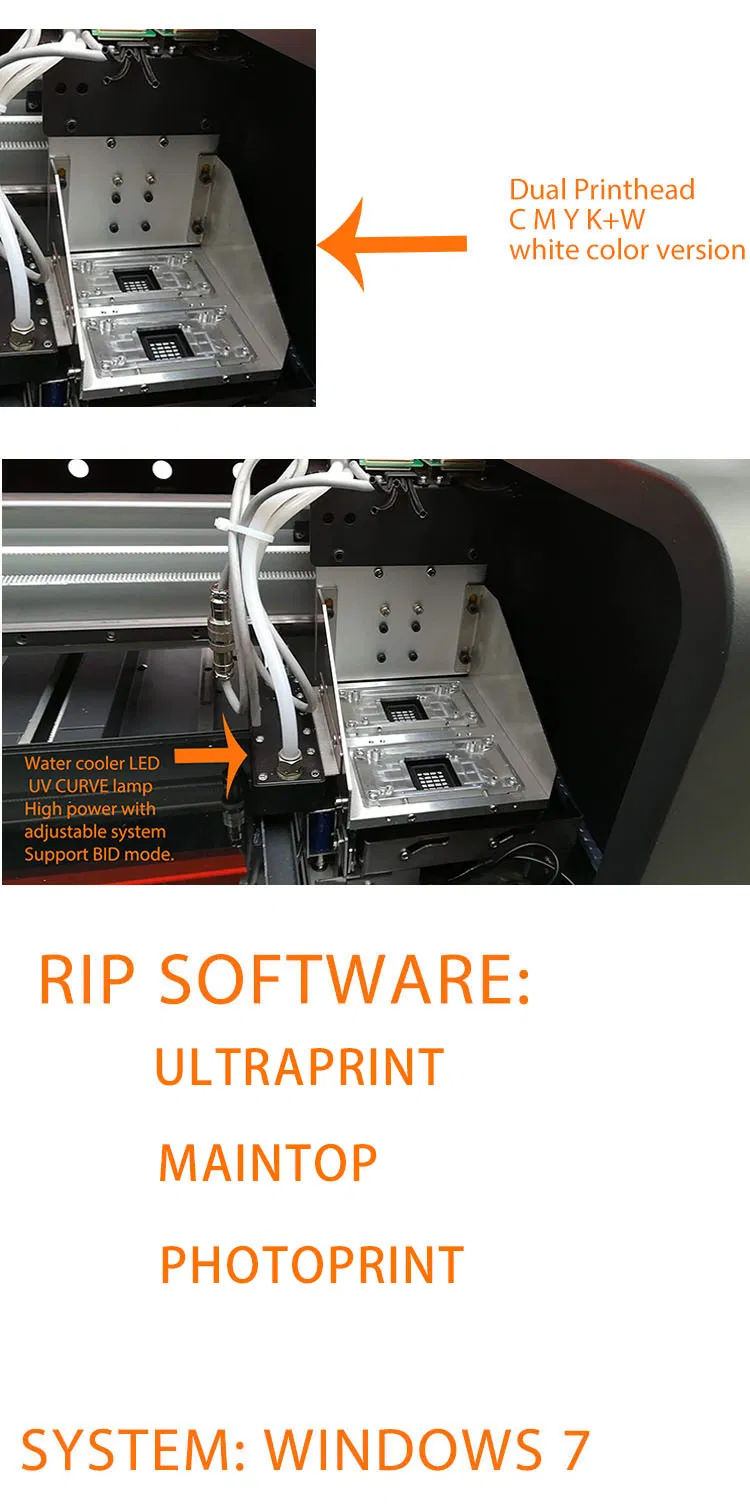

Print head		2 peices DX10 piezo head with 1440 nozzles
Print color		CMYKWW+WWWWWW
Print direction		Unidirection / Bidirection
Print speed		A3(1440dpi)/ 90s

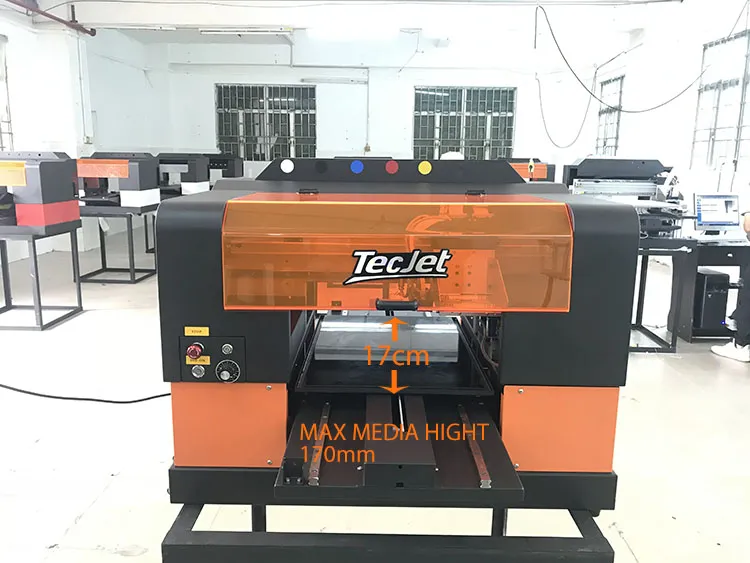

Max. media thickness		17CM
Max. media weight		15KG
Max. printing resolution		5760dpi*1440dpi
Ink volume		150ML
Ink type		UV environmentally ink
Height adjustable		Manual / Automatic
Print head protection		Intellective automatic detect
Working power		110-220V 50-60HZ 75W
Interface		USB2.0 /IEEE1394
System require		Windows XP / Win7
Working enviroment		25-30C, 50% Humidity, Dust free
Net weight/Gross weight		90KG/110KG
Printer size		89CM75CM56CM
Packing size		103CM98CM65CM
