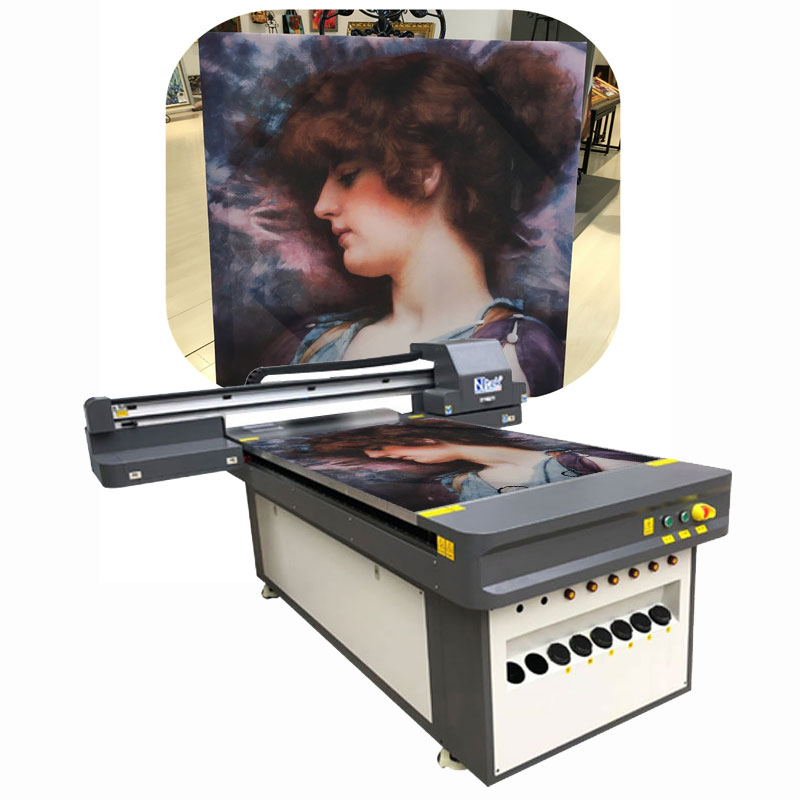

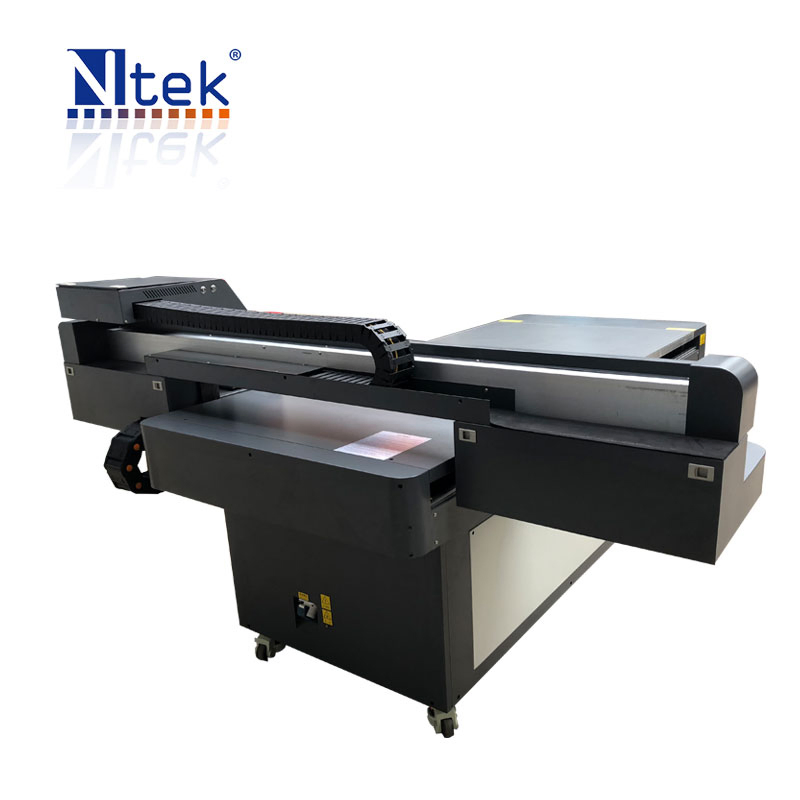

UV Small Format Digital Flatbed Printing Machine with Gh2220 Printhead
Main Features: Japanese imported printhead for high quality and fast speed printing. CMYK white and varnish optional for glossy surface and high quality printing Upgraded negative pressure system to ensure high accuracy Vacuum bed to hold the flexible media like PVC, foam board, acrylic sheet ......
Send Inquiry
Product Description
Main Features:
Japanese imported printhead for high quality and fast speed printing.
CMYK white and varnish optional for glossy surface and high quality printing
Upgraded negative pressure system to ensure high accuracy
Vacuum bed to hold the flexible media like PVC, foam board, acrylic sheet etc.
Applications in advertising& signage industry and decoration industry
Can print on Glass, Metal, Ceramic Tiles, PVC, Acrylic, Leather, Plastic, Wood, etc.
Cylinder bottles, cups printing with rotary tooling available
Printing Materials:
UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal
panel, aluminium sheet, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated
cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.
Product Specification:
Product Model | YC1016 |
Printhead Technology | Drop-on demand piezo electric |
Printhead Control | Printhead voltage is software adjustable |
Printhead Type | EPSON DX5/DX7/XP600/TX800/RICOH GEN5/GH2220/TOSHIBA CE4 |
Printhead Number | 2/3/4/6/8 |
Ink Characteristics | UV Curing Ink |
Ink Reservoirs | Refillable on the fly while printing/1000ml per color |
LED UV Lamp | More than 20000-hours life |
Color Control | ICC based color, curves and density adjustment |
Printhead Arrangement | CMYKW varnish optional 3-12sqm/h |
Cleaning System | Automatic Cleaning System, Automatic Dry-preventing System |
Guide Rail | Taiwan HIWIN |
Working Table | Vacuum Sucking |
Printing Size | 1000*1600mm |
Print Interface | USB2.0 |
Media Thickness | 0-100mm |
Print Resolution | 360dpi, 720dpi, 1440dpi, 2160dpi |
Life of Printed Image | 3 years(outdoor),10years(indoor) |
File Format | TIFF,JPEG,Postscript,EPS,PDF etc. |
RIP Software | UltraPrint/ Photoprint |
Power Supply | 220V 50/60Hz(10%) |
Power | 1100W |
Operation Environment | Temperature 20 to 30ºC,Humidity 40% to 60% |
Machine Dimension | 2380*2100*1230mm |
Packing Dimension | 2600*2250*1500mm |
Weight | 500kg |
Warranty | 12 months exclude the consumables |

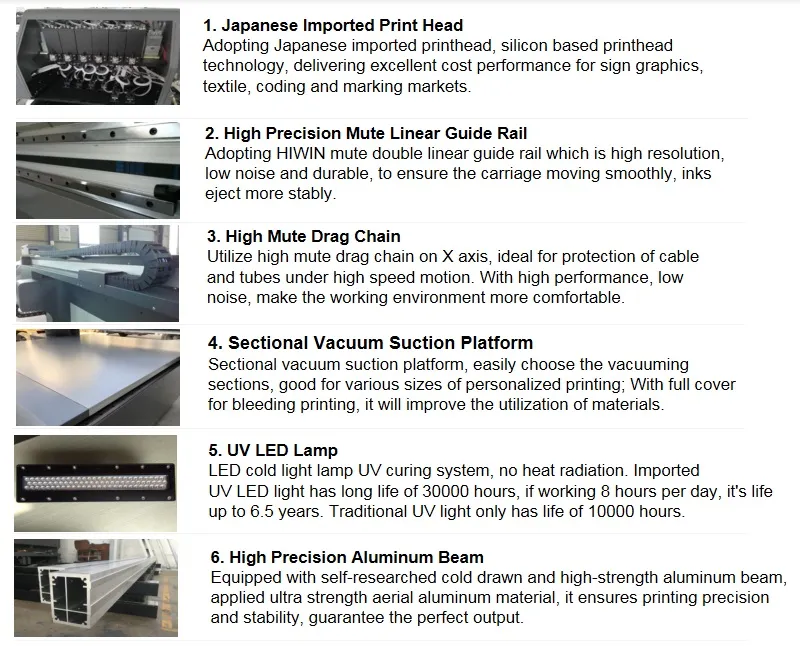

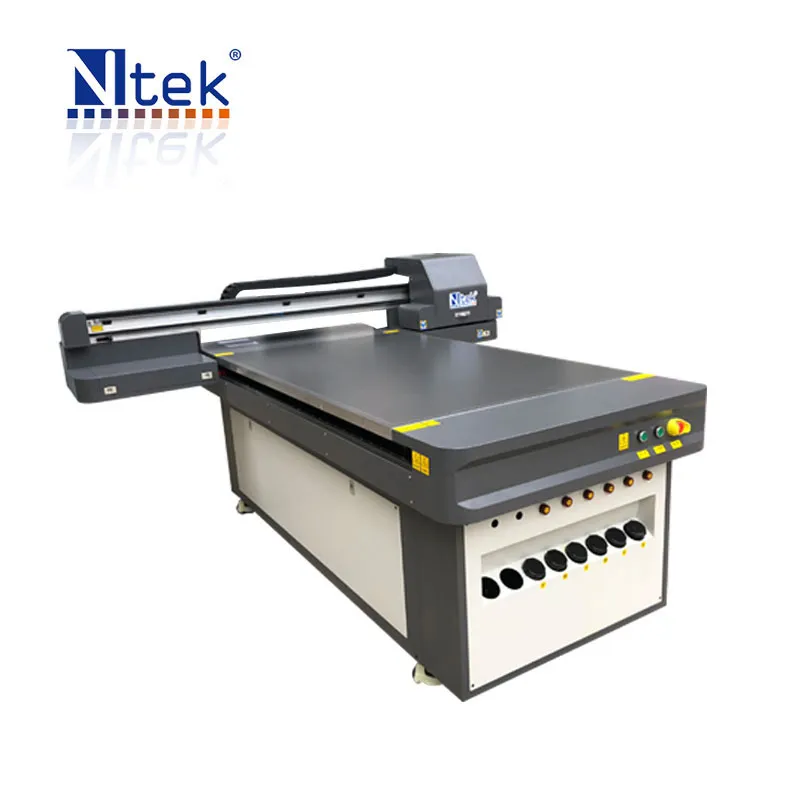

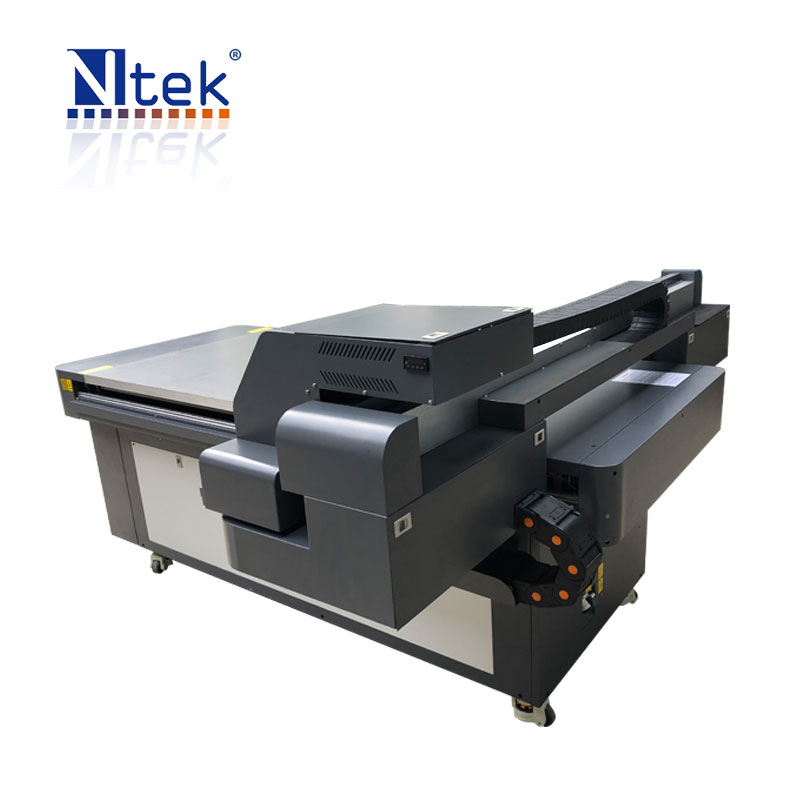

Product Details:

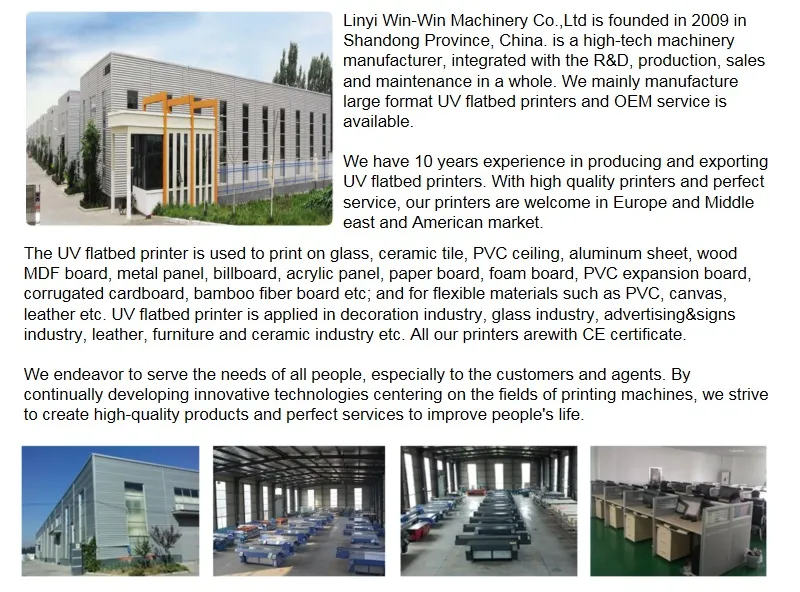

Company Information:
Printing Sample:
Our Team:

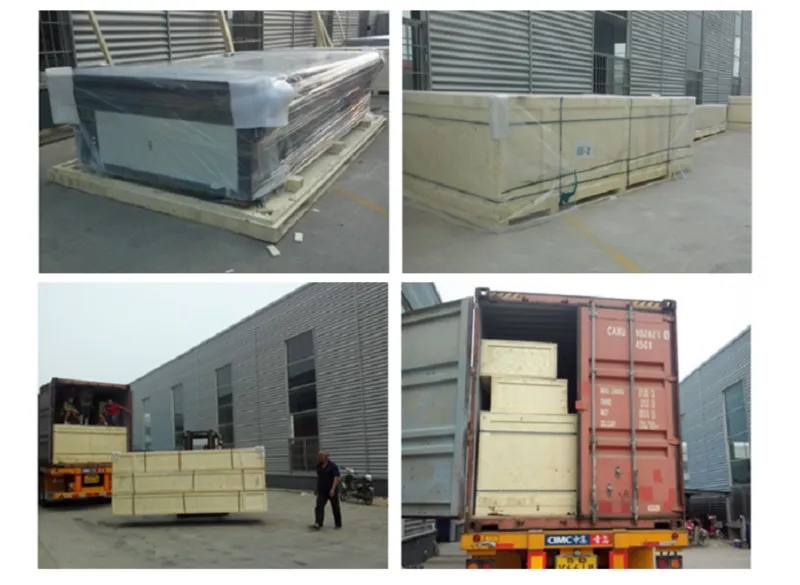

Packing&Shipping:
FAQ:
1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability,best result.
3. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers.
But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
4.Are you a manufacturer or trade agent?
We are the manufacturer of Uv flatbed printers.
5. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the
main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump,
printhead, ink filter, and slide block since they are consumables.
6. How can I install and start to use the printer?
At first, you should read the users' manual to understand the machine and watch the video. After you get the
machine, our technician will teach you how to install and use-machine by remote control via Teamviewer or Skype.
Whenever you have questions to the machine, you can contact our technician or me.
7.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
8. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send new part within 48hours by
express like TNT, DHL, FEDEX etc to the buyer. An shipping cost should be born by the buyer.
9. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc.
