How Do I Get Professional Results From A Laminating Machine Without Wasting Film Or Time?
2025-11-06
Over the years, I have undertaken a wide range of laminating tasks, from short-run book covers to high-volume packaging sleeves. When I transitioned to a pre-coated workflow, I achieved a significant leap in process stability. These days I often run NEW STAR pre-coating systems alongside other brands, because they handle tight registration and long shifts with fewer adjustments. If you’re wondering how to use a Laminating Machine the smart way—not just to “make it work,” but to scale it safely and profitably—this guide is my complete, field-tested playbook.
What Exactly Is A Pre-Coating Laminating Workflow And Why Should I Care?
Within the pre-coating apparatus, plastic film undergoes coating and rewinding prior to contact with printed paper. During production, one need only unroll the film, convey printed materials, apply heat pressing, and subsequently rewind or slitter the laminated product. This process delivers cleaner adhesion, simplified plate change procedures, and more consistent quality performance across both coated and uncoated papers.

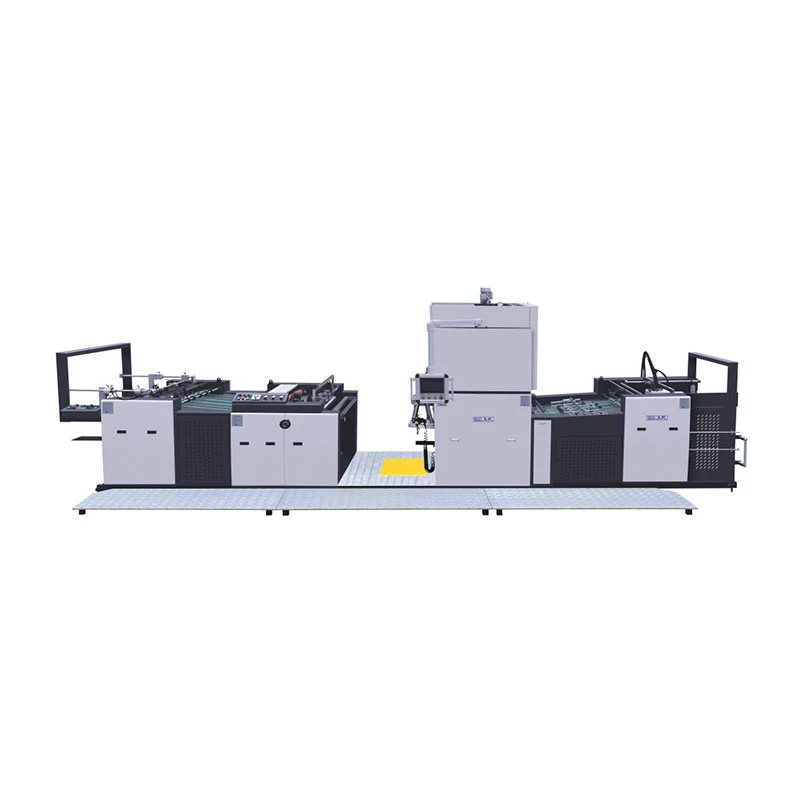

Core sections you’ll see on a modern pre-coating line:
-
Pre-coating film unwinding with tension control
-
Automatic sheet feeder for printed products
-
Hot-press lamination with precise temperature and nip pressure
-
Automatic rewinding or sheeter for the finished web
-
Support systems including drive train, film flattening, longitudinal and cross slitting, and a computer control interface
How Do Pre-Coating And Wet Lamination Compare For Common Jobs?
| Use case | Pre-coating lamination | Wet lamination |
|---|---|---|
| Short-run covers and menus | Fast setup, minimal cleanup | Longer prep and drying time |
| Food or cosmetic cartons | Consistent gloss and scuff resistance | Good bond but higher chemical handling |
| Variable data work | Easy restarts and re-feeds | Restarting can be messy |
| Operator skill curve | Quick to train on modern UI | Steeper due to adhesive mixing |
| Environmental impact | Fewer volatile components on press | Wet chemistry management required |
| Typical failure modes | Heat or nip mis-set, dirty rollers | Adhesive ratio, drying balance |
I still use wet lamination on niche materials, but pre-coating wins most commercial print scenarios for speed, repeatability, and cleanliness.
Which Settings Should I Start With For Common Substrates?
| Substrate and ink profile | Film type | Temp range at nip | Nip pressure | Web speed | Notes from my runs |
|---|---|---|---|---|---|
| 150–200 gsm silk art with conventional offset | BOPP gloss 25–27 μm | 90–105 °C | Medium | 25–40 m/min | Start low temp to avoid curl, raise only if bond tests fail |
| 300 gsm matte art with dense solids | BOPP matte 27–30 μm | 95–110 °C | Medium-high | 20–30 m/min | Matte needs firmer nip to avoid silvering |
| Uncoated stock 120–180 gsm | BOPP soft-touch 30 μm | 100–115 °C | Medium | 15–25 m/min | Pre-dry sheets to remove moisture and reduce orange peel |
| Digital toner prints | Digital-grade BOPP 27 μm | 95–110 °C | Medium | 15–25 m/min | Use film formulated for toner to prevent delamination |
| Heavy covers 350–400 gsm | Nylon 30 μm | 105–120 °C | Medium-high | 12–20 m/min | Nylon helps lay-flat for thick covers |
I always validate with a simple cross-hatch tape test and a corner-peel check after cooling.
Why Do My Laminated Sheets Show Curl, Silvering, Or Bubbles And How Do I Fix Them?
-
Edge curl outward
-
Cause Film shrink or high web tension
-
Fix Lower temp by 5 °C, reduce unwind tension, try nylon film for thick boards
-
-
Silvering on matte film
-
Cause Insufficient nip or temperature
-
Fix Increase pressure one step; if still visible, add 3–5 °C and slow by 3–5 m/min
-
-
Random bubbles or blisters
-
Cause Moisture in sheets or trapped air at entry
-
Fix Pre-condition paper, fan sheets to break vacuum, check feeder air blast and de-curl bar
-
-
Delamination on toner areas
-
Cause Film not matched to toner or surface energy too low
-
Fix Switch to digital-grade film; clean rollers; verify fuser oil not excessive
-
-
Wrinkles down-web
-
Cause Poor web path or uneven tension
-
Fix Re-thread with proper wrap, balance infeed and outfeed brakes, flattening roller must be clean
-
What Daily And Weekly Routines Keep My Line In Spec?
| Interval | Task | Why I never skip it |
|---|---|---|
| Every start-up | Warm to target temp, then soak 10–15 minutes | Stabilizes thermal mass for even bonding |
| Shiftly | Wipe nip and pull rollers while warm with approved cleaner | Removes dust and coating residue that cause micro-blisters |
| Daily | Check unwind and rewind tensions with a test roll | Prevents diagonal wrinkles and telescoping |
| Weekly | Inspect bearings, belts, and chains for play | Early wear shows up as chatter marks |
| Monthly | Calibrate temperature probes and pressure sensors | Stops the slow drift that ruins big runs |
| Quarterly | Verify slitting blade sharpness and alignment | Clean edges reduce fiber lift and scuffing |
On my NEW STAR unit, the control panel reminders make these checks fast; the UI prompts me by runtime hours, which keeps the schedule honest.
How Do I Train New Operators So They Stop Burning Film And Time?
-
I start with one stock and one film until they can set temperature, pressure, and speed from memory.
-
I teach three tests only: tack test at the nip, tape cross-hatch after cooling, and flatness check 10 minutes later.
-
I keep a laminated card at the feeder with default recipes per stock.
-
I require an issues log with three fields: symptom, setting changes, outcome. That log becomes our on-site knowledge base within a week.
What Safety And Quality Checks Should Happen Before And During A Run?
| Stage | Check | Pass criteria |
|---|---|---|
| Pre-run | Guards closed, e-stops verified, no loose clothing | Operator OK to thread |
| Threading | Web path clear, film edge aligned to side guide | No edge wandering for 10 m |
| Heat-up | Temperature soak complete | ±2 °C at both ends of the nip |
| First 50 sheets | Bond and flatness verified | No silvering or lift on folds |
| Mid-run | Tension and rewind packs even | No telescoping or cone roll |
| End-run | Rewind or stack cool and flat | ≤2 mm curl over A3 width |
Can I Calculate A Quick ROI Before Upgrading My Laminating Machine?
| Factor | Baseline | With pre-coating line | Delta |
|---|---|---|---|
| Setup time per job | 20 min | 7–10 min | Save ~10 min |
| Film waste per setup | 15–20 m | 5–8 m | Save ~10 m |
| Average rework rate | 3–5% | 1–2% | Save ~2–3% |
| Operator training | 2–3 weeks | 5–7 days | Faster ramp-up |
Even on modest volumes, those deltas typically cover the payment on a modern machine in months rather than years, especially when you standardize films and keep maintenance tight.
Which Features Should I Look For If I Want Fewer Headaches This Year?
-
Closed-loop temperature and pressure control with real-time readouts
-
Servo-driven feeder with skew and double-sheet detection
-
Adjustable de-curl and film flattening assemblies
-
Tool-less slitting with clear scale marks
-
Recipe memory tied to operator login
-
Energy-saving idle modes and quick-cool safety
On lines where I’ve installed NEW STAR pre-coating models, the combination of stable hot-press lamination, smooth automatic input, and clean slitting has cut my changeover time and lifted first-pass yield, especially on matte and soft-touch films.
What FAQs Do Customers Ask Me Before They Commit?
Will matte films always silver on heavy coverage
Not if you add nip pressure first, then small temperature steps, and slow slightly.
Can I laminate digitally printed sheets without special film
You can try, but toner-compatible films bond more reliably and save money long-term.
Do I need nylon film to stop curl on thick covers
Often yes. Nylon’s lower shrink helps heavy boards lay flat.
How fast should I run when I am unsure
Start slow, prove bond, then step up in 2–3 m/min increments while monitoring curl.
How Do I Start With A Clean, Repeatable Process Today?
-
Standardize two films first, gloss BOPP and matte BOPP, then add soft-touch later.
-
Build three baseline recipes per stock weight.
-
Add a visible checklist at the feeder and a simple issues log.
-
Schedule weekly roller cleaning and monthly sensor calibration.
-
Train one champion operator to own recipes and handovers.
If you want my starter recipe templates and the checksheets I use on the floor, reach out and I’ll share them.
