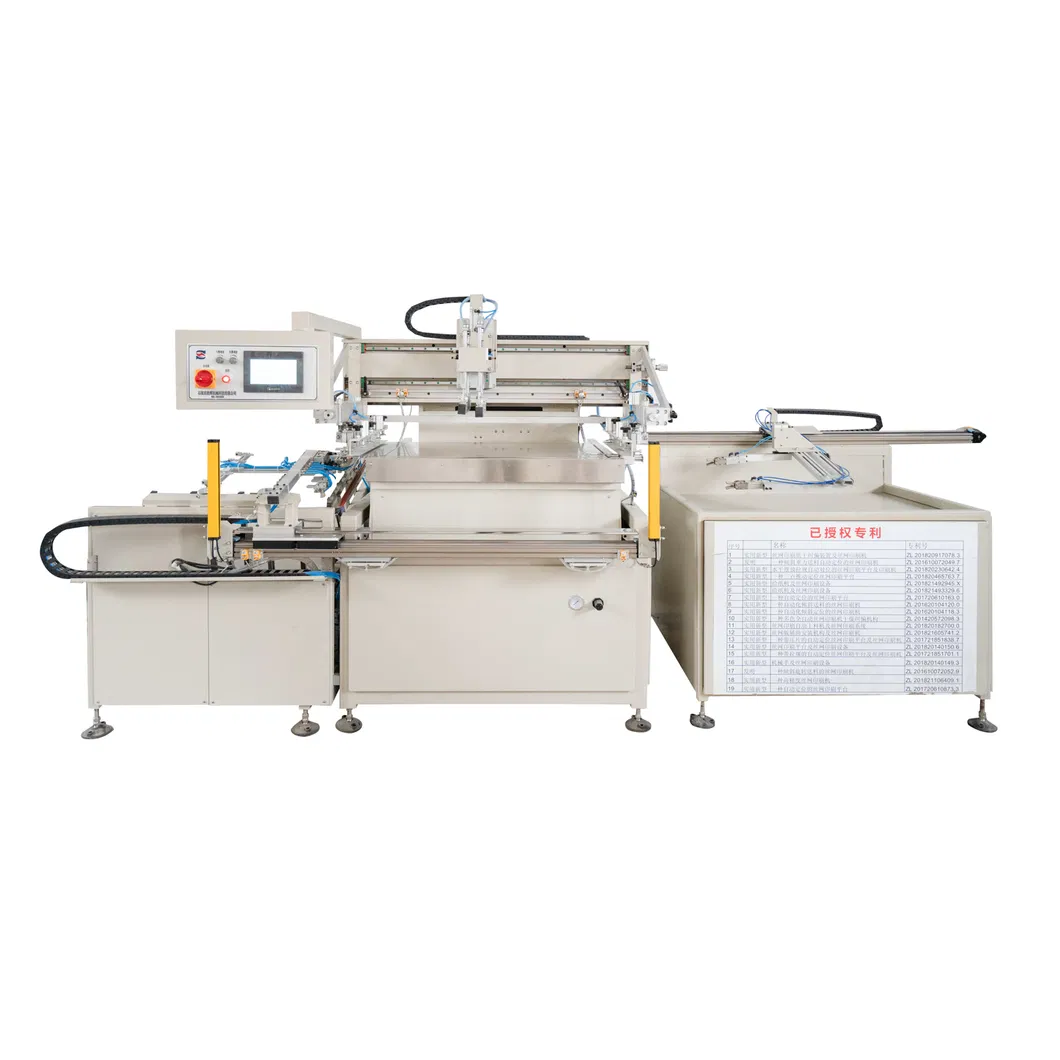

China Supplier HY-H56 Automatic Single Sheet Screen Printing Machine with Paper Clip Dryer.
HY-H56 Automatic Screen Pringting MachineProduct Introduction:A new model that replaces the flat-lift semi-automatic screen printing machine, and realizes automatic feeding, automatic alignment, automatic printing, and automatic reclaiming of automatic screen Printing; touch screen control, simple a......
Send Inquiry
Product Description
HY-H56 Automatic Screen Pringting Machine
Product Introduction:
A new model that replaces the flat-lift semi-automatic screen printing machine, and realizes automatic feeding, automatic alignment, automatic printing, and automatic reclaiming of automatic screen Printing; touch screen control, simple and easy to learn, reduces labor intensity and technical requirements for operators, and allows the machine to ensure the printing speed and accuracy to achieve More stable printing effect; it has the advantages of automatic machine to save labor and the flexibility of semi-automatic machine in small batches; it can continue to use the original semi-automatic machine screen Version to reduce cost input.
The printing speed is 900 sheets/hour, and the repeat positioning accuracy is less than 0.5mm. It can be equipped with tunnel dryer, UV curing machine, and paper clip dryer.
Product specifications and technical parameters:
| Maximum printing area(mm) | 500*650 mm |
| Repeatability | <0.05 |
| Workbench size(mm) | 590*860 mm |
| Maximum frame size(mm) | 750*1030 mm |
| Print thickness(mm) | 0-1mm |
| Maximum printing speed(mm/h) | 900 pcs/h |
| Squeegeen skewness | 0~30. |
| Screen vertical and horizonal adjustment | +- 10mm |
| Dimensions L*W*H (mm) | 2100*1200*1650 mm |
| Machine weight(kg) | 800 mm |
| Power supply | 3N-50HZ 380V 3KW |
| Air source pressure (Mpa) | 0.4~0.6 Mpa |

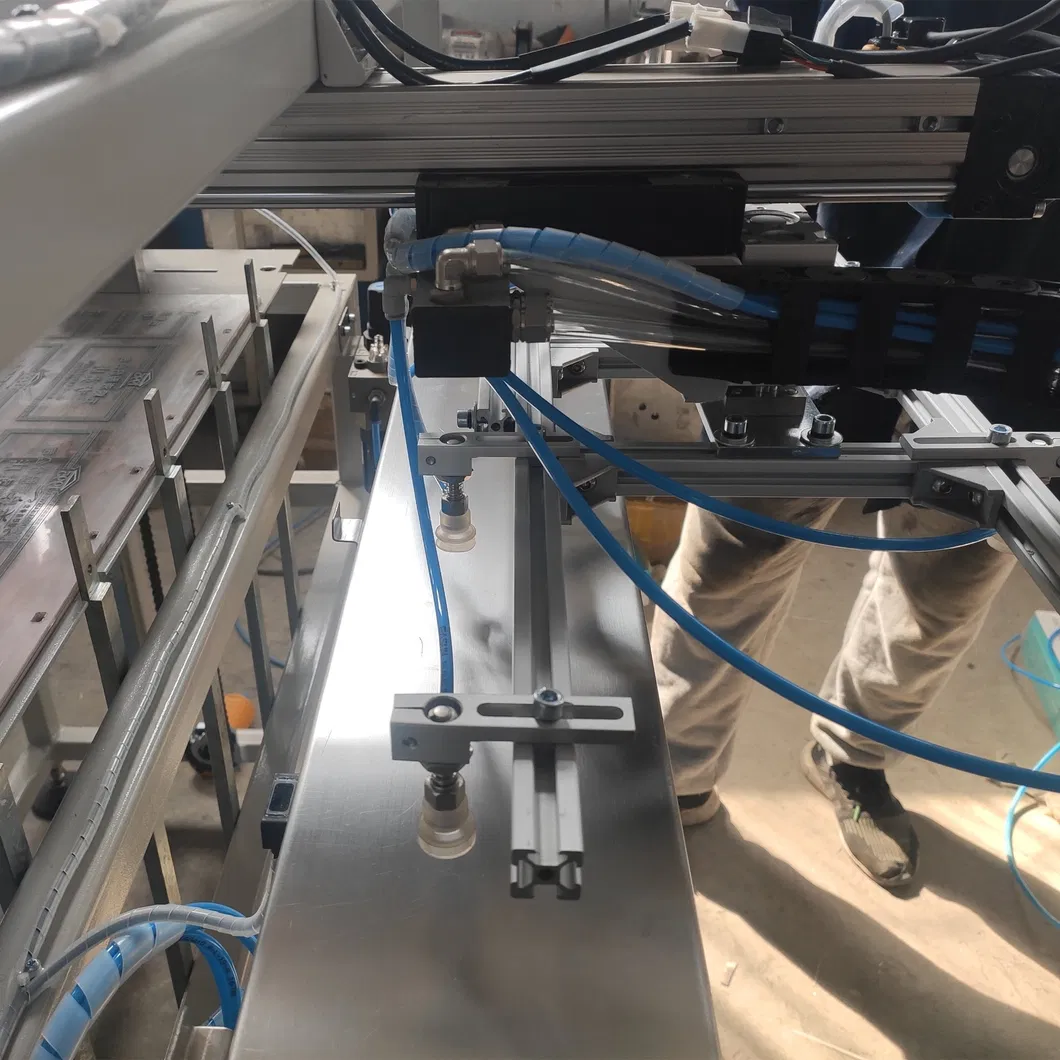

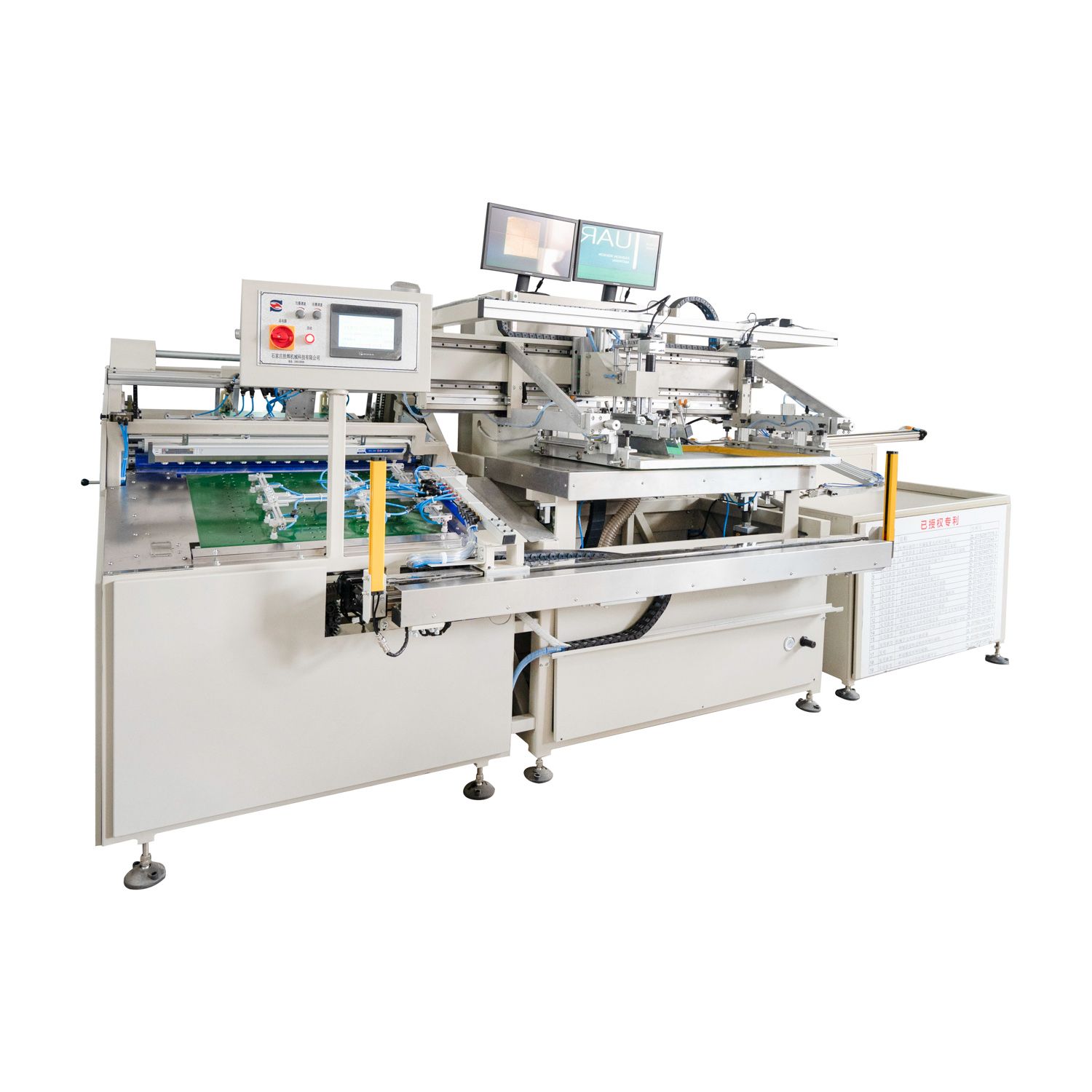

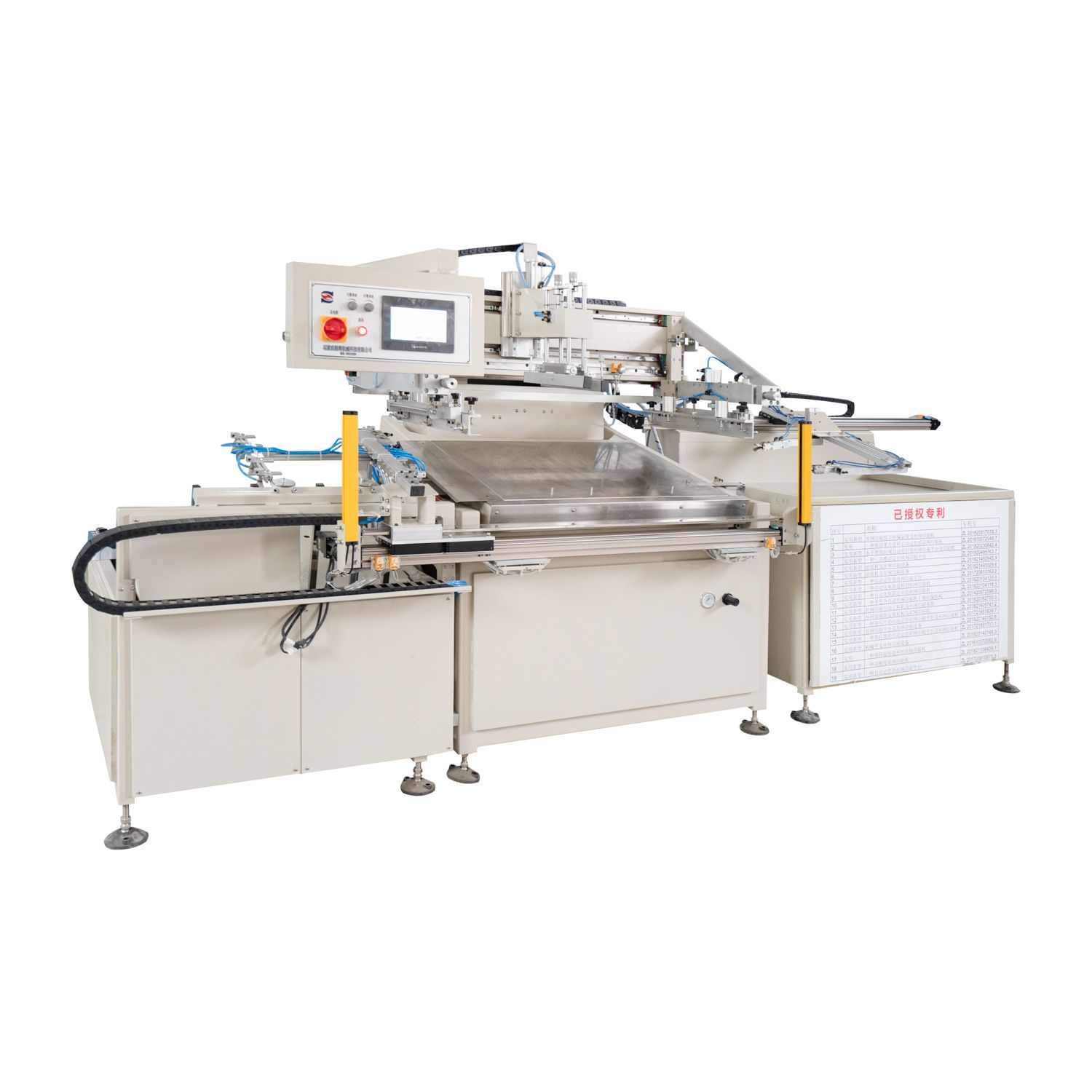

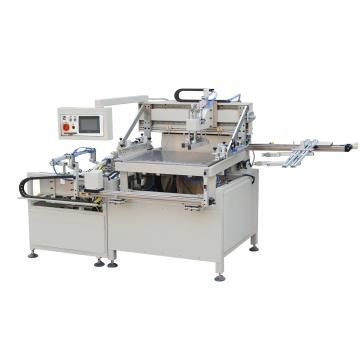

Machine photos:
Automatic screen printing machine process:
Raw material---automatic feeder---automatic printing machine---automatic oven---automatic rewinding---die cutting, cutting/cutting---finished product.
Automatic feeding, printing, drying, and receiving, one-stop computer program control is completed, and the degree of automation is extremely high. Save labor and greatly improve production efficiency.

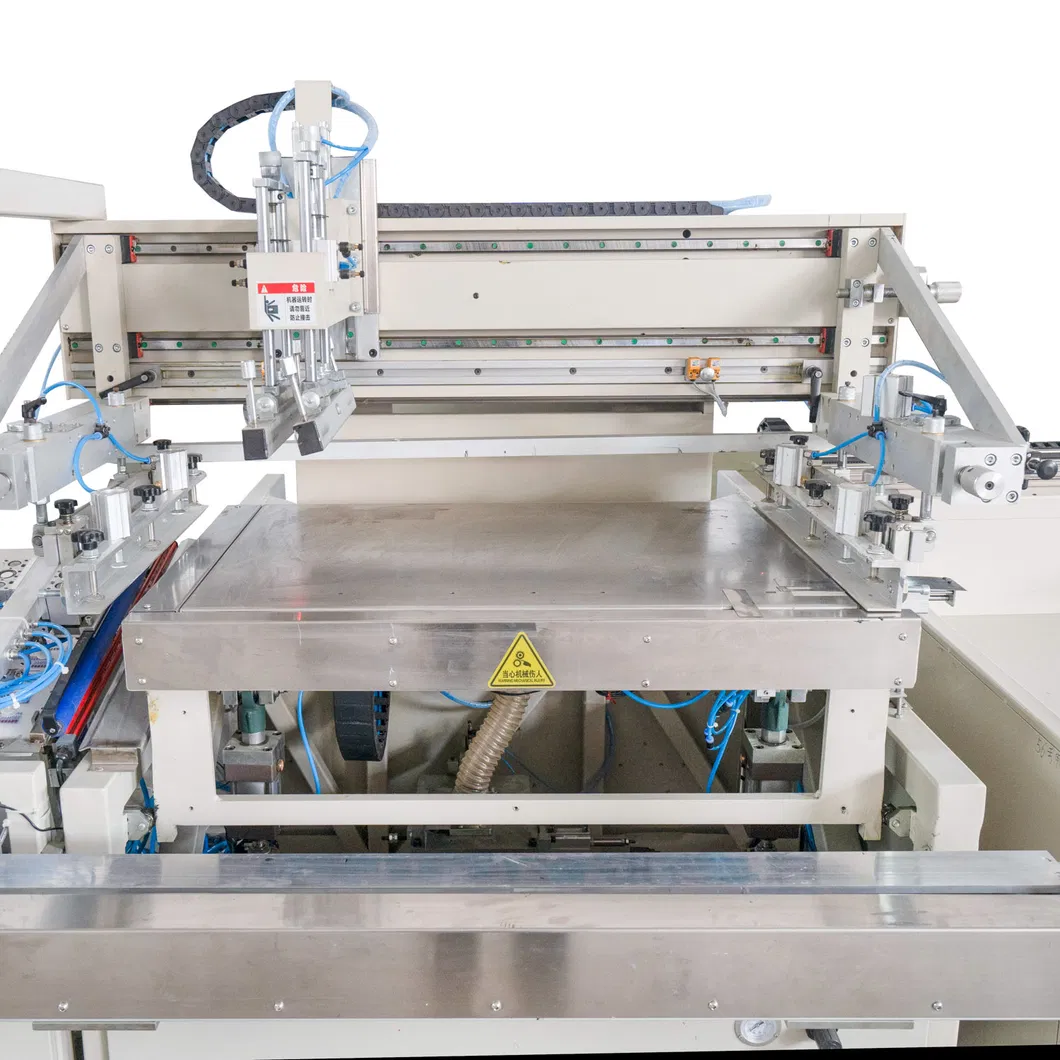

Printing Table touch screen control, simple and easy to learn, reduces labor intensity and technical requirements for operators, and allows the machine to ensure the printing speed and accuracy to achieve More stable printing effect; it has the advantages of automatic machine to save labor and the flexibility of semi-automatic machine in small batches; it can continue to use the original semi-automatic machine screen Version to reduce cost input. |  |

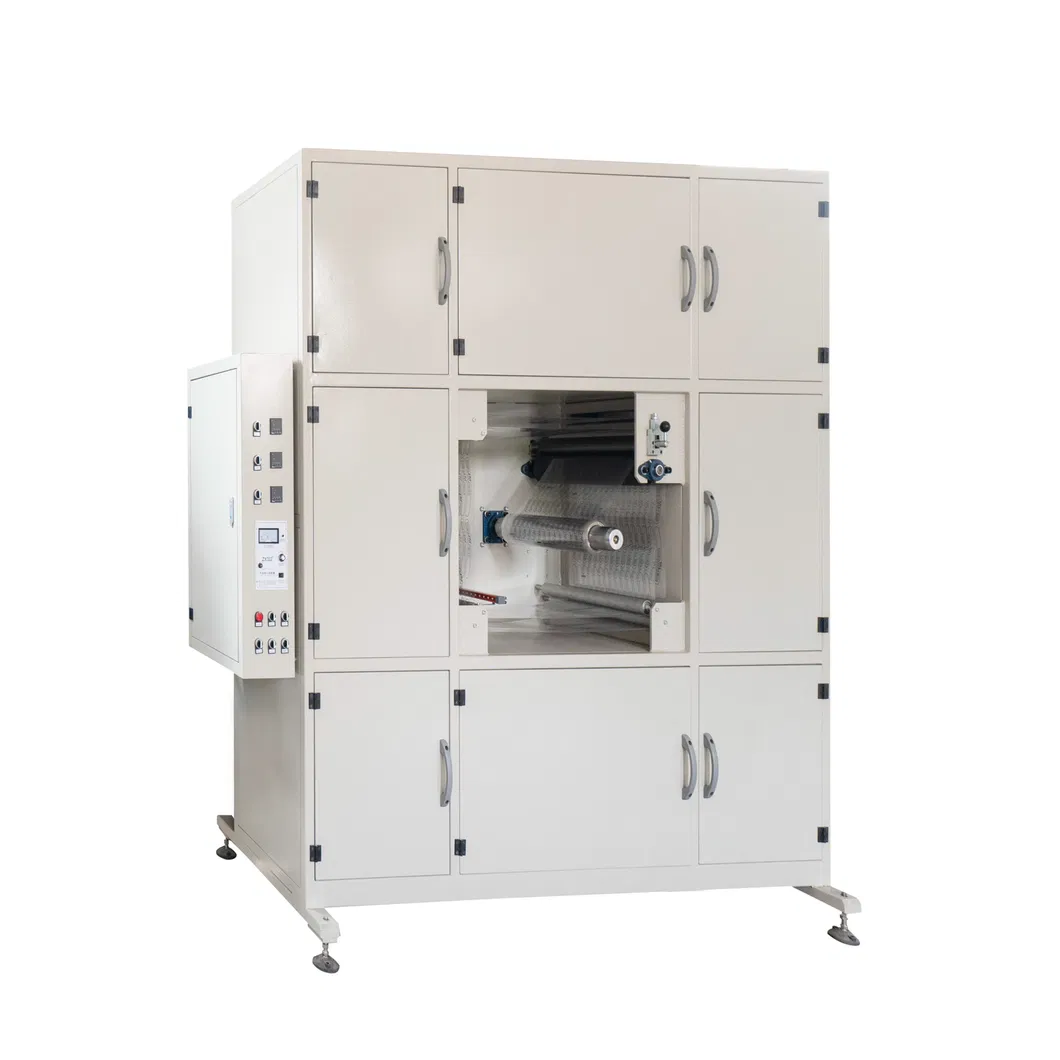

 | Dryer box: Circulating hot air drying, adjustable temperature, automatic winding; power saving, energy saving and environmental protection; |

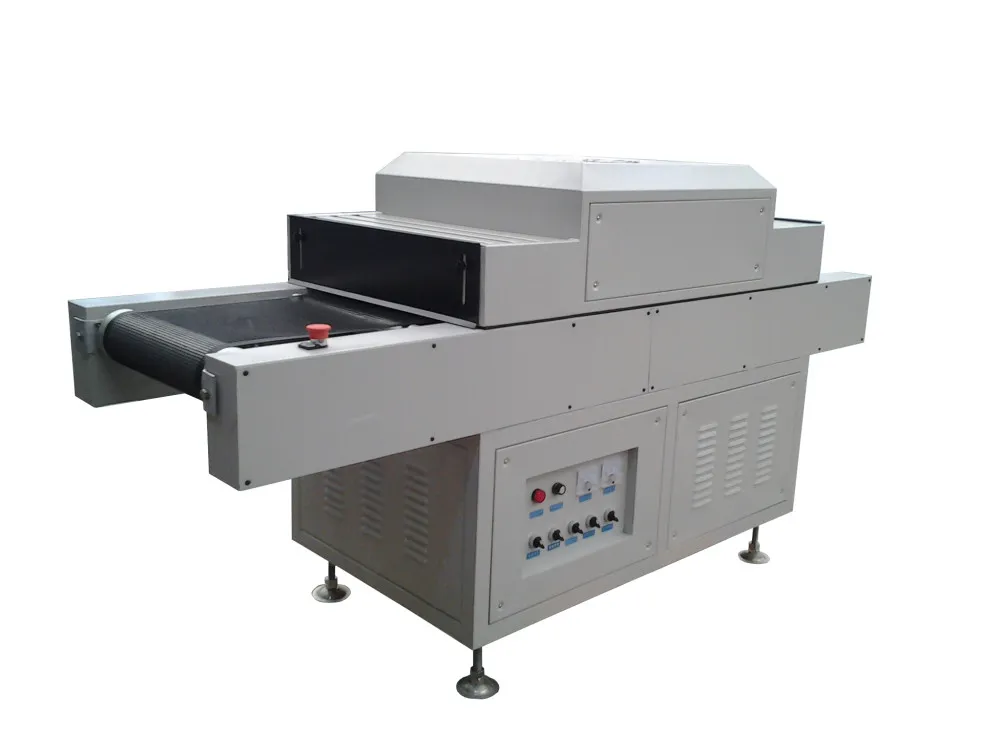

UV curing machine: The hot air circulation system is equipped with uniform temperature and air volume, so that the printed product can not only dry quickly, but also has a small shrinkage rate, ensuring the overprint accuracy of the printed product. |  |
 | Receiving machine Using PLC program control, easy to operate, safe and reliable. Greatly improve production efficiency and quality. |
inted Samples:

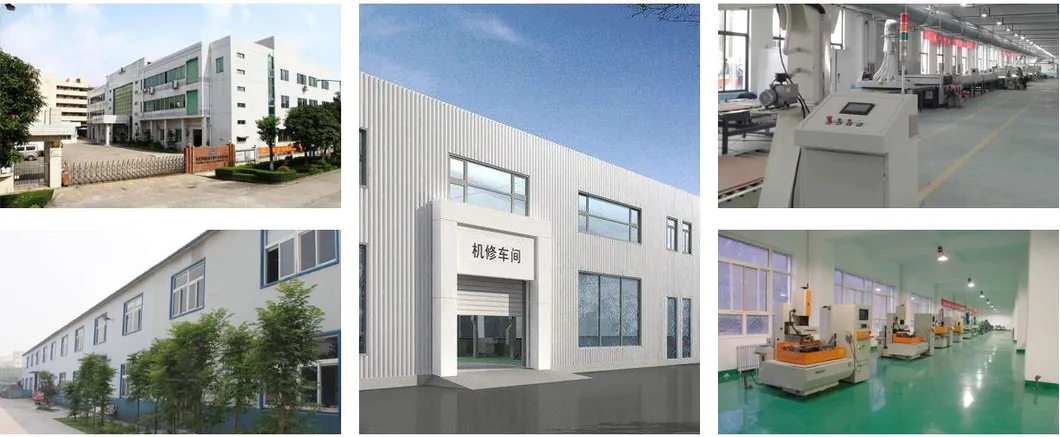

About us :
Shijiazhuang Shenghui Machinery Technology Co., Ltd. is an enterprise specializing in the production of flat screen printing equipment. The company integrates research, design, production, development, and sales. With the tenet of "practicality and innovation" and the principle of "integrity and pragmatism", the company serves customers with sophisticated design and perfect technical support.
Packging:
Transport:
FAQ:
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color,
thickness, quantity, etc.
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment. Set research, design,
production, development, sales in one, to "practical, innovative" for the purpose, to "integrity,
pragmatic" as the principle, with exquisite design and perfect technical support to serve the majority
of customers.
Q:What's your MOQ?
A: One set.
Q:What`s the price term and payment method?
A:We usually use FOB,CIF
Payment method : 100% advance payment by T/T after contract signed,Western Union, or other payment method.
Q:Do you provide samples?
A:No, because the machine is too big and too heavy,so no samples are provided.
