China Desktop High Precision Semi-Automatic Screen Printer T1100/SMT Stencil Printer

Product Description

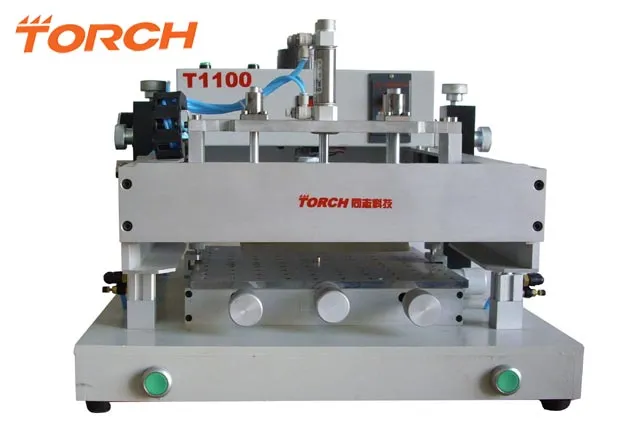

Desktop High Precision Semi-automatic Screen Printer T1100/SMT Stencil printer

Semi-auto Stencil Printer T1100 provides dual squeegee and stencil auto lift for high efficient and automatic production with fine pitch printing of solder paste under fine X, Y, Z, and θ Adjustments.

Double-sized PCBs print, magnetism thimble support and fix PCB.

Dual squeegee with its unique adjustable angle-of-attack for precise single or dual direction printing

Stencil lift and squeegee's up-and-down drive by speed control valve of cylinder.

Squeegee drive by micro motor

PLC control for high precision and low fault.

Japanese linear guide assures squeegee moves smoothly

Fine X, Y, Z, and θ Adjustments for exact stencil-to-board alignment

Max print area	220 ×180mm; 220×240mm (optional)
Max steel seat size	350x400mm
Frames size:	(400*350m)
Adjustable dual squeegee pressure/speed	Control by valve of cylinder
Adjusting stencil size/thickness	350×400mm/ 20mm
Squeegee	Drive by micro motor
Squeegee material	stainless steel
Adjustable motor-drive squeegee for single or dual passes	yes
Linear squeegee guide	Yes
Automatic power frame lift	yes
Magnetism thimble for double-sized PCBs	yes
Dual squeegee Adjustable angle of attack	Yes Yes
X & Y adjustment	+/-10mm
Z axis adjustment	15mm
Θ adjustment	Counter rotating dual knobs +/-5 ºC
Repeat accuracy	<0.03mm
Adjustable accuracy	<0.01mm
Ideal Max print accuracy	0.4mm IC, BGA with ball diameter> 0.3mm
Power supply	AC220V, 50Hz
Max power	60W
Air pressure	0.4-0.7 Mpa
Dimension	740×554×400mm
