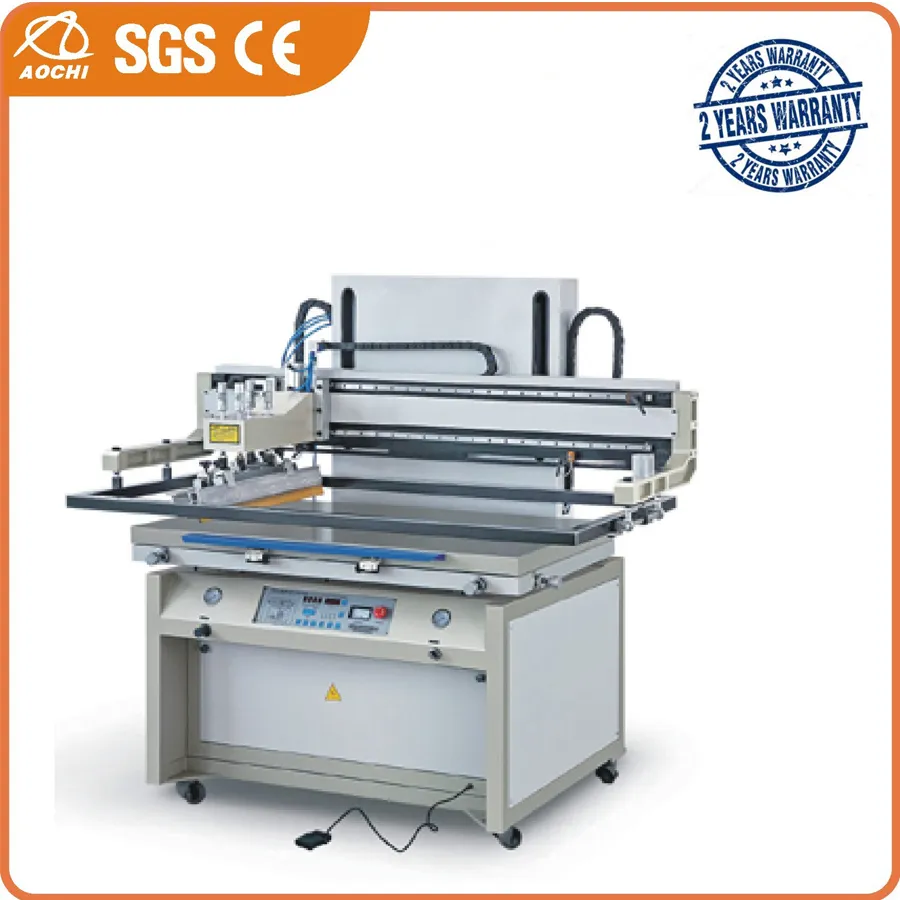

FB-12060 Horizontal-Lift Soft PVC Screen Printing Machine with CE
FB-12060 Horizontal-Lift Soft PVC Screen Printing Machine with CE1. Four cylinders motorized to achieve even pressure with clear mesh2. High-precision guide track with "MEGADYNE" belt, dual-band drive, high printing precision3. Decelerator driving printer head moves up and down, speedy an......
Send Inquiry
Product Description
FB-12060 Horizontal-Lift Soft PVC Screen Printing Machine with CE
1. Four cylinders motorized to achieve even pressure with clear mesh
2. High-precision guide track with "MEGADYNE" belt, dual-band drive, high printing precision
3. Decelerator driving printer head moves up and down, speedy and stable
4. Microcomputer with fault display function for maintenance
Main parameter:
1. Four cylinders motorized to achieve even pressure with clear mesh
2. High-precision guide track with "MEGADYNE" belt, dual-band drive, high printing precision
3. Decelerator driving printer head moves up and down, speedy and stable
4. Microcomputer with fault display function for maintenance
Main parameter:
| Model | FB-12060 |
| Max. printing size | 1200x600mm |
| Min. screen frame size | 600x600mm |
| Max. screen frame size | 1500x800mm |
| Printing table size | 1300x700mm |
| Printing thickness | 0-40mm |
| Height of instant off-screen | 0-20mm |
| Max. printing speed | 900t/h |
| Weight | 800kg |
| Overall dimension | 1830x1190x1680mm |
| Printing motor | 0.2kw |
| Lifting motor | 1.5kw |
