Good packaging Automatic Multicolor Screen Printing Machine of T-Shirt

Product Description

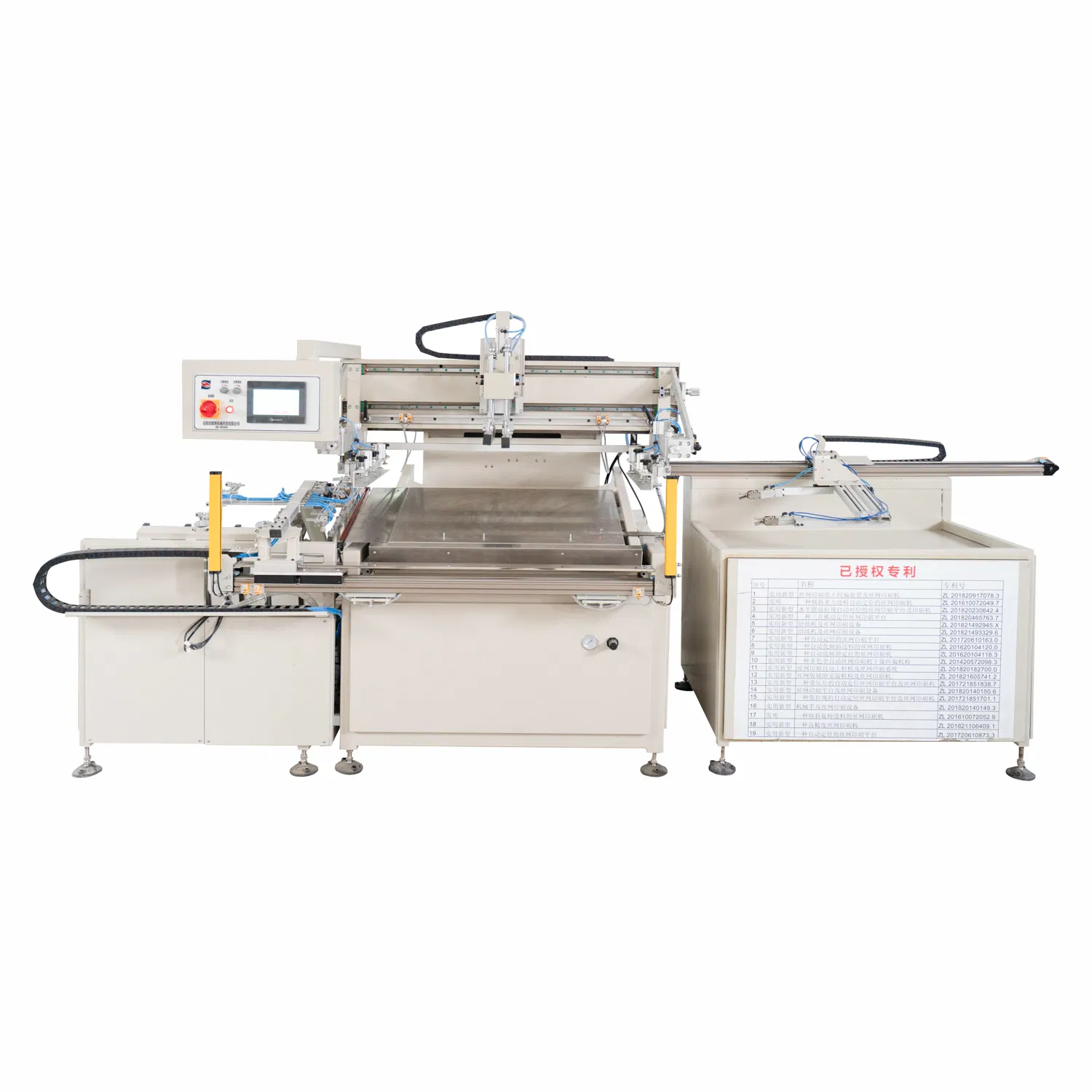

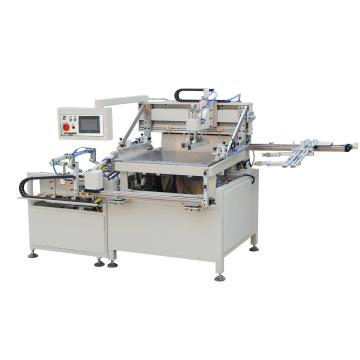

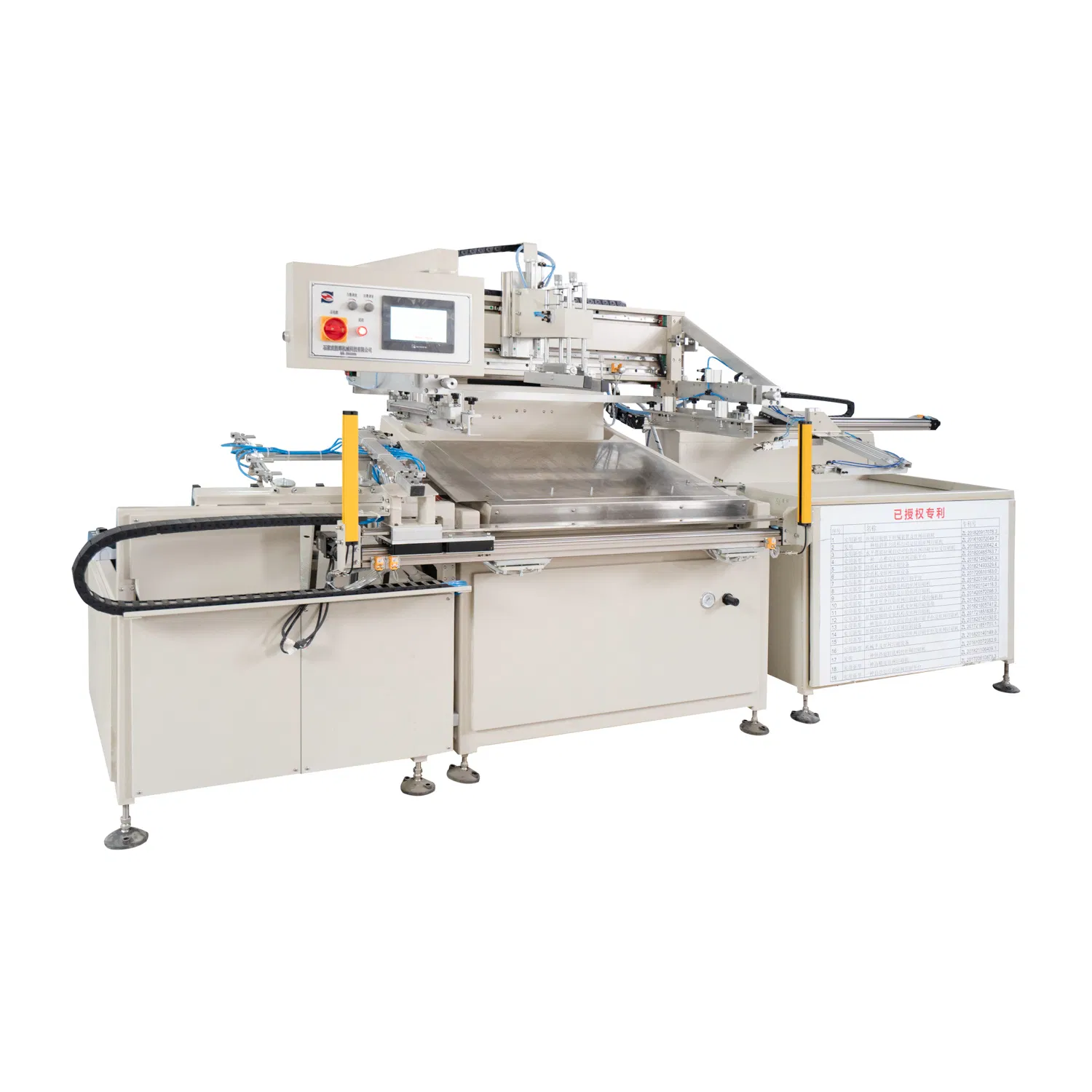

HY-H56 single sheet automatic screen printing machine

Product parameter:

Max. Printing Size	500×650mm
Repeatability	<0.05mm
Workbench size	590×860mm
Max.frame size	750×1030mm
Print thickness	0~1mm
Max. printing speed	900pcs/h
Squeegee skewness	0~30º
Screen vertical and horizontal adjustment	±10mm
Power supply	3N~50HZ 380V 3KW
Air source pressure	0.4~0.6MPa
Dimensions L×W×H(mm)	2100×1200×1650mm
Machine weight(kg)	800kg

Product description:
Replacement of flat lift semi-automatic screen printing machine, the new model, automatic feeding, automatic matching, automatic printing, automatic taking of automatic screen printing; Touch screen control, simple and easy to learn, reduce labor intensity and technical requirements for operators, so that the machine to ensure printing speed and accuracy, to achieve more stable printing effect; It has the advantages of full automata saving manpower and the flexibility of semi-automata small batch;Can continue to use the original semi-automata screen version, reduce the cost of input.The printing speed is 900 pieces/hour, and the repeated positioning accuracy is less than 0.05mm. It can be matched with tunnel dryer, UV light fixing machine, paper clip dryer. It is suitable for transferring flowery paper, film switch, packaging, signs and other industries.

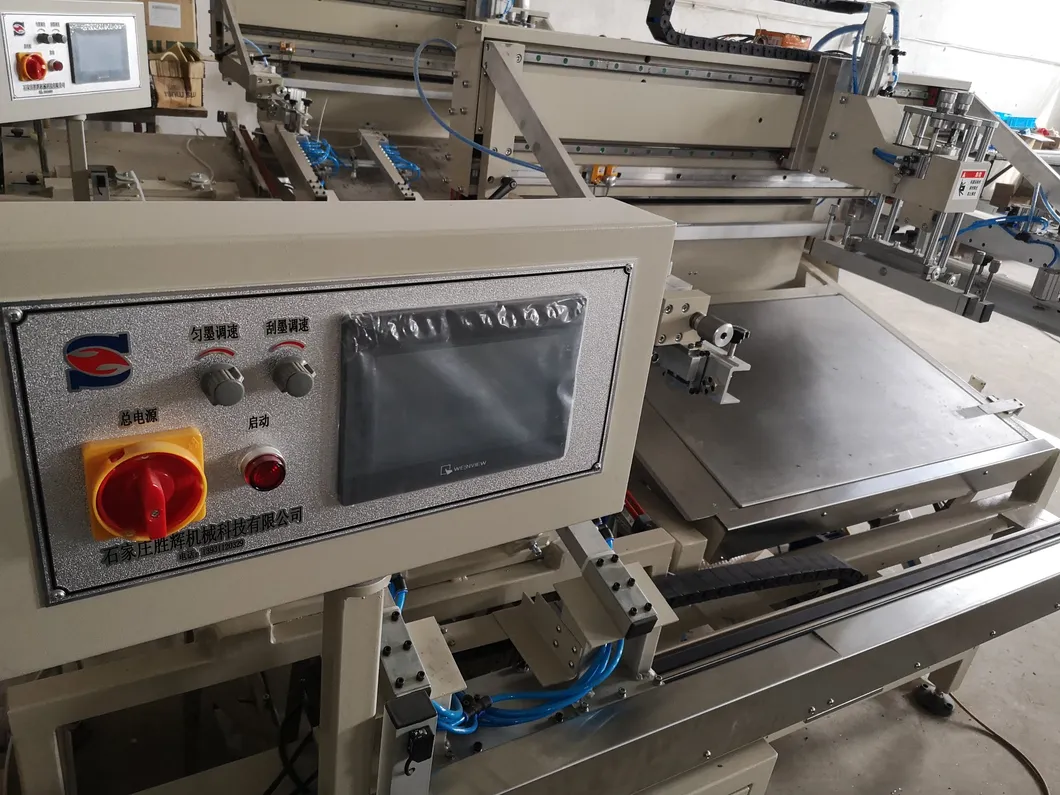

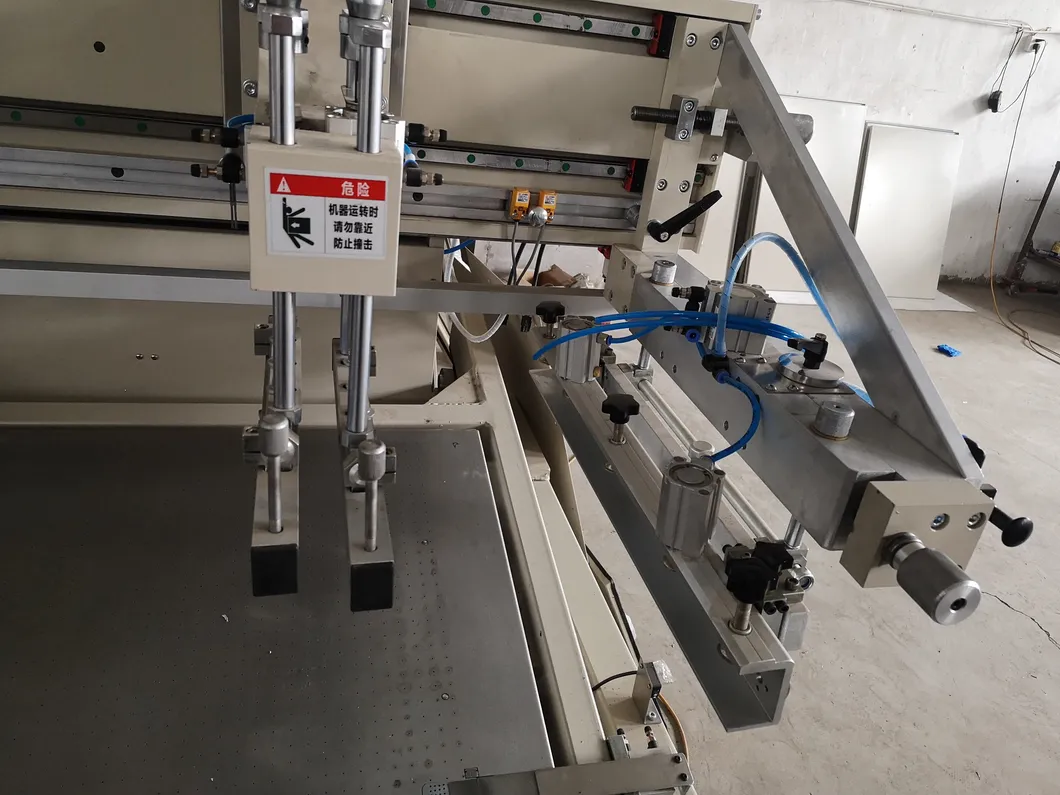

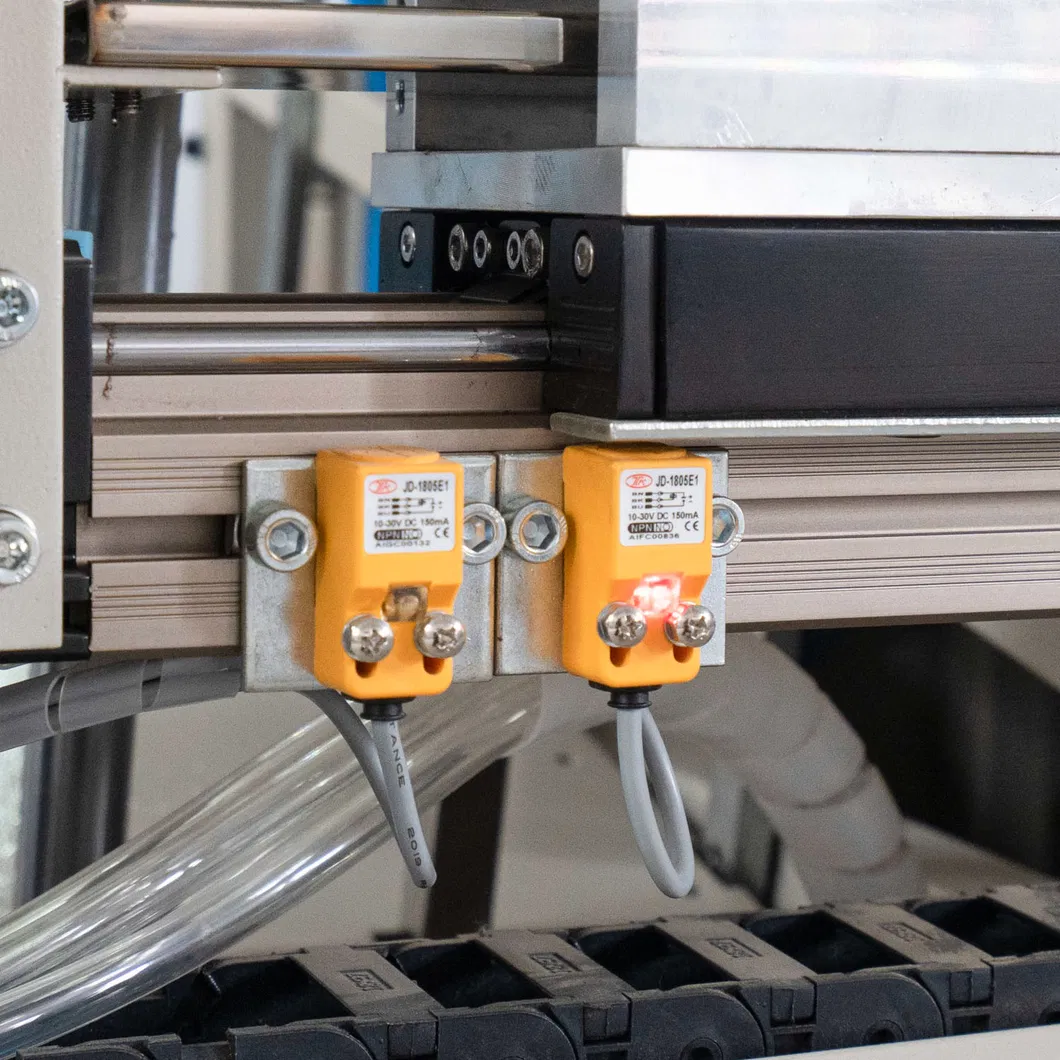

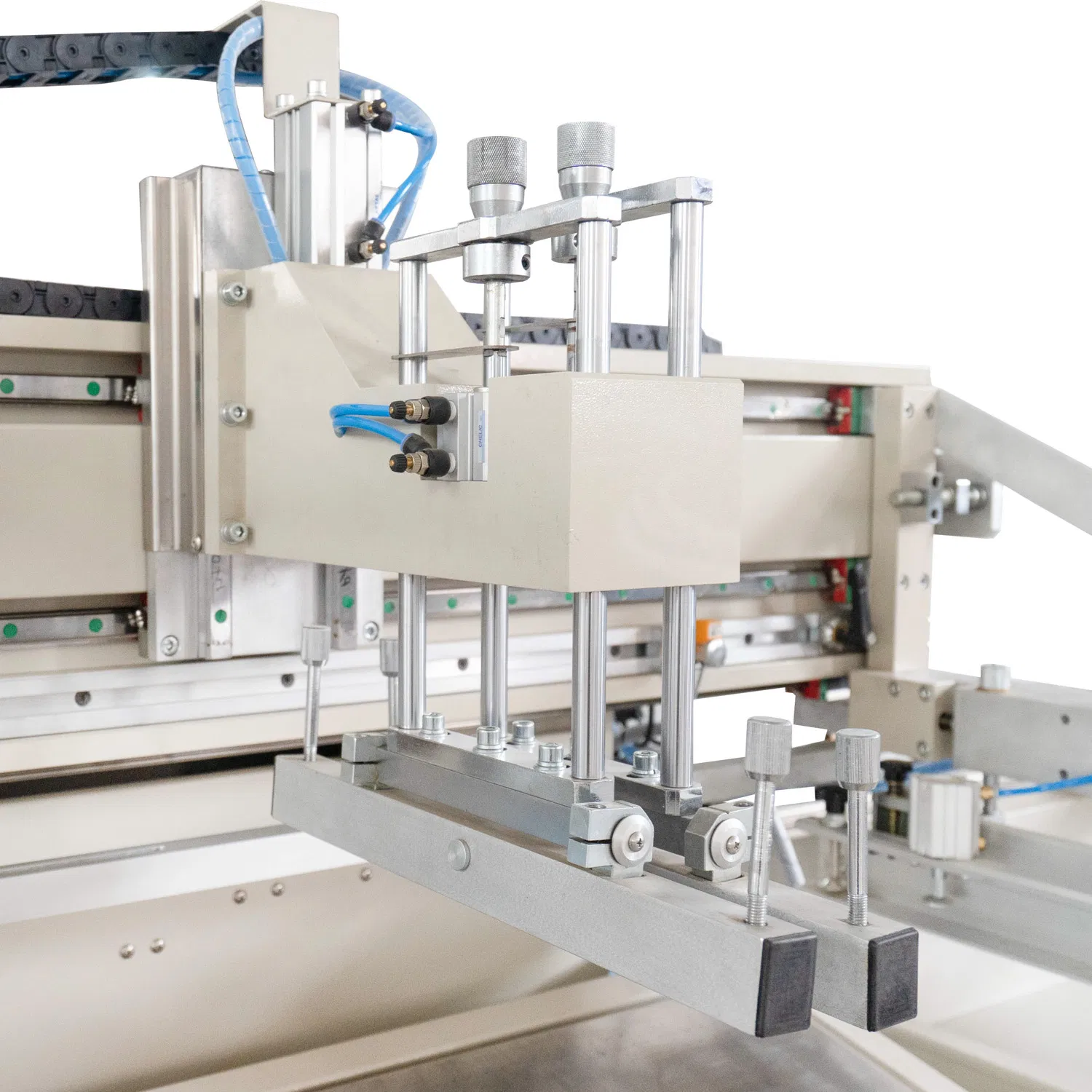

Detailed Photo:

Good packaging Automatic Multicolor Screen Printing Machine of T-Shirt

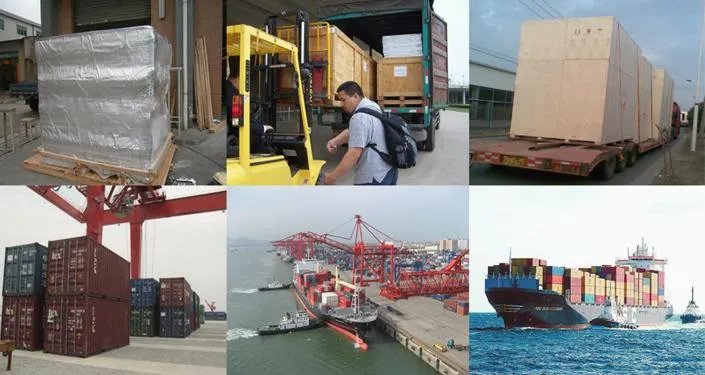

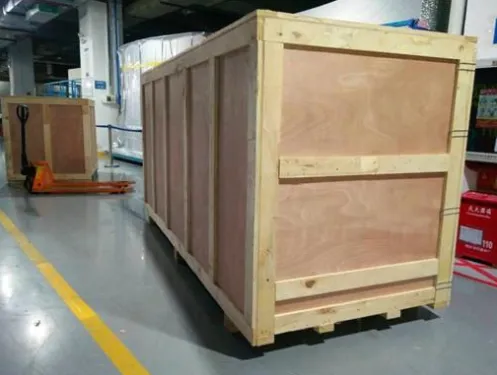

Packaging and shipping:
All the machines are packed in wood, which protects them from impact. Products are exported to Europe, Southeast Asia, Southeast Asia and other countries and regions.
Good packaging Automatic Multicolor Screen Printing Machine of T-Shirt

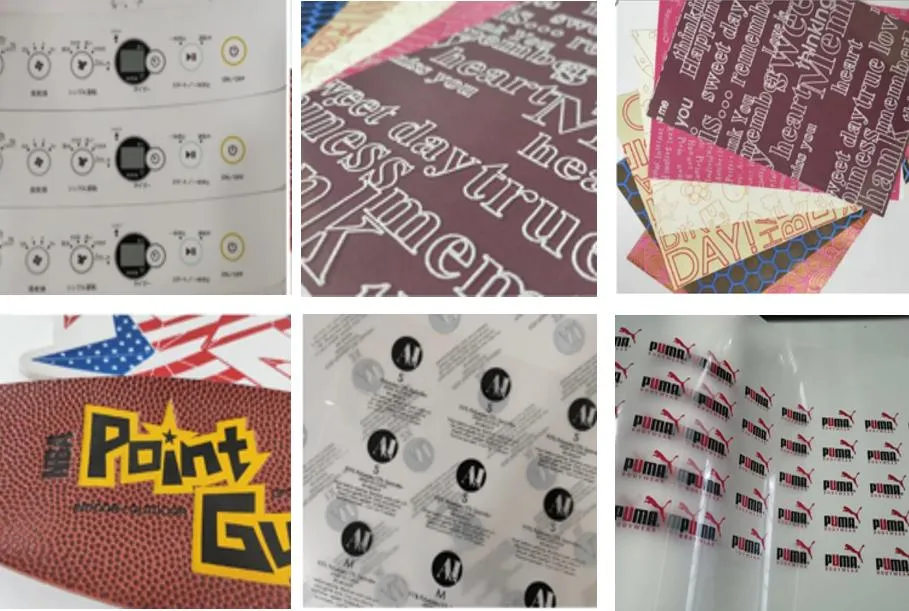

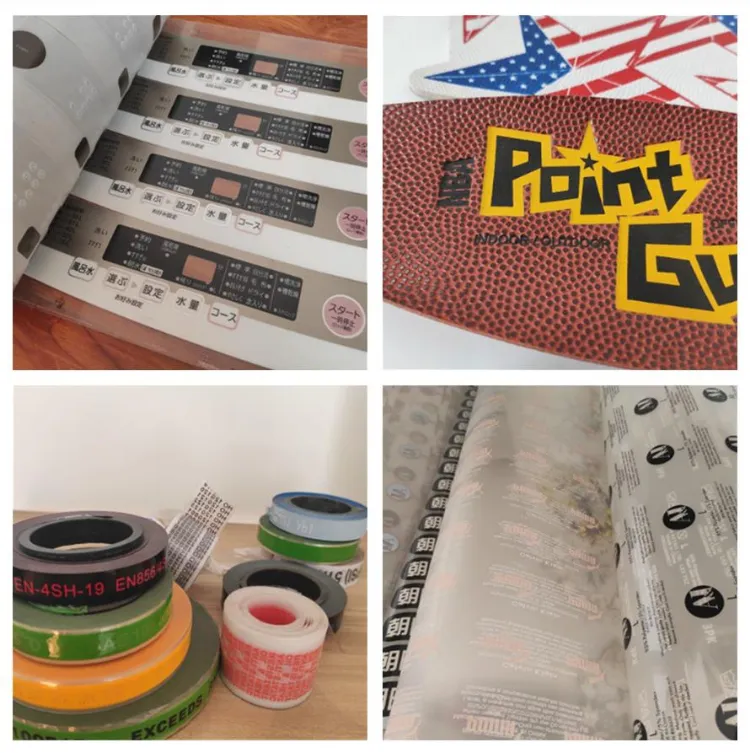

Product print display:

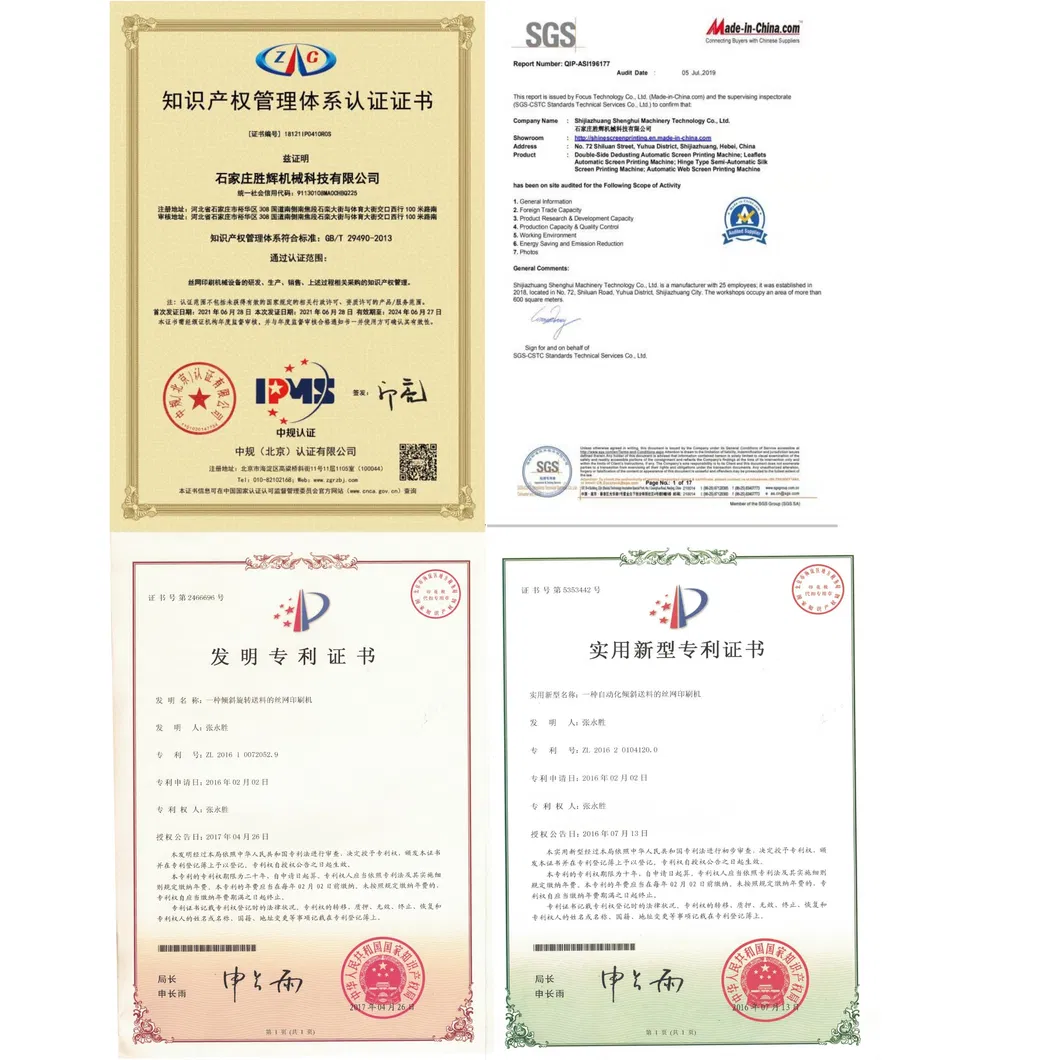

Certification:
WHY CHOOSE US

Company confile:
Shijiazhuang shenghui machinery technology Co., Ltd. is a company specializing in the production and sales of
automatic and semi-automatic plane screen printing machines. Out of a commitment to research and innovation of
science and technology route.
Now the company has more than 20 screen printing machine invention and utility model patents, and there are new patents in the application. The new concept of automatic screen printing machine fills the technical gap and solves the problem of shortage of skilled workers. Since entering the market, it has triggered a wave of upgrading of printing equipment, which is favored by many new and old customers.
Our company's products have been served in Thailand, Vietnam, India and other customers, in 2019 the company will bring their own more mature products and services, screen printing enterprises for more countries to make beautiful products.

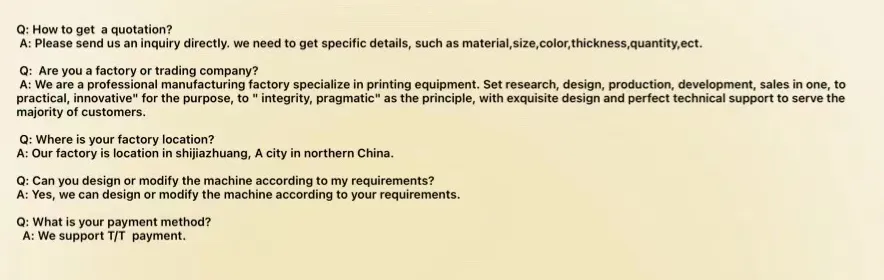

FAQ:
