HY-Z57 Touch screen, single sheet screen printing machine

Product Description

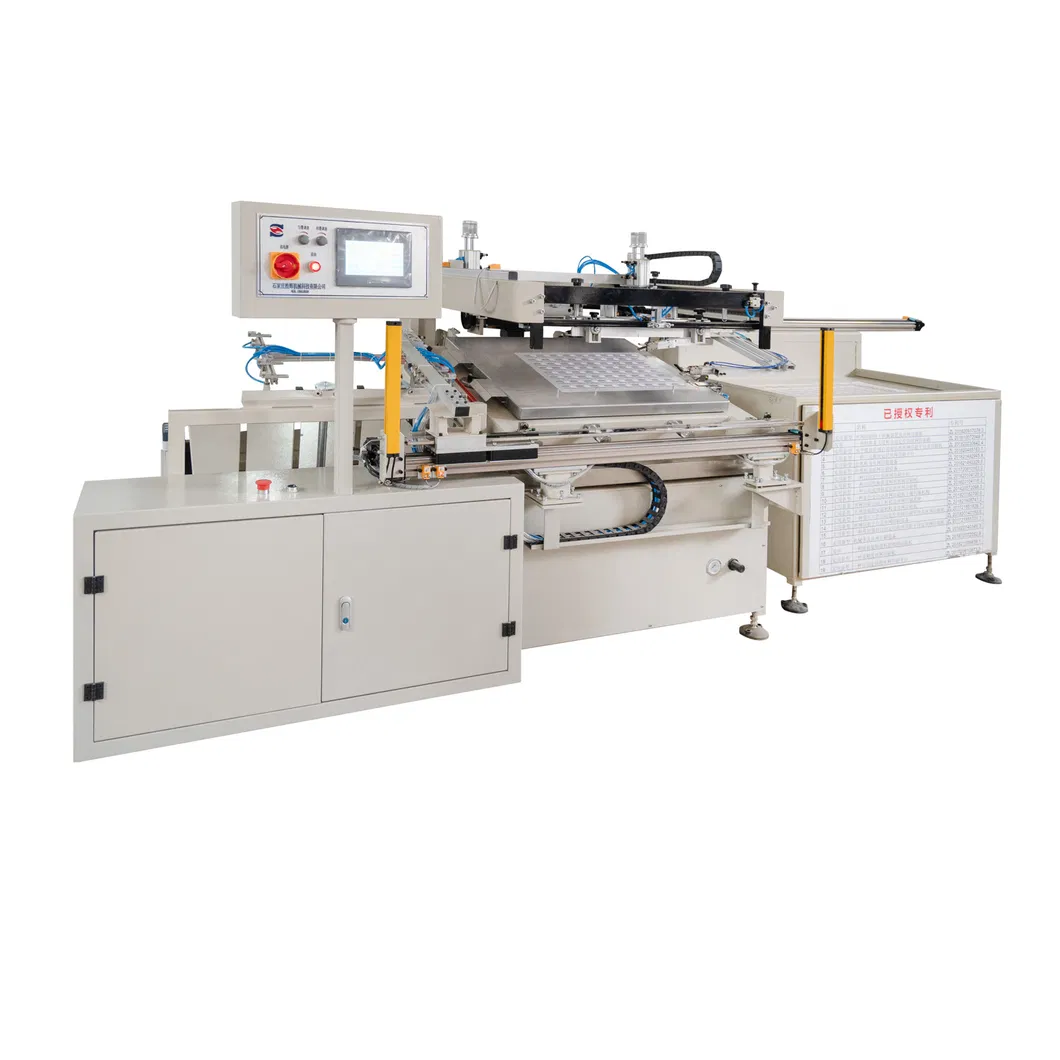

HY-Z57 Single Sheet Automatic Screen Printing Machine

A new model that replaces the hinged semi-automatic screen printing machine, and realizesautomatic screen printing with automatic feeding, automatic alignment, automatic printing, and automatic reclaiming;The Chinese man-machine interface is simple and easy to learn, which not only reducen be equipped with tunnel drying Dryer, UV light curing machine, paper clip dryer, suitable for transfer of decals, membrane switches, packaging, signs and other industrie.s labor intensity and technical requirements for operators, but also replaces manual work by machine positioning and improves printing stability;It has the advantages of fully automatic and labor saving and the flexibility of a semi-automatic machine in small batches; the original semi-automatic screen plate is used to reduce the cost of replacement.The printing speed is 1000 sheets/hour, and the repeat positioning accuracy is less than 0.05mm.

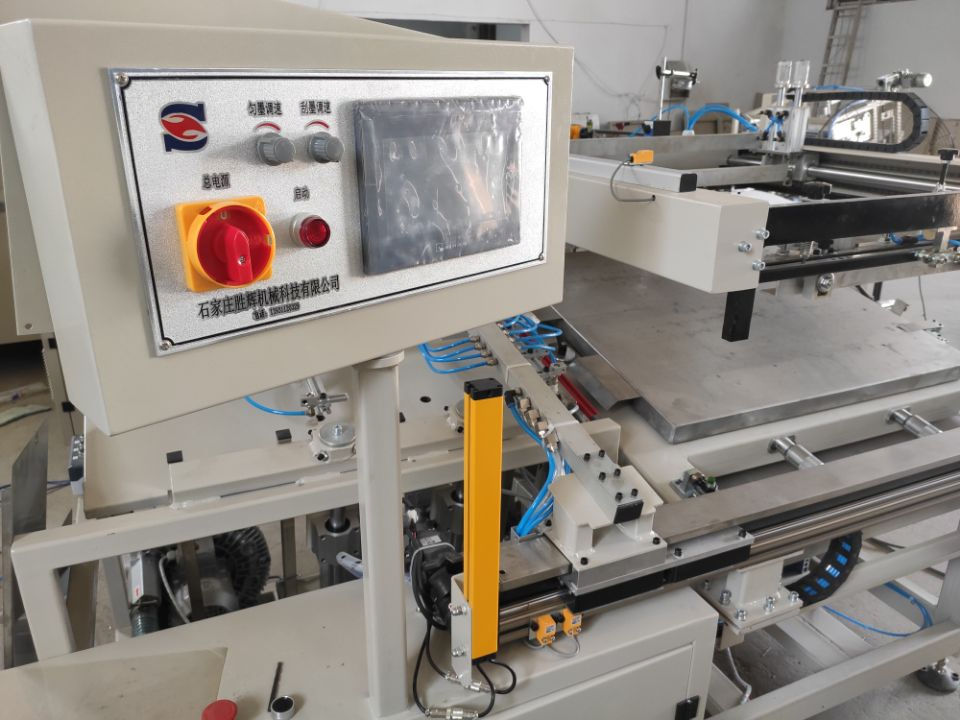

Fully automatic using PLC and touch control, simple operation, easy to learn, can be equipped with tunnel dryingDryer, UV light curing machine, paper clip dryer, suitable for transfer of decals,membrane switches, packaging, signs and other industries.

HY-Z57 Touch screen, single sheet screen printing machine

HY-Z57 Touch screen, single sheet screen printing machine

Printing technical parameters:

Maximum printing area	500*700 mm
Repeatability	<0.05 mm
Maximum frame size	800*1000 mm
Workbench size	690*812 mm
Print thickness	0~1 mm
Maximum printing speed	1000 pcs /h
Squeegee skewness	0~30
Screen vertical and horizontal adjustment	+- 5 mm

Dynamic parameter:

Power supply	3N-50HZ 380V 3KW
Air source pressure(MPa)	0.4~0.6 MPa

Dimensions and weight:

Dimensions L W H(mm)	200015001600 mm
Machine weight (kg)	600kg

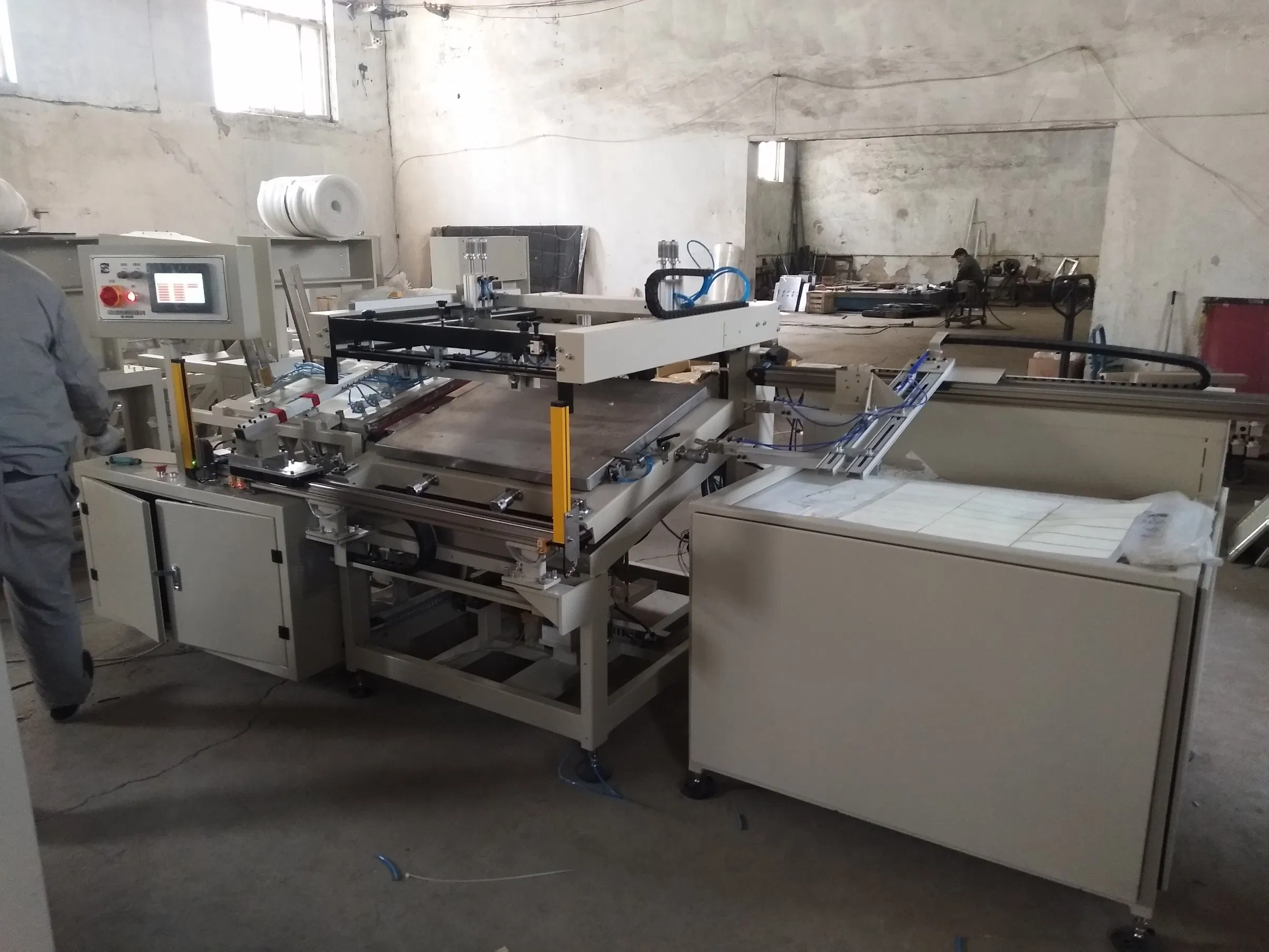

Automatic screen printing machine process:
Raw materials---Automatic feeding machine (double-sided dust removal, tearing off protective film, static removal)---Automatic printing machine (automatic punching, printing, quality inspection,Automatic feeding)---Automatic oven---Automatic rewinding---Die-cutting, cutting/cutting---finished product.

Automatic feeding, printing, drying, and receiving, one-stop computer program control is completed, and the degree of automation is extremely high. Save labor and greatly improveproduction efficiency.

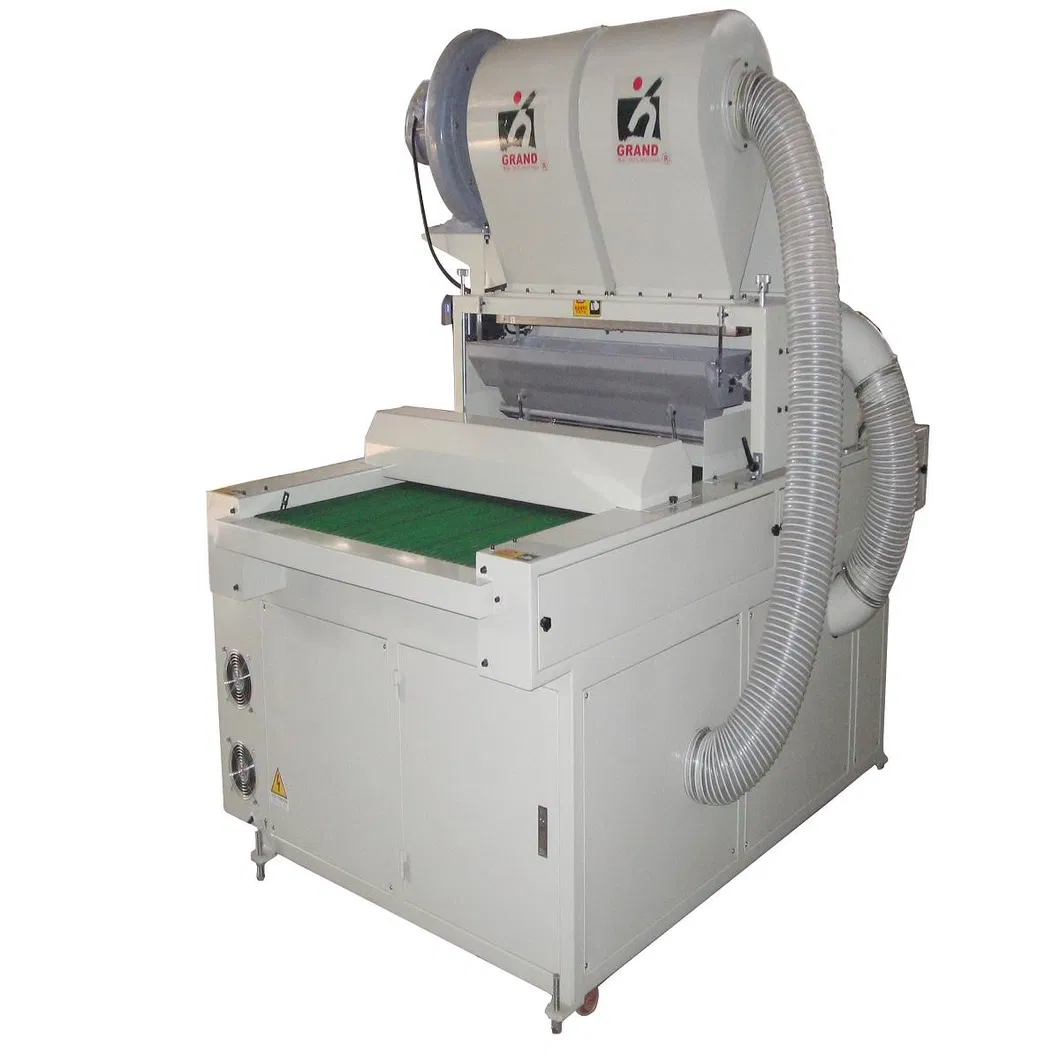

Duster
ZSCT---II Thermoplastic Poly Urethane machine is after-printing corollary equipment, which substitutes for rendition product like logo, ironing, wallpaper, paper, and film. It can powder and Recovery of residual powder as well. It has the advantage of easy to use, flexible adjustment, high efficiency, and no just pollution. Transmission parts in the machine all can be adjusted, and connect to auto screen printing machine or gluing machine. It works well even with those paper and EVA which has high demand in surface. If so desired, it can connect directly to Drying equipment or UV Light curing equipment.

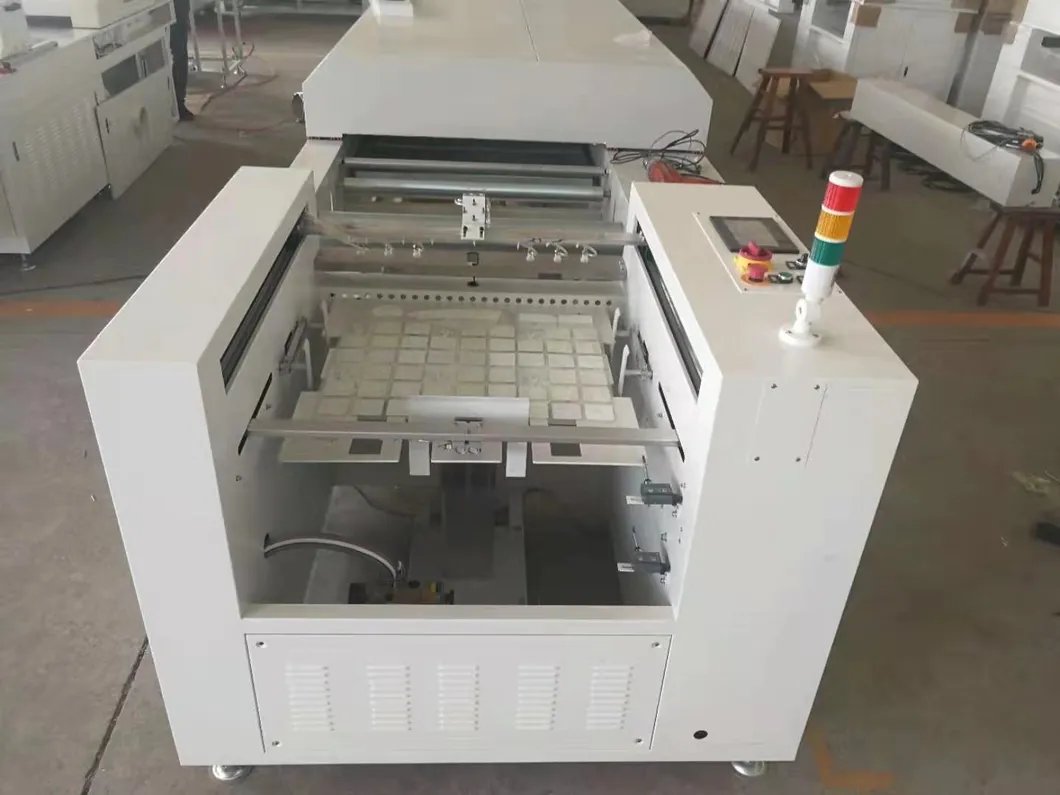

Rongda paper collector

Print Sample details:

HY-Z57 Touch screen, single sheet screen printing machine

Packing:

Certificate:

HY-Z57 Touch screen, single sheet screen printing machine

FAQ:

Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color,
thickness, quantity, etc.

Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment. Set research, design,
production, development, sales in one, to "practical, innovative" for the purpose, to "integrity,
pragmatic" as the principle, with exquisite design and perfect technical support to serve the majority
of customers.

Q:What's your MOQ?
A: One set.

Q:What`s the price term and payment method?
A:We usually use FOB,CIF
Payment method : 100% advance payment by T/T after contract signed,Western Union, or other payment method.

Q:Do you provide samples?
A:No, because the machine is too big and too heavy,so no samples are provided.
