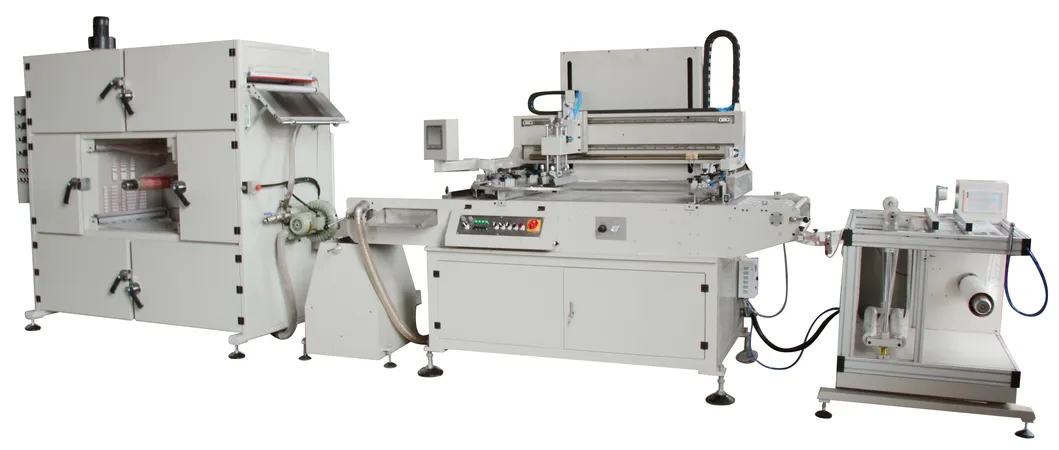

HYA56 Automatic Thick Material Series Roll to Roll Screen Printing Machine Heat Transfer Paper,Packing Label Packing Silk Screen Printer Machinery
Description: button panel, film injection molding and printing of various transfer paper.HYA Thick Material Series Optional function: a. no scratch function;b. UV light curing machine;c. winding and installing isolation paper.HYA Thick Material Series Advantages:1,The electrical system adopts impor......
Send Inquiry
Product Description
Description:
button panel, film injection molding and printing of various transfer paper.
HYA Thick Material Series Optional function:
a. no scratch function;
b. UV light curing machine;
c. winding and installing isolation paper.
HYA Thick Material Series Advantages:
1,The electrical system adopts imported products, which are reliable and durable;
2,Imported PLC control operation, Chinese man-machine interface operation, convenient setting;
3,The overall version of the screen is chasing the edge, the adjustment is fast, convenient and accurate.
4,Platform material suspension technology to effectively solve scratches;
5,The printing mechanism is vertical lifting, which is convenient for the maintenance of screen and scraper;
6,Automatically tear film, remove dust and remove static electricity;
7,Anti-drip function to improve the uniformity of the ink layer.
Printing technical parameters:
| Model | HYA56 | HYA58 | HYA512 | HYA610 |
| Maximum printing area(mm) | 500×620 | 500×820 | 500×1220 | 500×1020 |
| Maximum frame size(mm) | 820×1020 | 800×1220 | 800×1630 | 880×1430 |
| Workbench size(mm) | 590×800 | 590×1000 | 590×1400 | 690×1300 |
| Print thickness(mm) | 0.04-0.5 | 0.04-0.5 | 0.04-0.5 | 0.04-0.51 |
| Instant off-grid height(mm) | 0-10 | 0-10 | 0-10 | 0-10 |
| Maximum winding diameter(mm) | 500 | 500 | 500 | 500 |
| Maximum feed width(mm) | 530 | 530 | 530 | 630 |
| Maximum printing speed(mm/h) | 13000 | 15000 | 18000 | 15000 |
| Power supply | 3N-50Hz 380V 18kW | 3N-50Hz 380V 18kW | 3N-50Hz 380V 20kW | 3N-50Hz 380V 20kW |
| Air source pressure(Mpa) | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 |
| Dimensions L×W×H(mm) | 6500×1020×1795 | 7000×1000×1560 | 8000×1150×1560 | 7000×1150×1560 |
| Machine weight(Kg) | 3900 | 3950 | 4200 | 4200 |
Print sample details

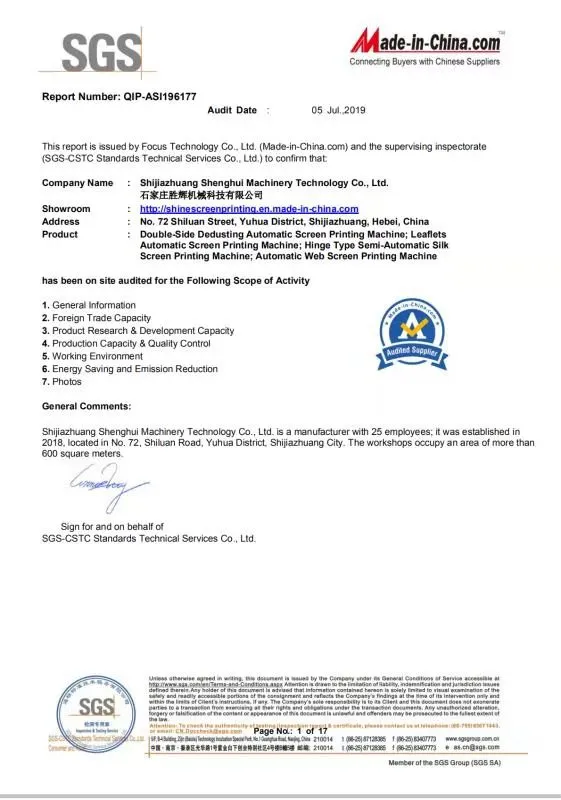

Certificate
FAQ
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment . set research, design, production, development, sales in one, to "practical, innovative" for the purpose, to "integrity, pragmatic" as the principle, with exquisite design and perfect technical support to serve the majority of customers.
