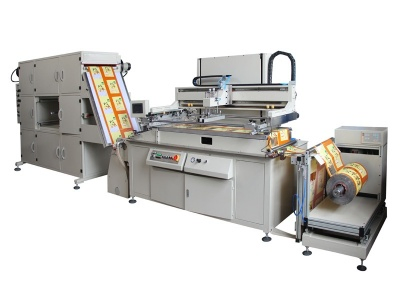

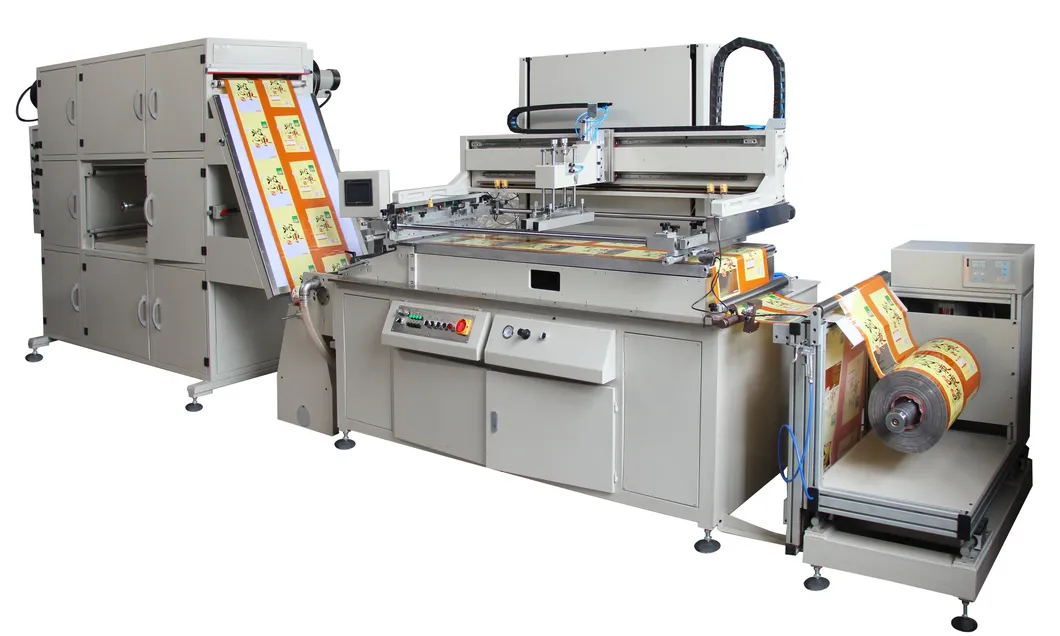

HYB49 Seamless Series Roll to Roll Screen Printing Machine Heat Transfer Paper,Packing Label Packing Silk Screen Printer Machinery
Description:This series of automatic reel screen printing machine is mainly suitable for: printing of film and coil of PET\BOPP.Mainly used for rubber vulcanized paper, rubber tube ribbon printing.HYB Seamless Series Advantages:1,The electrical system adopts imported products, which are reliable and......
Send Inquiry
Product Description
Description:
This series of automatic reel screen printing machine is mainly suitable for: printing of film and coil of PET\BOPP.
Mainly used for rubber vulcanized paper, rubber tube ribbon printing.
HYB Seamless Series Advantages:
1,The electrical system adopts imported products, which are reliable and durable;
2,Imported PLC control operation, Chinese man-machine interface operation, convenient setting;
3,The front and rear position of printing is controlled by imported photoelectric tracking, and the positioning is fast and accurate;
4,Inverter (optional servo) printing, stepless speed regulation, excellent performance;
5,The printing mechanism is vertical lifting, which is convenient for the maintenance of screen and scraper;
6,Imported servo system controls the feeding, stable feeding and accurate positioning;
7,Automatic tension control;
8,Automatic synchronization off-grid, adjustable speed, accurate and clear printing.
Printing technical parameters:
| Model | HYB49 | HYB512 |
| Maximum printing area(mm) | 400×920 | 500×1220 |
| Maximum frame size(mm) | 560×1365 | 800×1630 |
| Workbench size(mm) | 490×1000 | 590×1400 |
| Print thickness(mm) | 0.015-0.2 | 0.015-0.2 |
| Maximum winding diameter(mm) | 500 | 500 |
| Maximum feed width(mm) | 450 | 540 |
| Maximum printing speed(mm/m) | 15000 | 18000 |
| Power supply | 3N-50Hz 380V 18kW | 3N-50Hz 380V 18kW |
| Air source pressure(Mpa) | 0.5-0.6 | 0.5-0.6 |
| Dimensions L×W×H(mm) | 6500×1020×2200 | 7000×1100×2200 |
| Machine weight(Kg) | 3900 | 4200 |
Print sample details
Certificate
FAQ
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment . set research, design, production, development, sales in one, to "practical, innovative" for the purpose, to "integrity, pragmatic" as the principle, with exquisite design and perfect technical support to serve the majority of customers.
