HYB512 HYB Seamless Series Printer Screen Printing Machine for Rubber Tube Ribbon
HYB512 HYB Seamless Series Screen Printing Machine for PET,BOPP and Other FilmsSpecial structure design, printing patterns butt, realize seamless printing effect.Scope of application:This series of full-automatic web screen printing machines are mainly suitable for printing on PET,BOPP and other fil......
Send Inquiry
Product Description
HYB512 HYB Seamless Series Screen Printing Machine for PET,BOPP and Other Films
Special structure design, printing patterns butt, realize seamless printing effect.
Scope of application:
This series of full-automatic web screen printing machines are mainly suitable for printing on PET,
BOPP and other films and coils.Mainly suitable for printing on rubber vulcanized paper and rubber
tube ribbon.
Advantages:
The electrical system adopts imported products, which is reliable and durable;
Imported PLC control operation, Chinese man-machine interface operation, convenient setting;
The front and back positions of printing are controlled by imported photoelectric tracking, and the positioning is rapid and accurate;
Inverter (optional servo) printing, stepless speed regulation, excellent performance;
The printing mechanism is vertically lifted, which is convenient for the maintenance of the screen andsqueegee;
Imported servo system controls feeding, stable feeding and accurate positioning;
Automatic tension control;
Automatic synchronization off-screen, adjustable speed, accurate and clear printing.
Product specifications and technical parameters:
| Model | HYB512 |
| Maximum printing area(mm) | 500*1220 |
| Maximum frame size(mm) | 800*1630 |
| Workbench size(mm) | 590*1400 |
| Print thickness(mm) | 0.015~0.2 |
| Maximum winding diameter(mm) | 500 |
| Maximum printing speed(mm) | 540 |
| Maximum printing speed(mm/h) | 18000 |
| Power supply | 3N-50HZ 380V 18KW |
| Air source pressure(Mpa) | 0.5-0.6 |
| Dimensions L *W *H (mm) | 7000*1100*2200 |
| Machine weight(kg) | 4200 |

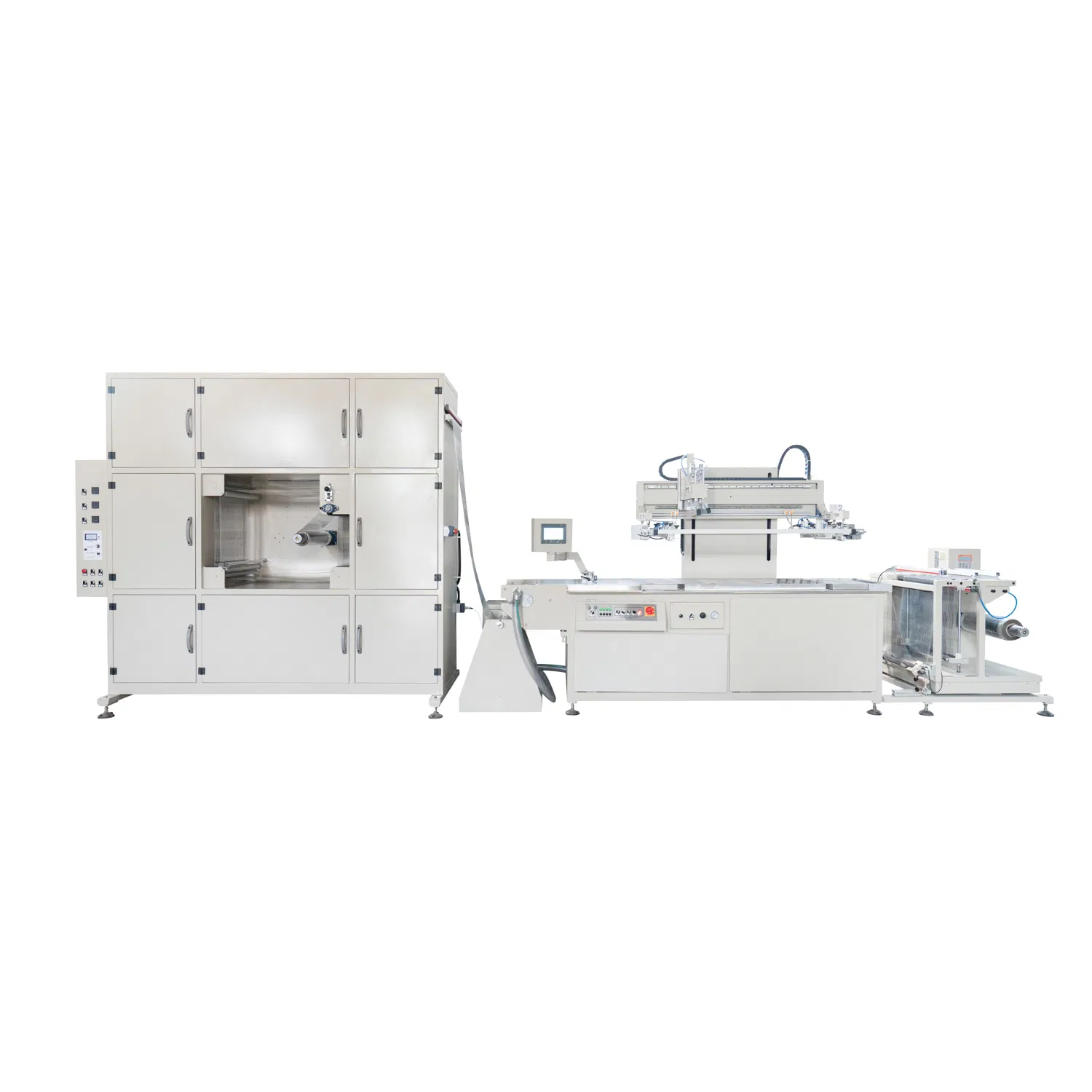

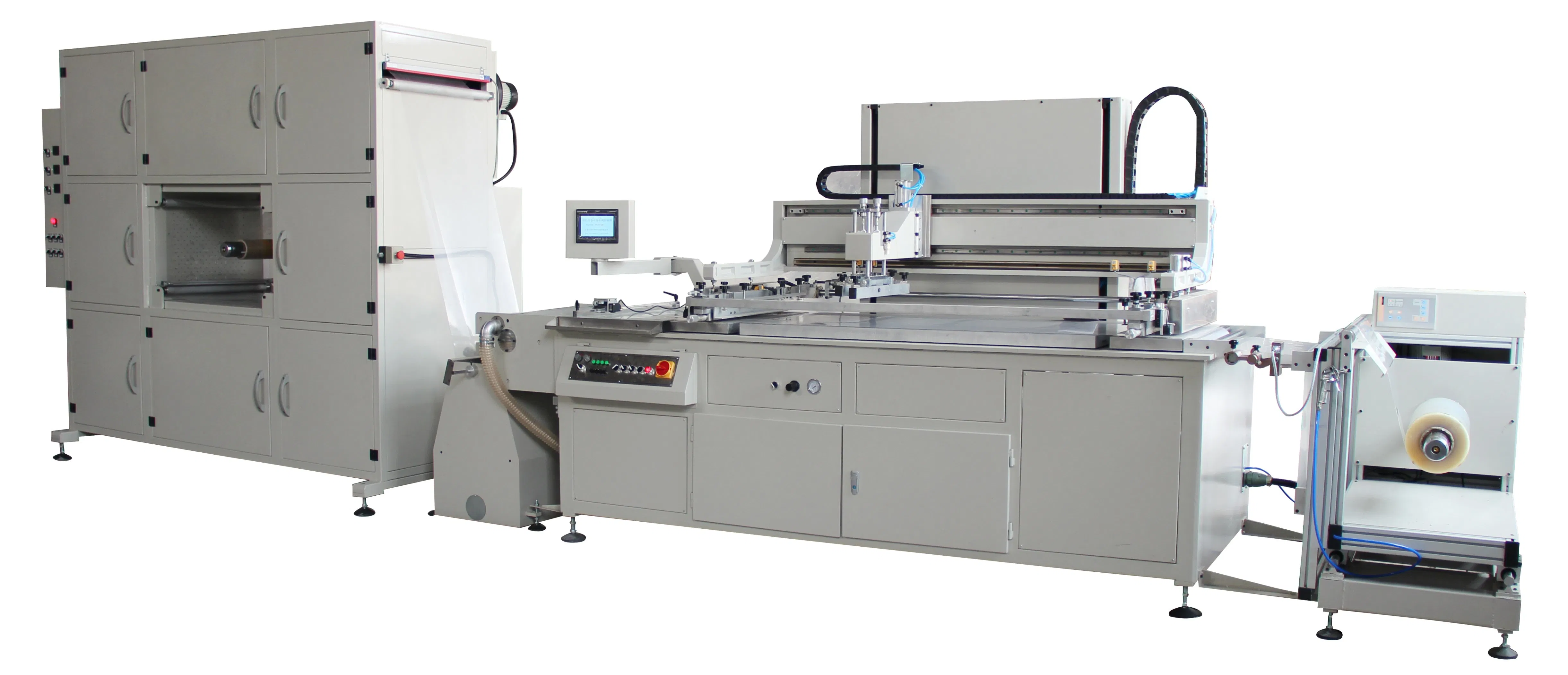

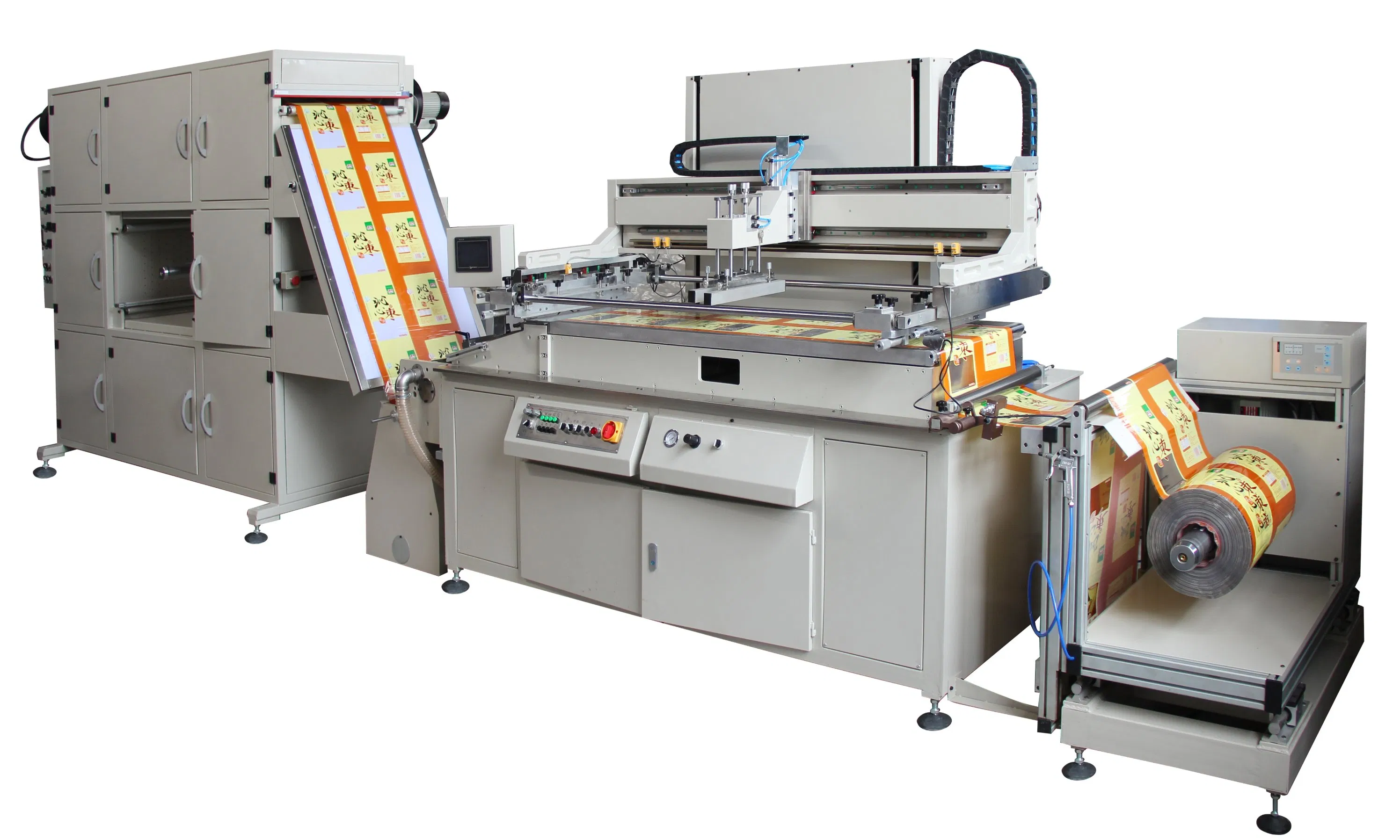

Machine photos:
Automatic screen printing machine process:
Raw materials---Automatic feeding machine (double-sided dust removal, tearing off protective film, static removal)---Automatic printing machine (automatic punching, printing, quality inspection,Automatic feeding)---Automatic oven---Automatic rewinding---Die-cutting, cutting/cutting---finished product.
Automatic feeding, printing, drying, and receiving, one-stop computer program control is completed, and the degree of automation is extremely high. Save labor and greatly improveproduction efficiency.

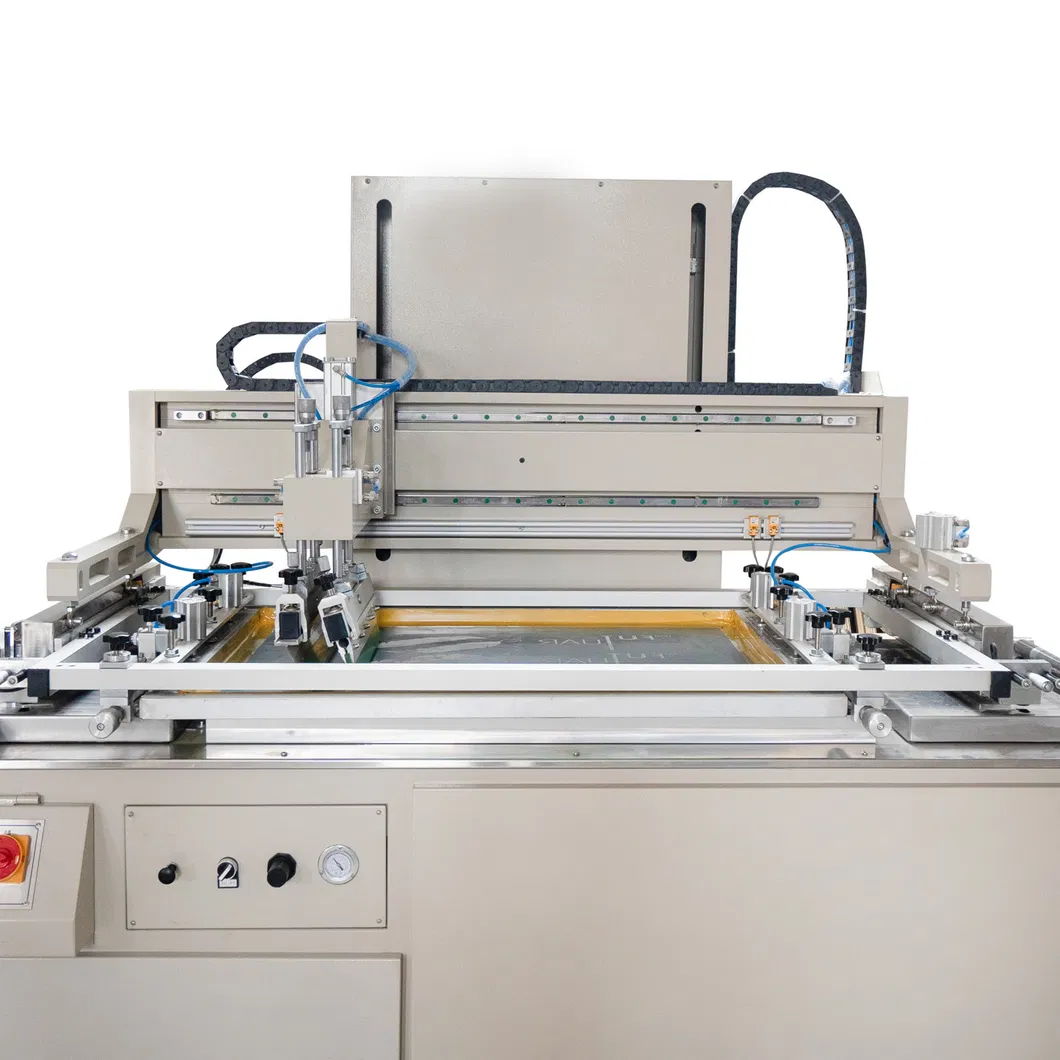

 | Printing table The printing mechanism is vertically lifted, which is convenient for the maintenance of the screen andsqueegee; Imported servo system controls feeding, stable feeding and accurate positioning; Automatic tension control; Automatic synchronization off-screen, adjustable speed, accurate and clear printing. |

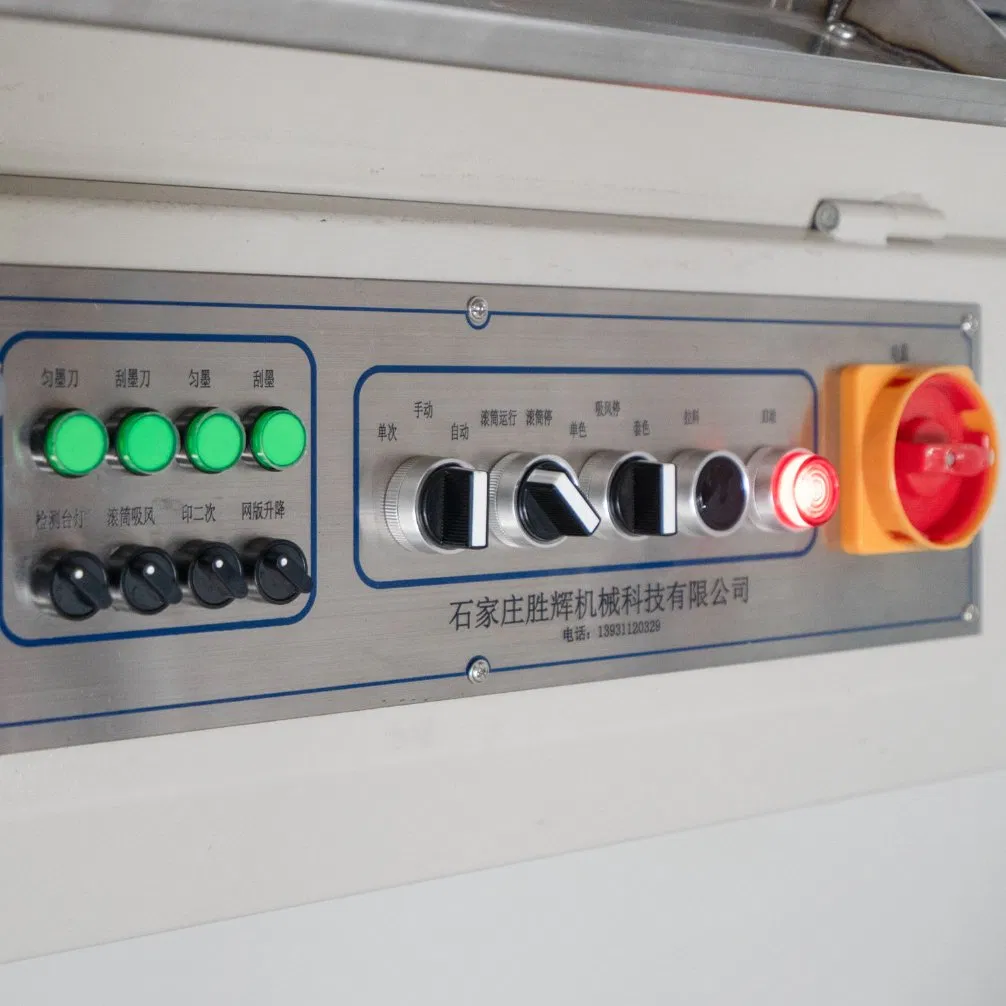

Console: Printing TablePrinting Table Using touch screen man-machine interface control, easy to operate. |  |

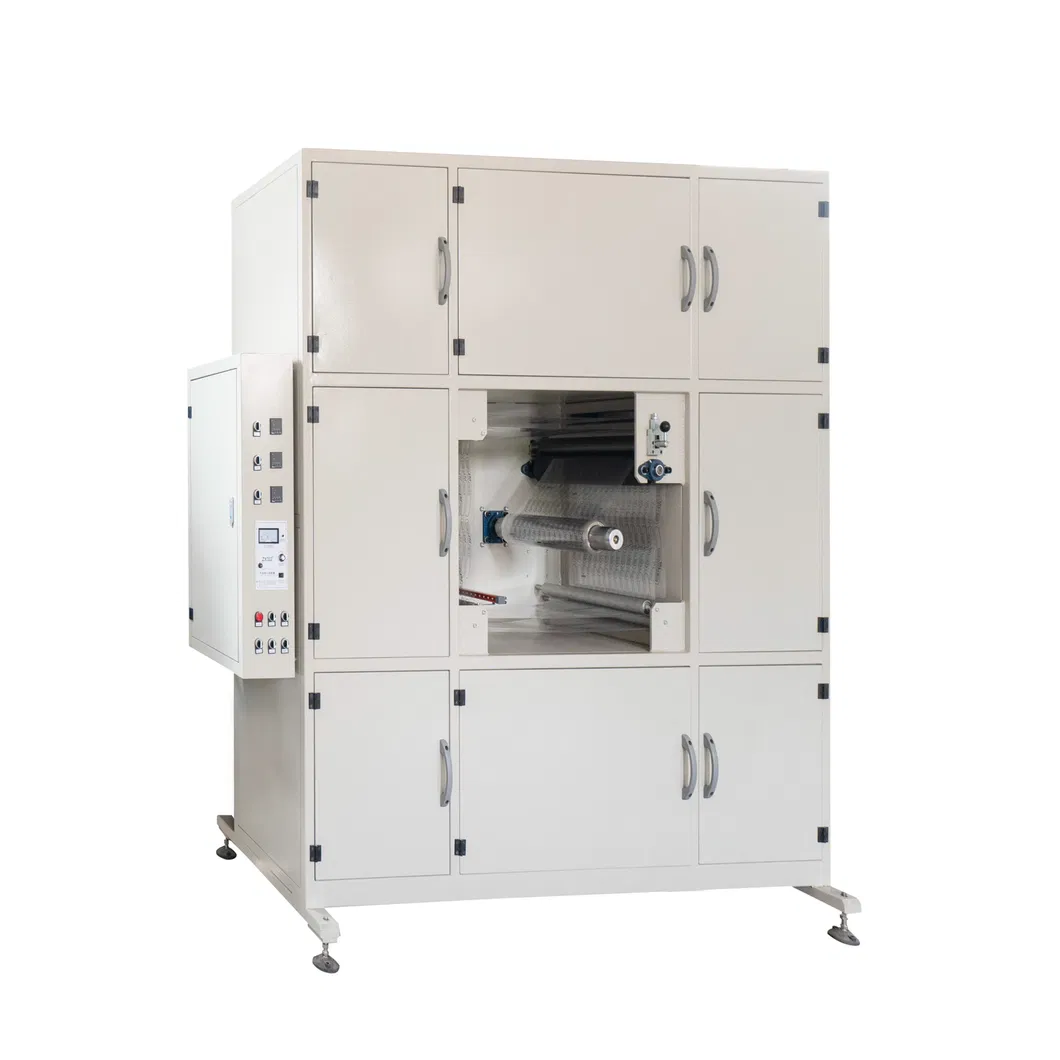

 | Dryer box: Circulating hot air drying, adjustable temperature, automatic winding; power saving, energy saving and environmental protection; |

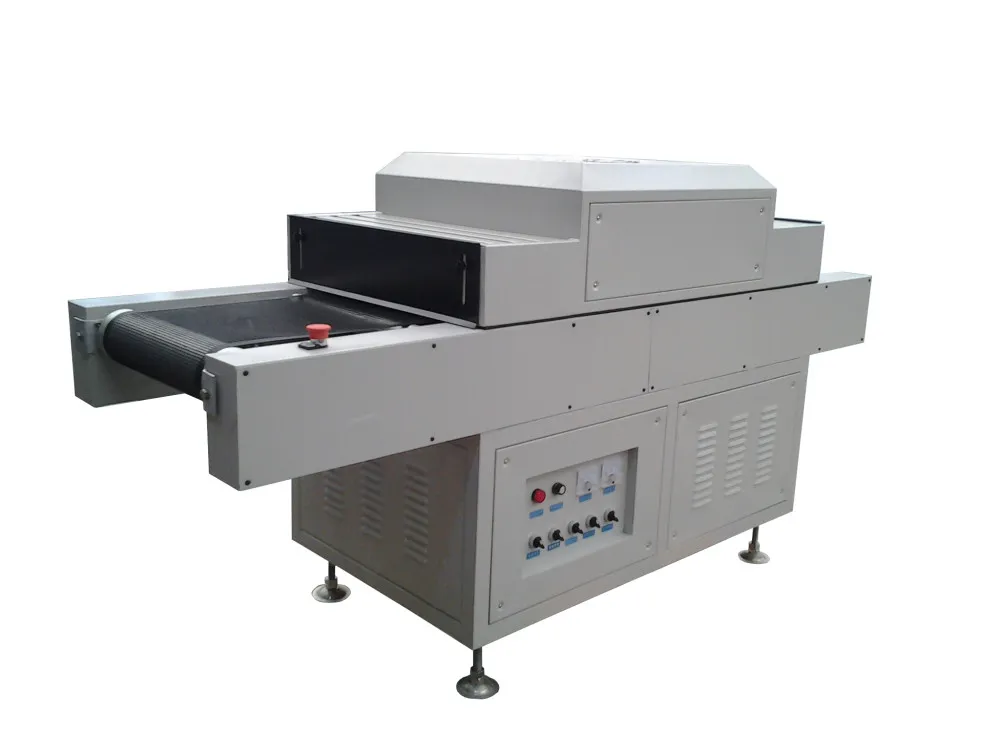

UV curing machine: The hot air circulation system is equipped with uniform temperature and air volume, so that the printed product can not only dry quickly, but also has a small shrinkage rate, ensuring the overprint accuracy of the printed product. |  |
 | Receiving machine Using PLC program control, easy to operate, safe and reliable. Greatly improve production efficiency and quality. |
Printed Samples:

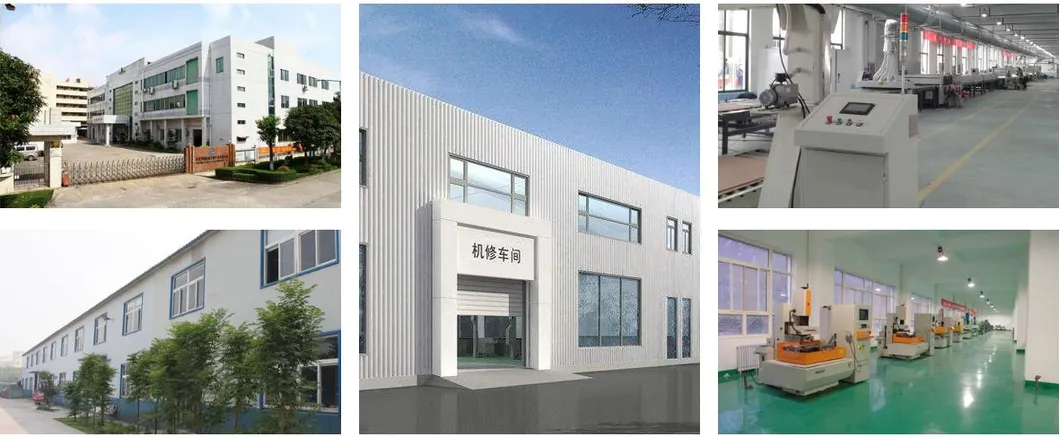

About us :
Shijiazhuang Shenghui Machinery Technology Co., Ltd. is an enterprise specializing in the production of flat screen printing equipment. The company integrates research, design, production, development, and sales. With the tenet of "practicality and innovation" and the principle of "integrity and pragmatism", the company serves customers with sophisticated design and perfect technical support.
Packging:
Sea transport:
FAQ:
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color,
thickness, quantity, etc.
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment. Set research, design,
production, development, sales in one, to "practical, innovative" for the purpose, to "integrity,
pragmatic" as the principle, with exquisite design and perfect technical support to serve the majority
of customers.
Q:What's your MOQ?
A: One set.
Q:What`s the price term and payment method?
A:We usually use FOB,CIF
Payment method : 100% advance payment by T/T after contract signed,Western Union, or other payment method.
Q:Do you provide samples?
A:No, because the machine is too big and too heavy,so no samples are provided.
