Product Description

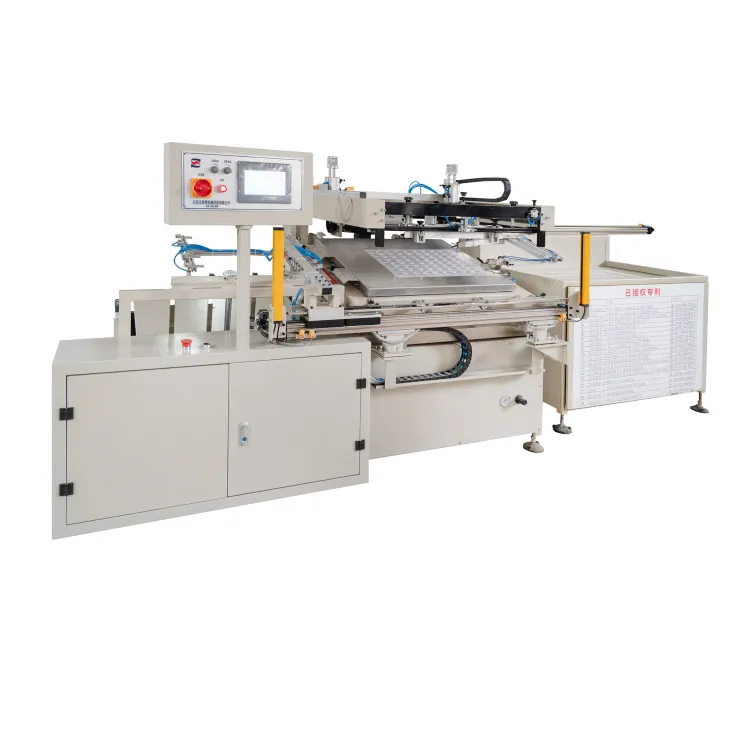

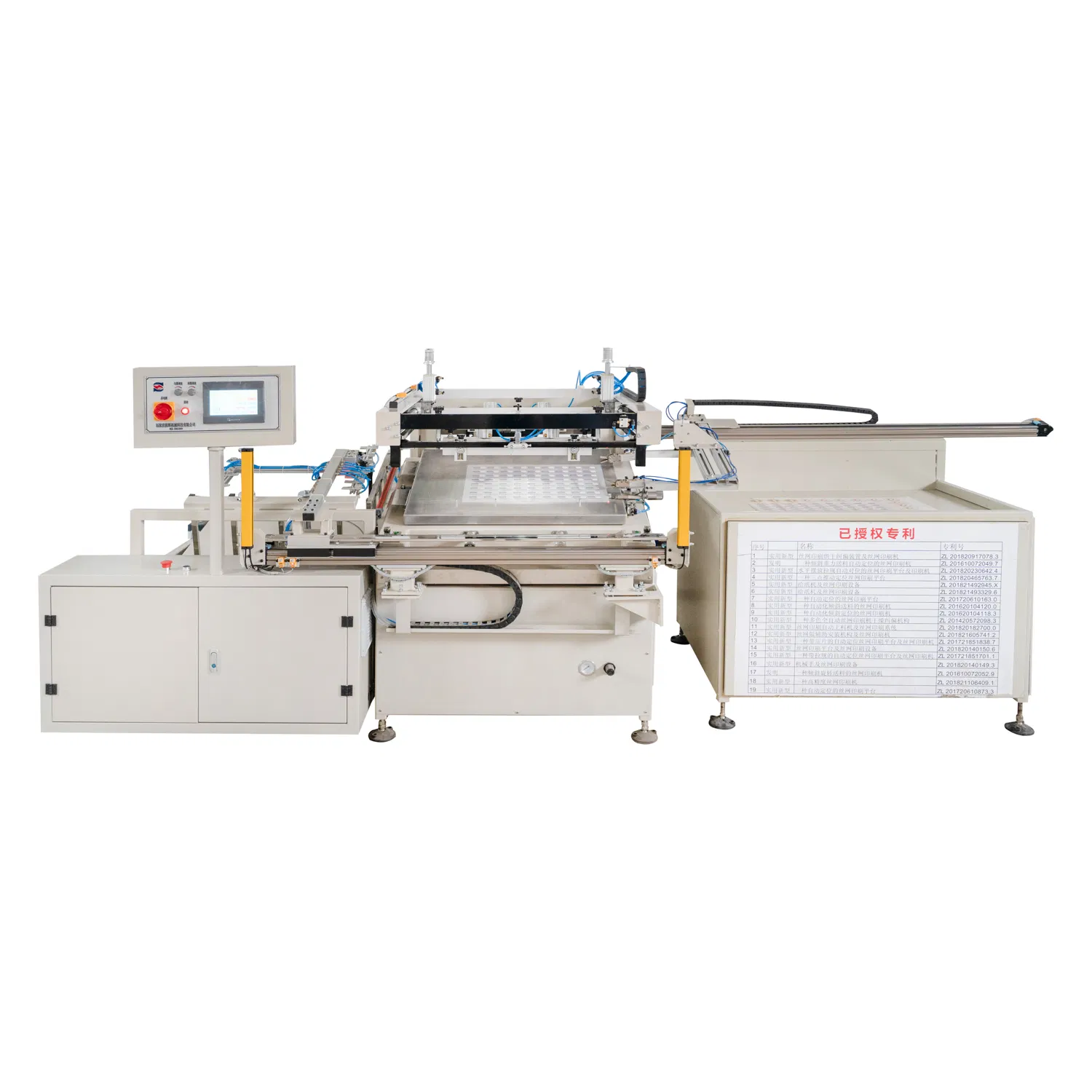

HY-Z57 Single Sheet Automatic Screen Printing Machine

A new model that replaces the hinged semi-automatic screen printing machine, and realizesautomatic screen printing with automatic feeding, automatic alignment, automatic printing, and automatic reclaiming;The Chinese man-machine interface is simple and easy to learn, which not only reducen be equipped with tunnel drying Dryer, UV light curing machine, paper clip dryer, suitable for transfer of decals, membrane switches, packaging, signs and other industrie.s labor intensity and technical requirements for operators, but also replaces manual work by machine positioning and improves printing stability;It has the advantages of fully automatic and labor saving and the flexibility of a semi-automatic machine in small batches; the original semi-automatic screen plate is used to reduce the cost of replacement.The printing speed is 1000 sheets/hour, and the repeat positioning accuracy is less than 0.05mm.
Fully automatic using PLC and touch control, simple operation, easy to learn, can be equipped with tunnel dryingDryer, UV light curing machine, paper clip dryer, suitable for transfer of decals,membrane switches, packaging, signs and other industries.

Self-adhesive printing machine Packaging, HY-Z57 label, UV varnish, ribbon

Self-adhesive printing machine Packaging, HY-Z57 label, UV varnish, ribbon

Printing technical parameters:

Maximum printing area	500*700 mm
Repeatability	<0.05 mm
Maximum frame size	800*1000 mm
Workbench size	690*812 mm
Print thickness	0~1 mm
Maximum printing speed	1000 pcs /h
Squeegee skewness	0~30
Screen vertical and horizontal adjustment	+- 5 mm

Dynamic parameter:

Power supply	3N-50HZ 380V 3KW
Air source pressure(MPa)	0.4~0.6 MPa

Dimensions and weight:

Dimensions L W H(mm)	200015001600 mm
Machine weight (kg)	600kg

Automatic screen printing machine process:
Raw materials---Automatic feeding machine (double-sided dust removal, tearing off protective film, static removal)---Automatic printing machine (automatic punching, printing, quality inspection,Automatic feeding)---Automatic oven---Automatic rewinding---Die-cutting, cutting/cutting---finished product.
Automatic feeding, printing, drying, and receiving, one-stop computer program control is completed, and the degree of automation is extremely high. Save labor and greatly improveproduction efficiency.

Company profile:

Shijiazhuang Shengshi Machinery Technology Co., Ltd. is a company specializing in the production and sales of full-automatic and semi-automatic plane screen printing machines. The technicians include experienced engineers engaged in the design and production of screen printing press since the early 1990s, as well as newly graduated new technicians with high education. It has embarked on a scientific and technological line dedicated to scientific research and innovation. At present, the company has more than 20 patents for invention and utility model of silk screen printing machine, and new patents are under application. The automaton independently developed by our company not only realizes automatic feeding and reclaiming, but also can automatically complete accurate alignment printing by the machine, which is comparable to the expensive CCD machine. The new concept of automatic screen printing machine fills the technical gap and solves the problem of shortage of skilled workers. Since entering the market, it has triggered an upsurge of printing equipment upgrading, which is favored by many new and old customers.

At present, the company's products have served customers in Thailand, Vietnam and India. In 2019, the company will bring its more mature products and services to make exquisite products for silk screen printing enterprises in more countries.

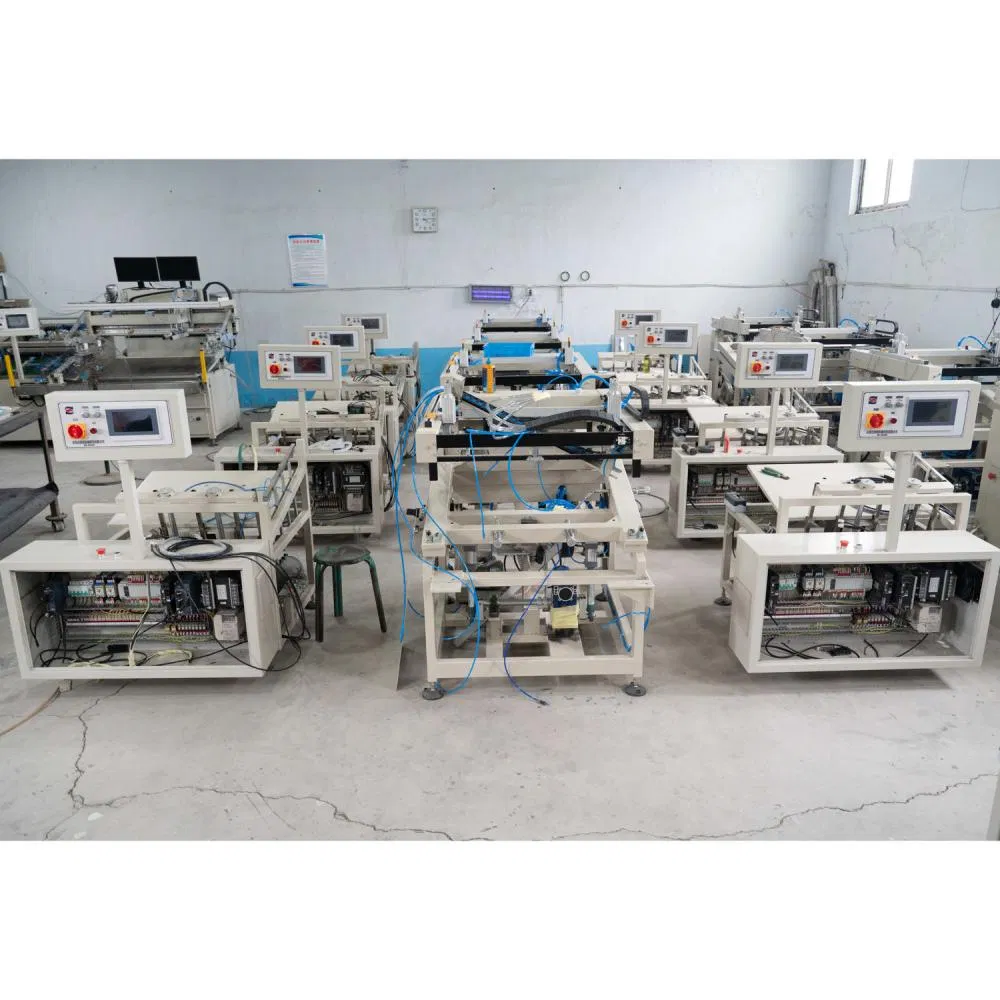

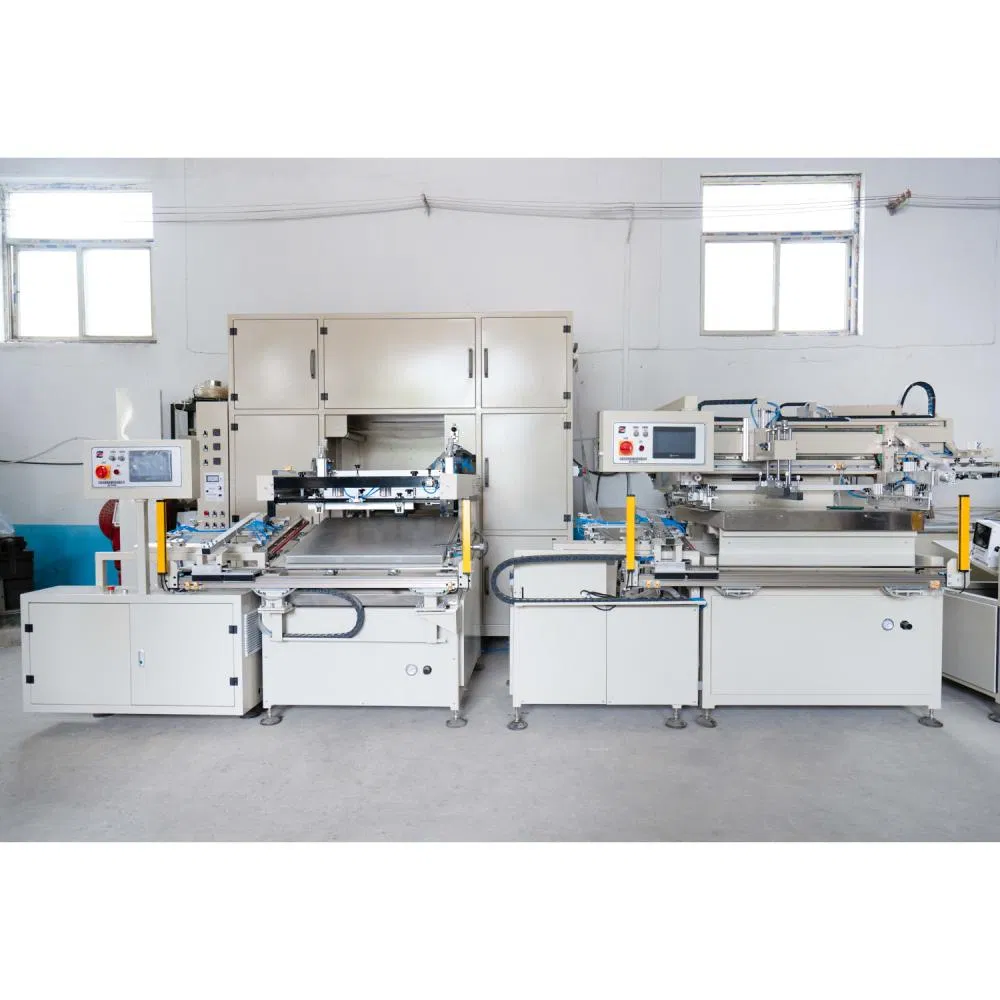

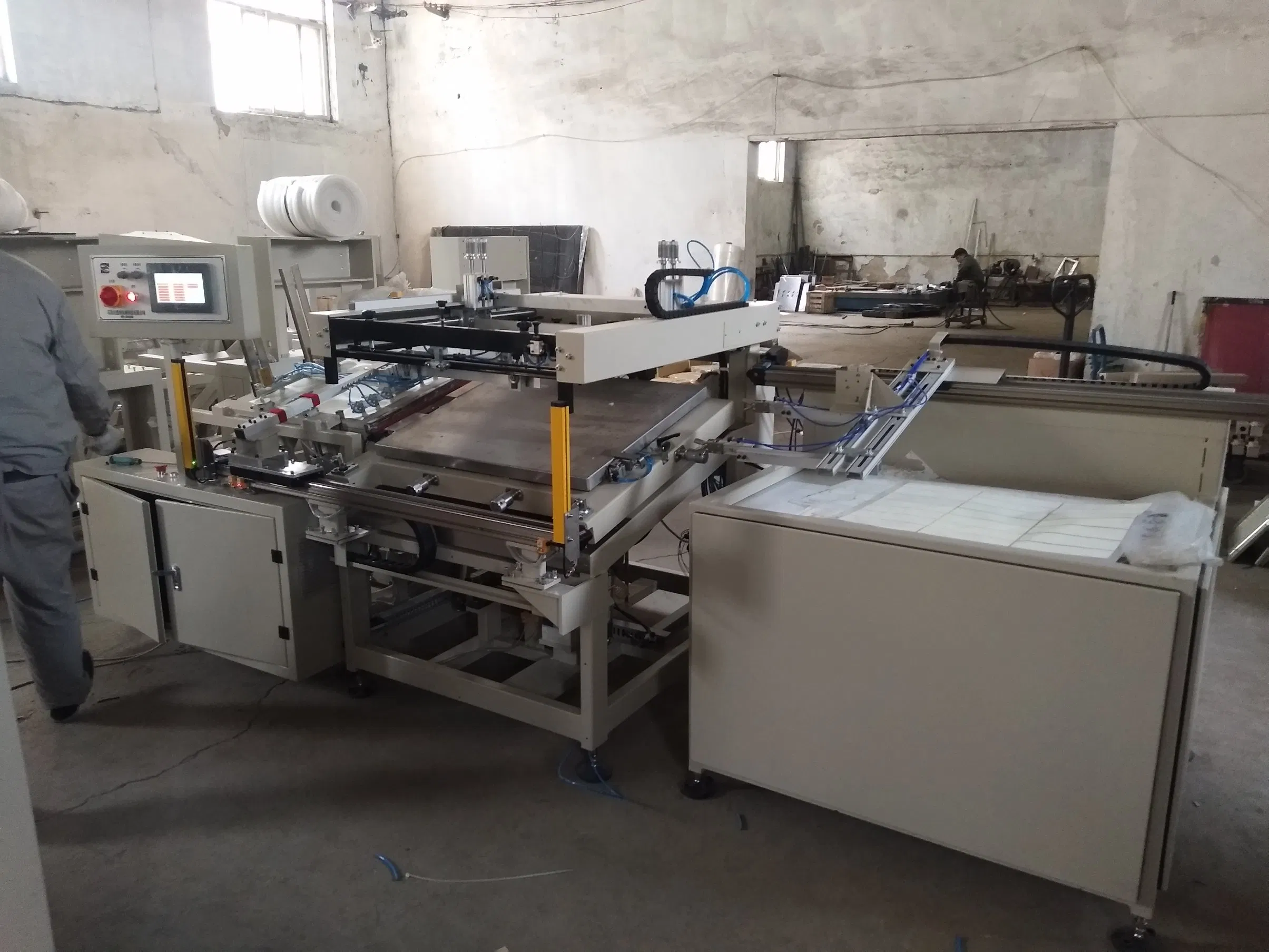

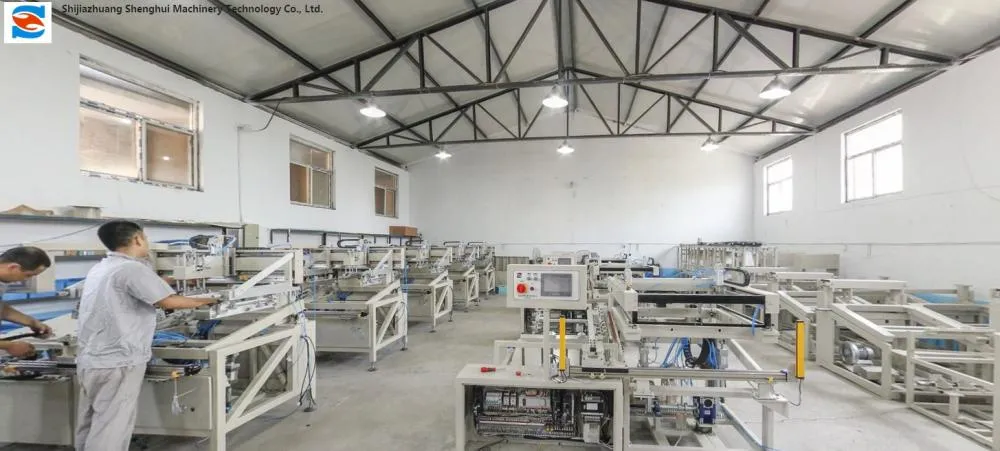

Factory photos:

Self-adhesive printing machine Packaging, HY-Z57 label, UV varnish, ribbon

Print Sample details:

Self-adhesive printing machine Packaging, HY-Z57 label, UV varnish, ribbon

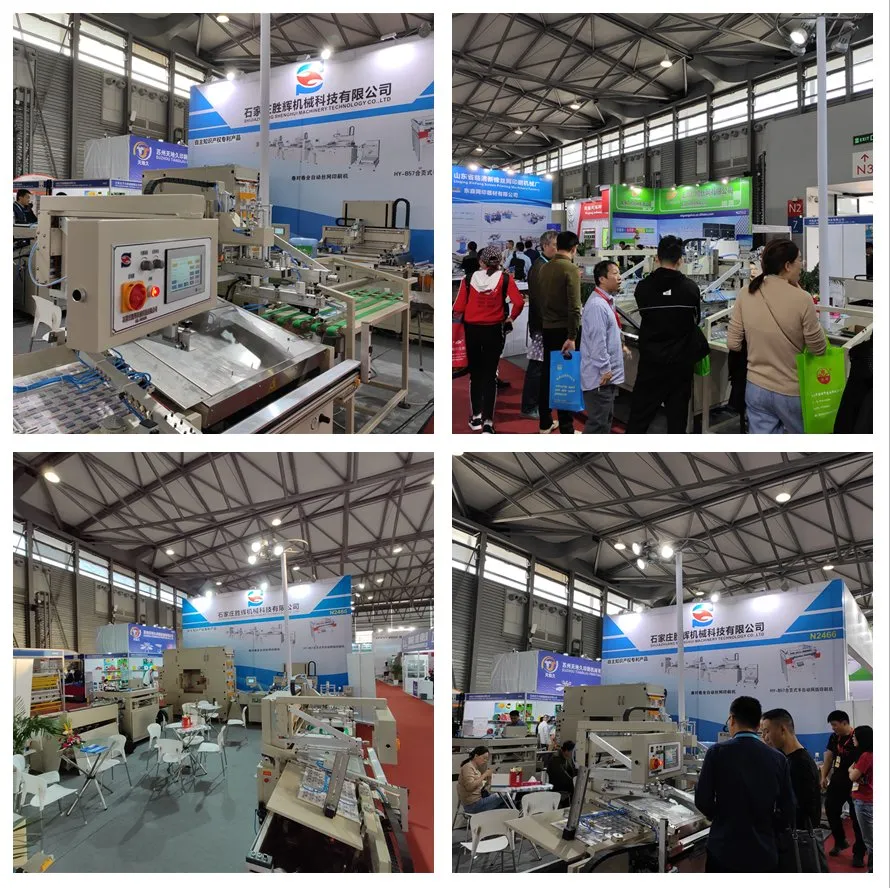

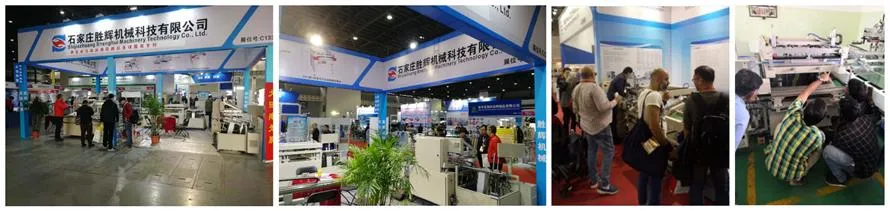

Exhibition:

Self-adhesive printing machine Packaging, HY-Z57 label, UV varnish, ribbon

Packing:

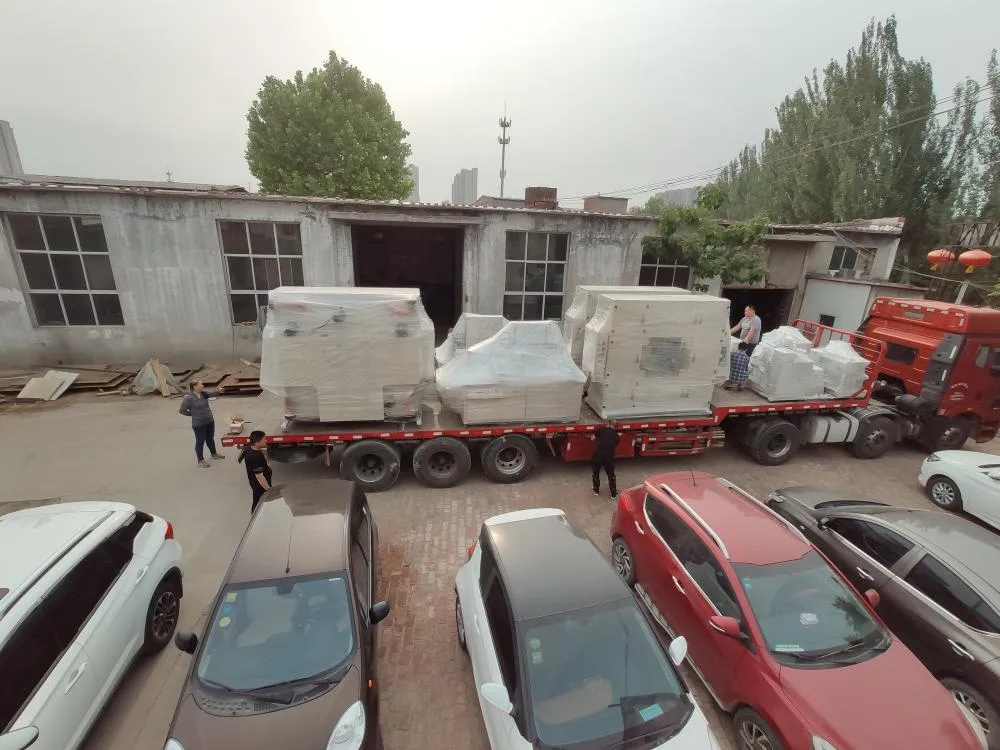

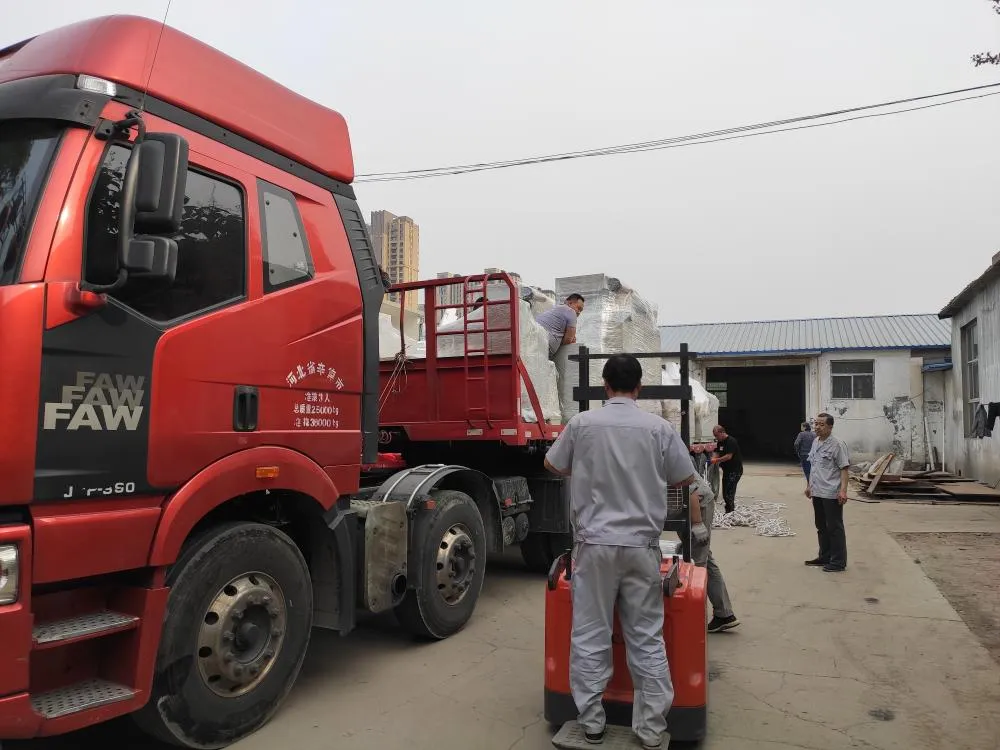

Transportation process:

Self-adhesive printing machine Packaging, HY-Z57 label, UV varnish, ribbon

Certificate:

Self-adhesive printing machine Packaging, HY-Z57 label, UV varnish, ribbon

FAQ:

Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color,
thickness, quantity, etc.

Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment. Set research, design,
production, development, sales in one, to "practical, innovative" for the purpose, to "integrity,
pragmatic" as the principle, with exquisite design and perfect technical support to serve the majority
of customers.

Q:What's your MOQ?
A: One set.

Q:What`s the price term and payment method?
A:We usually use FOB,CIF
Payment method : 100% advance payment by T/T after contract signed,Western Union, or other payment method.

Q:Do you provide samples?
A:No, because the machine is too big and too heavy,so no samples are provided.
