Wholesale Desktop Vacuum Serigrafia Machine
Wholesale Desktop Vacuum Serigrafia Machine InstructionThe desktop machine is with vacuum table, adopt Vacuum generator for strong adsorption,have no noise, strong adsorption,with small size, fast running, stable working, high precision, can form production line in small workshop,special for printin......
Send Inquiry
Product Description
Wholesale Desktop Vacuum Serigrafia Machine
Instruction
The desktop machine is with vacuum table, adopt Vacuum generator for strong adsorption,have no noise, strong adsorption,
with small size, fast running, stable working, high precision, can form production line in small workshop,
special for printing any thin products, like film, PVC, PET, paper etc.
Parameter
1. Controlled by microcomputer system, simple operation
2. High quality aluminum alloy makes machine solid and light
3. Two column lift structure, stable and high accuracy printing
4. Constant pressure device of the ink cover blade, stable printing pressure
5. The angle of scraper and ink covering blades can be adjusted randomly
6. Worktable can adjusted left/right, front/back
7. Frame can adjusted left/right, front/back, up/down
8. Vacuum stainless stable, adsorb any kinds of thin film products
9. Equipped with CEC shock absorber, precise and stable printing
10. Action model option: Automatic/semi-automatic/manual
11. Scraper pressure control: Constant pressure regulator
12. Start up model: panel/pedal
Specification

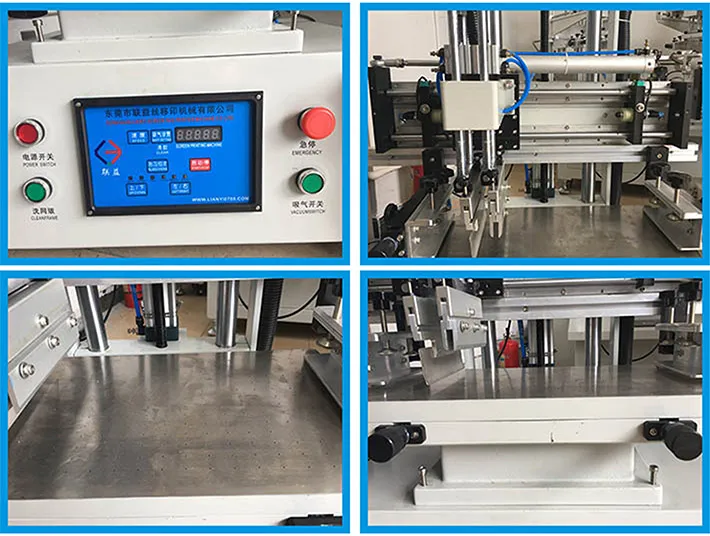

Machine Display
Company Brief

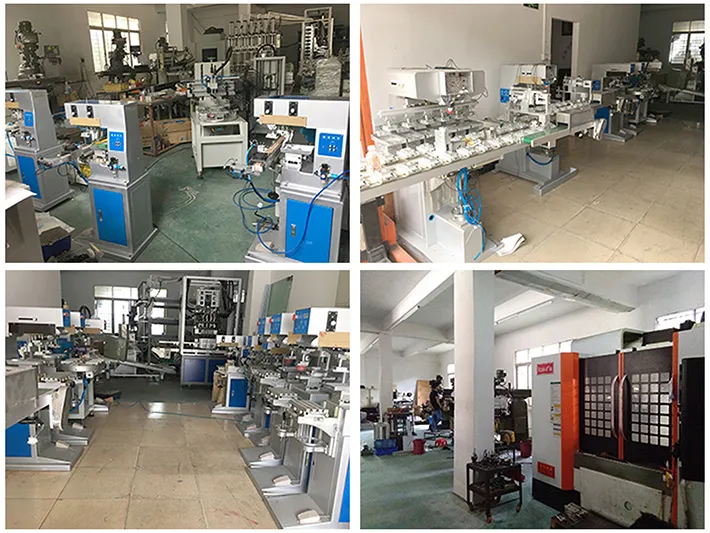

New Factory
Oversea Services
FQA
Instruction
The desktop machine is with vacuum table, adopt Vacuum generator for strong adsorption,have no noise, strong adsorption,
with small size, fast running, stable working, high precision, can form production line in small workshop,
special for printing any thin products, like film, PVC, PET, paper etc.
Parameter
1. Controlled by microcomputer system, simple operation
2. High quality aluminum alloy makes machine solid and light
3. Two column lift structure, stable and high accuracy printing
4. Constant pressure device of the ink cover blade, stable printing pressure
5. The angle of scraper and ink covering blades can be adjusted randomly
6. Worktable can adjusted left/right, front/back
7. Frame can adjusted left/right, front/back, up/down
8. Vacuum stainless stable, adsorb any kinds of thin film products
9. Equipped with CEC shock absorber, precise and stable printing
10. Action model option: Automatic/semi-automatic/manual
11. Scraper pressure control: Constant pressure regulator
12. Start up model: panel/pedal
Specification
| Model No | LY-2030C |
| Worktable size | 250*450mm |
| Max. printing area | 200*300mm |
| Max frame size | 400*600mm |
| Printing speed | 1200pcs/hr |
| Max height of work piece | 120mm |
| Transverse stroke | 350mm |
| Vertical stroke | 160mm |
| Air pressure | 5~7bar |
| Voltage | 110V/220V 50/60HZ 40W |
| Machine size | 680*770*870mm |
Machine Display
Company Brief
New Factory
Oversea Services
FQA
