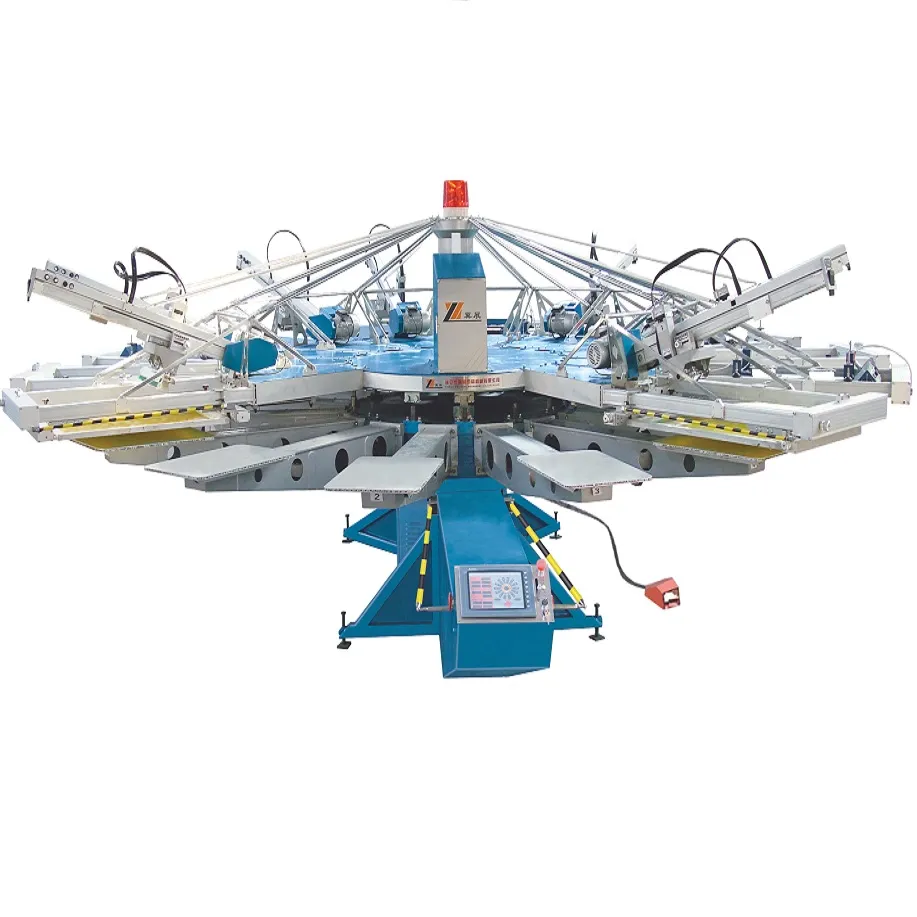

Yh Series T-Shirt Automatic Screen Printer

Product Description

Automatic Multicolor Screen Printing Machine (Máquina impresora de serigrafia) Yh Series T-Shirt Automatic Screen Printer

YH series is our high-tech automatic textile printers. Aimed for higher production

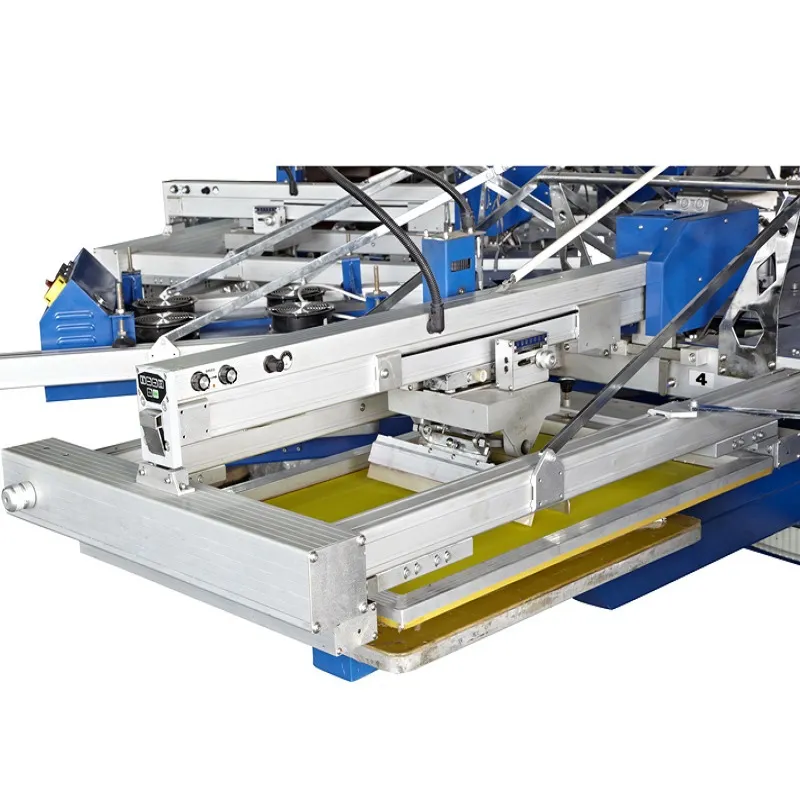

output and faster repay of investments,it's equiped with intellegent micro-processor, high-precise for printing ,electric print head and pneumatic rotatory&lift-drop system.Easy changeover for squeegee/floodbar,and theycan be adjusted freely and independently. YH series is available in 4, 6, 8, 10, 12, and 14-color models with 500×700mm maximum print area, all of which can print on Tshirts, sleeves, fabric sheets & bags etc.

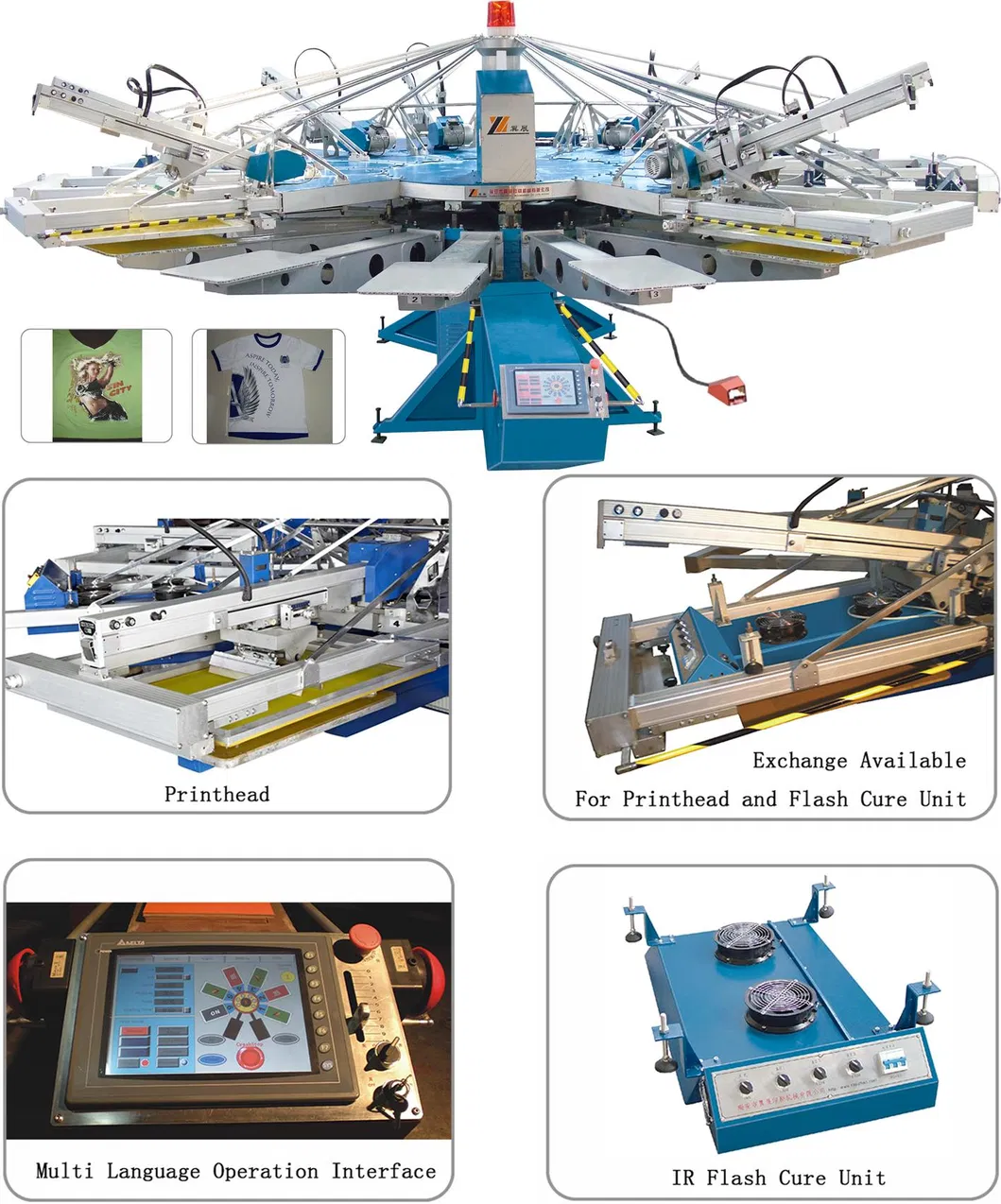

Features:

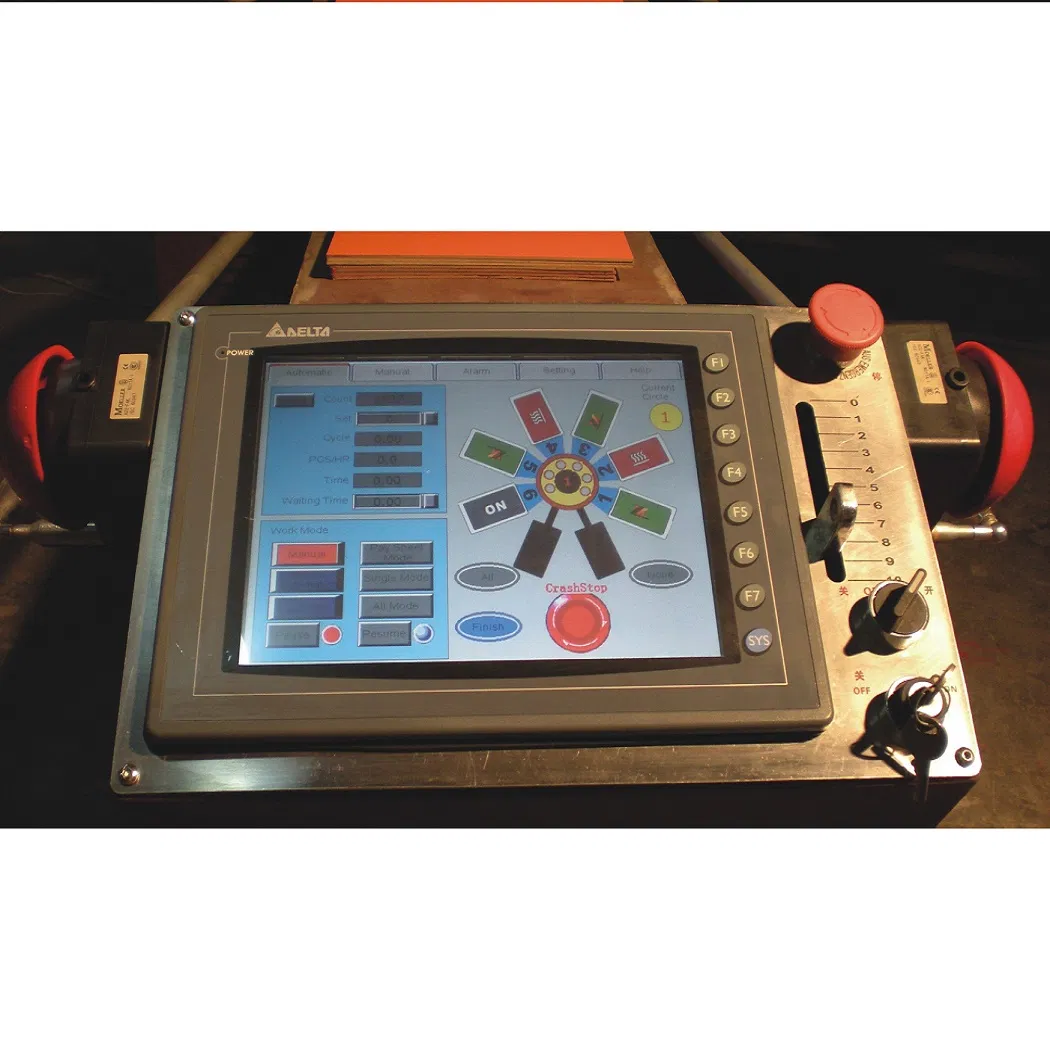

1.Full colored display gives a vividly visual guide
2.Servo drive combines higher print speeds with superior smoothness, consistency, and longevity
3.High speed pneumatic drive to replace pallet function.
4.Pallet can rotate at clockwise and anticlockwise
5.The distance from frame to pallet can ben adjusted precisely.
6.The machine can assemble print head ,dryer ,flocking print head acoording to requestment
7.Skipshirt smash button, located on both sides of the touch screen, allows operator to avoid printing on the empty pallets as they leave
8.Double-station indexing capability increases printing quality

Sample :
Yh Series T-Shirt Automatic Screen Printer

Technical Parameter:

Model	YH-104/8	YH-156/10	YH-158/12	YH-1510/14	YH-2012/16	SPA-2018/22
Print Color/Station	4-6/8	4-8/10	6-10/12	6-12/14	6-14/16	4-18/22
Maz. Image Area	500× 700mm	500× 700mm	500× 700mm	500× 700mm	500× 700mm	500× 700mm
Pallet Size	600× 800mm	600× 800mm	600× 800mm	600× 800mm	600× 800mm	600× 800mm
Frame Size	700× 1000mm	700× 1000mm	700× 1000mm	700×1000mm	700× 1000mm	700× 1000/mm
Maz. Air Consumption	8P24.71L/100mm (piston move)	8P24.71L/100mm (piston move)	8P30.44L/100mm (piston move)	8P30.44L/100mm (piston move)	8P31.51L/100mm (piston move)	8P34.91L/100mm (piston move)
Max. Output	900pcs/h	900pcs/h	900pcs/h	900pcs/h	900pcs/h	900pcs/h
Power	2.9Kw	4.4Kw	4.4Kw	4.4Kw	5.5Kw	5.5Kw
Each Dryer Power	13.5Kw	13.5Kw	13.5Kw	13.5Kw	13.5Kw	13.5Kw
Size	Φ4600× 1650/mm	Φ5600× 1850/mm	Φ5700× 1850/mm	Φ5800× 1850/mm	Φ6000× 1850/mm	Φ7600× 1850/mm
Weight	2200Kg	2550Kg	2700Kg	3000Kg	3300Kg	4200Kg

FAQ:

Q1:We are interested in the screen printing machine,Could you quote the latest price to us?

A1: In order to recommend the suitable machine for you ,please provide following information before we quote price:

1.How many color to print will you need?

2.What's your max printing size? (Such as 500x700mm or biger or smaller)

3.What's the capacity per hour you request? (Such as 900pcs/h)

Q2:What's the MOQ, Delivery time, and payment terms?

A2: 1. MOQ: 1 set

2. Delivery time: 20 workdays after receiving T/T 30% payment deposit

3. Payment Term: T/T 30% as deposit, T/T 70% before shipment or L/C at sight

Our Service:

1. Warranty

1 year limited warranty after installation.If the spare parts is broken in the warranty

period , we will send a free replacement parts to you .

2. Installation and Training

We can send 1-2 engineers to buyers factory to install and set up the machines and

training, but all the charges for the engineers should be paid by buyer.

3. Quotation

The quotation is available in 60 days

Company Information
About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea's market and domestic.
